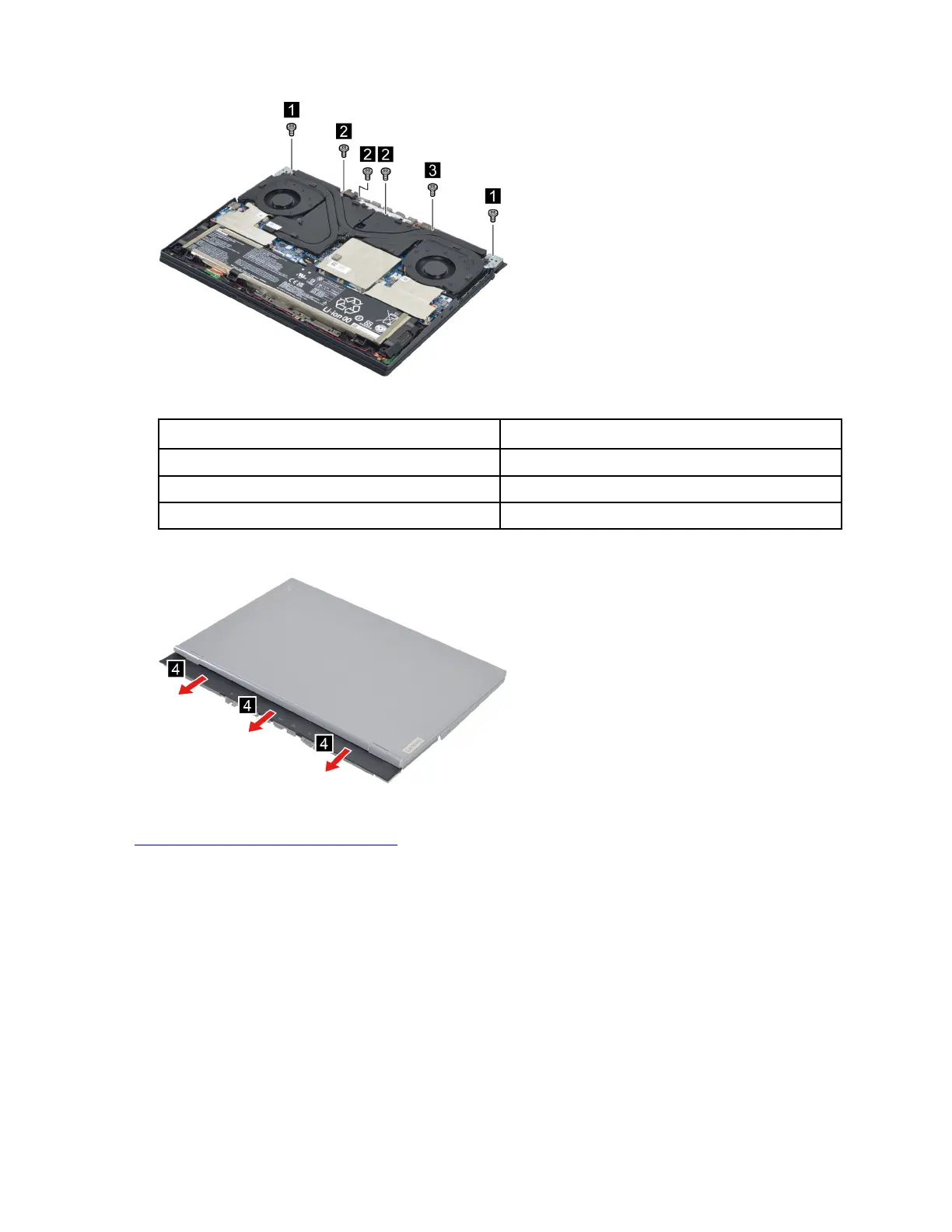

Figure 28. Remove six screws
Screw specifications
Number of screws
M2 x L6.0 1
M2.5 x L7 2
M2 x l4.5 3
Step 3. Remove the strip cover.
Figure 29. Remove the strip cover
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Strip cover
Remove the LCD module
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 33
“Remove the solid-state drive (SSD) plates” on page 34
“Remove the thermal module” on page 42
“Remove the strip cover” on page 45
Step 1. Disconnect the EDP cable from the system board and then remove four screws.
46
Hardware Maintenance Manual
