Remove the I/O board
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 33
“Remove the solid-state drive (SSD) plates” on page 34
“Remove the thermal module” on page 42
Step 1. Disconnect the I/O board cable from the I/O board and then remove the I/O board.

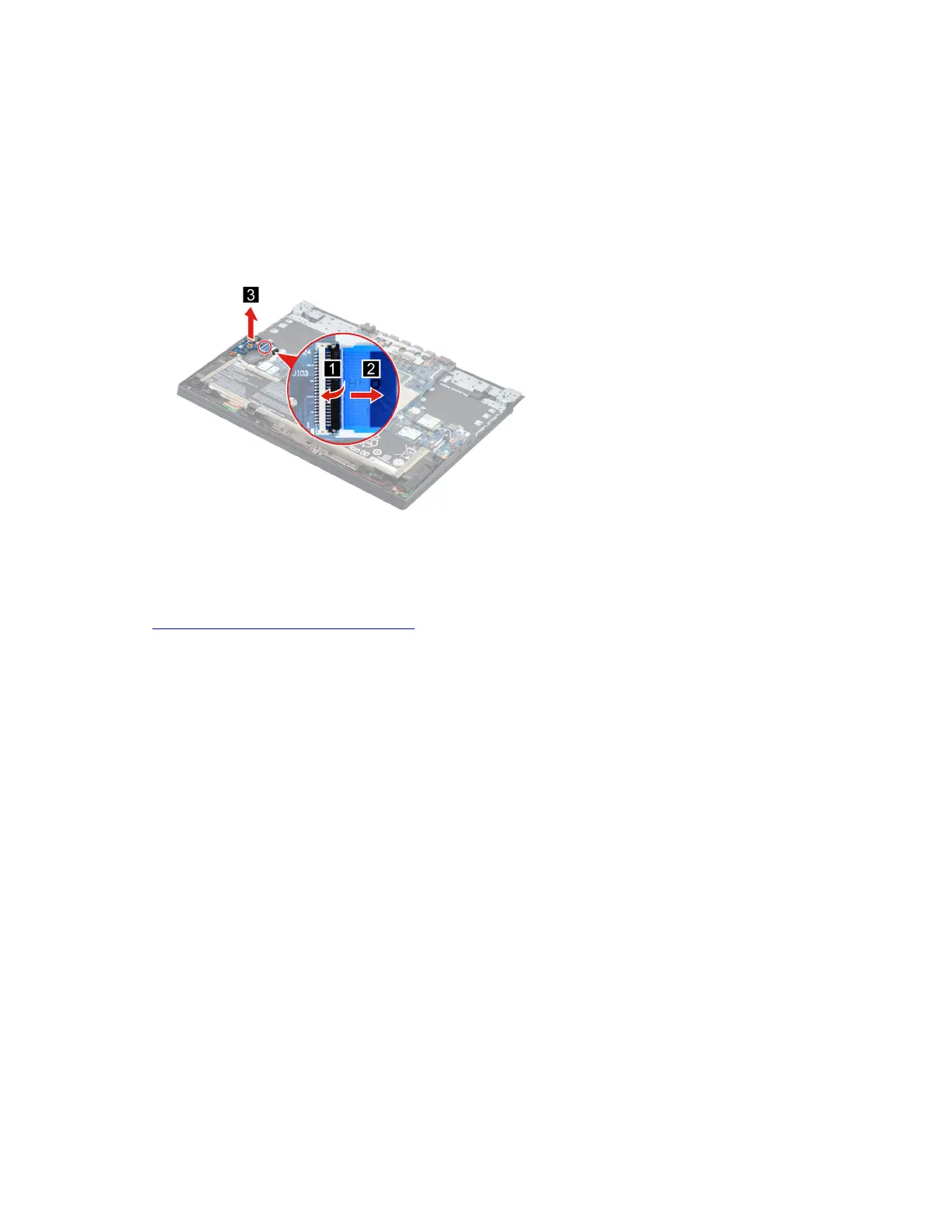

Figure 23. Remove the I/O board
Note: Ensure that the switch button and the shutter button are on or off at the same time when replacing the
I/O board. Otherwise, the I/O board may be damaged.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
I/O board
Remove the system board and the I/O board cable
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 33
“Remove the solid-state drive (SSD) plates” on page 34
“Remove the battery pack” on page 34
“Remove the solid-state drive (SSD)” on page 35
“Remove the Wi-Fi card” on page 37
“Remove the memory module” on page 38
“Remove the DC-in bracket” on page 39
“Remove the CMOS battery” on page 41
“Remove the thermal module” on page 42
Step 1. Disconnect cables connected to the system board.
Chapter 4. Removing a FRU or CRU 43
