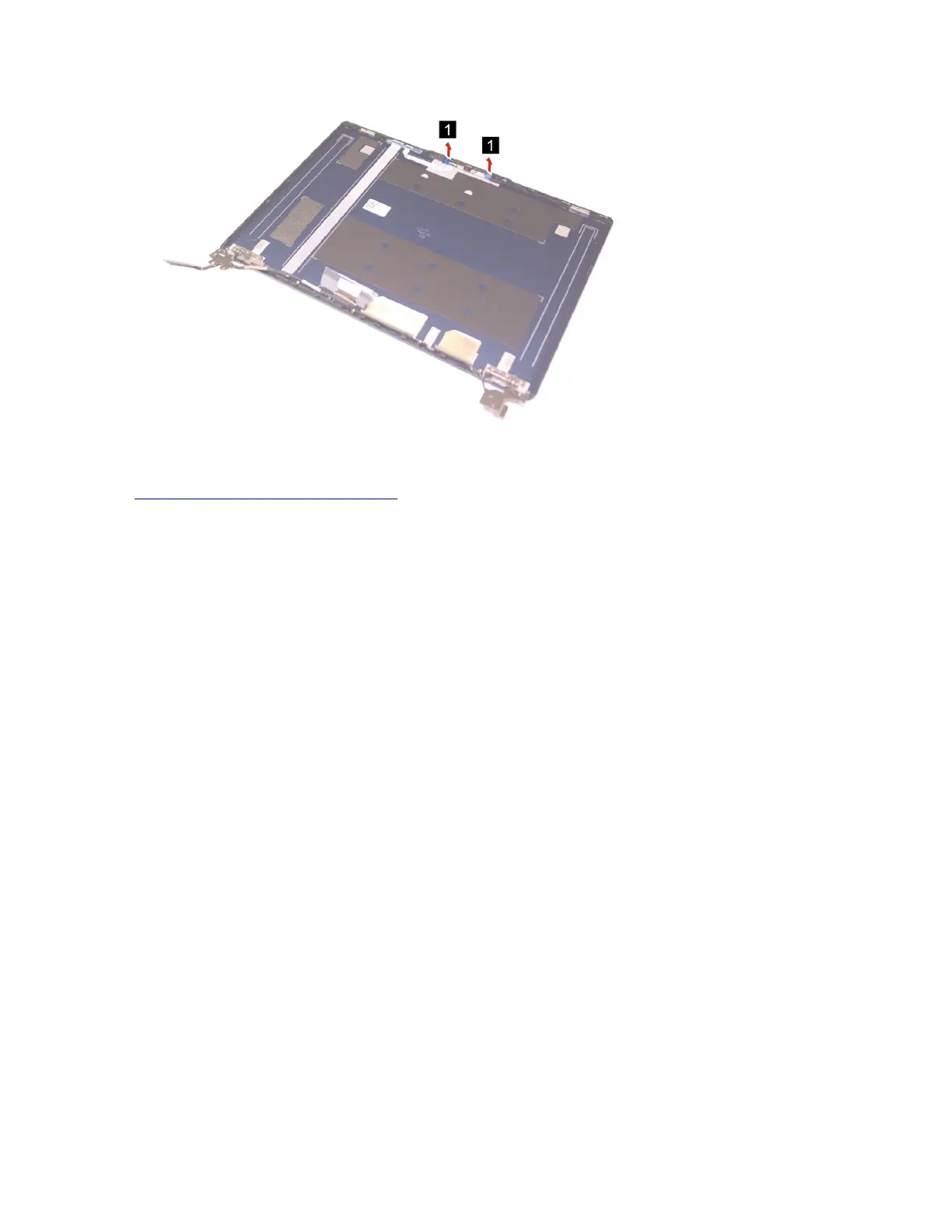

Figure 59. Remove the microphone rubbers
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Microphone rubbers
Remove the camera board
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the LCD unit” on page 55
“Remove the hinge cover” on page 60
“Remove the LCD bezel” on page 61
“Remove the LCD panel” on page 63
“Remove the microphone rubbers” on page 65
Step 1. Disconnect the camera cable from the camera board and then remove the camera board.
66
IdeaPad Slim 5 (14″, 8), IdeaPad Slim 5i (14″, 8), IdeaPad Slim 5 (16″, 8), and IdeaPad Slim 5i (16″, 8) Hardware Maintenance
Manual
