“Remove the hinge cover” on page 60
“Remove the LCD bezel” on page 61
“Remove the LCD panel” on page 63

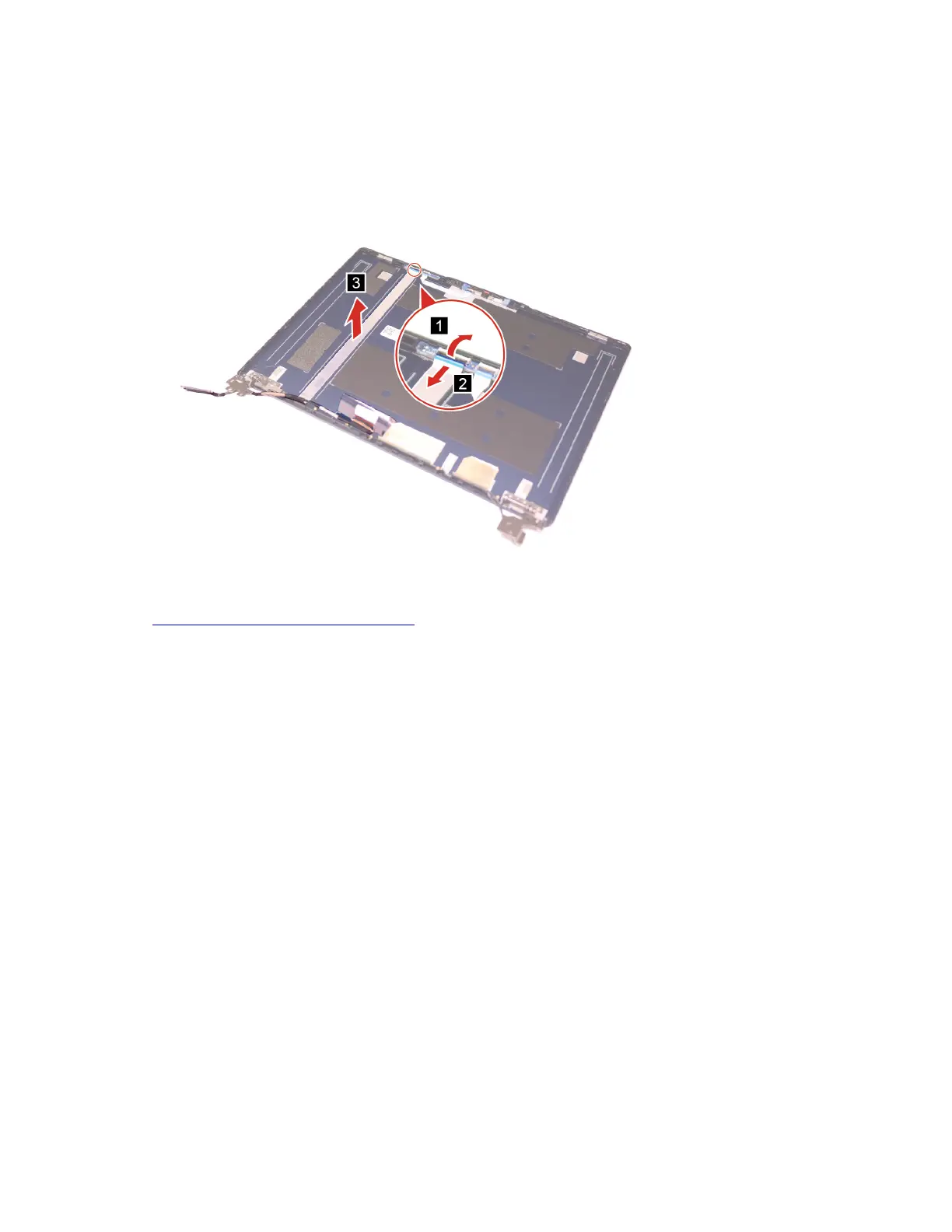

Step 1. Open the latch and remove the EDP cable from the LCD panel.
Figure 58. Remove the EDP cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
EDP cable
Remove the microphone rubbers
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the LCD unit” on page 55
“Remove the hinge cover” on page 60
“Remove the LCD bezel” on page 61
“Remove the LCD panel” on page 63
Step 1. Remove the microphone rubbers from the camera board.
Chapter 4. Removing a FRU or CRU 65
