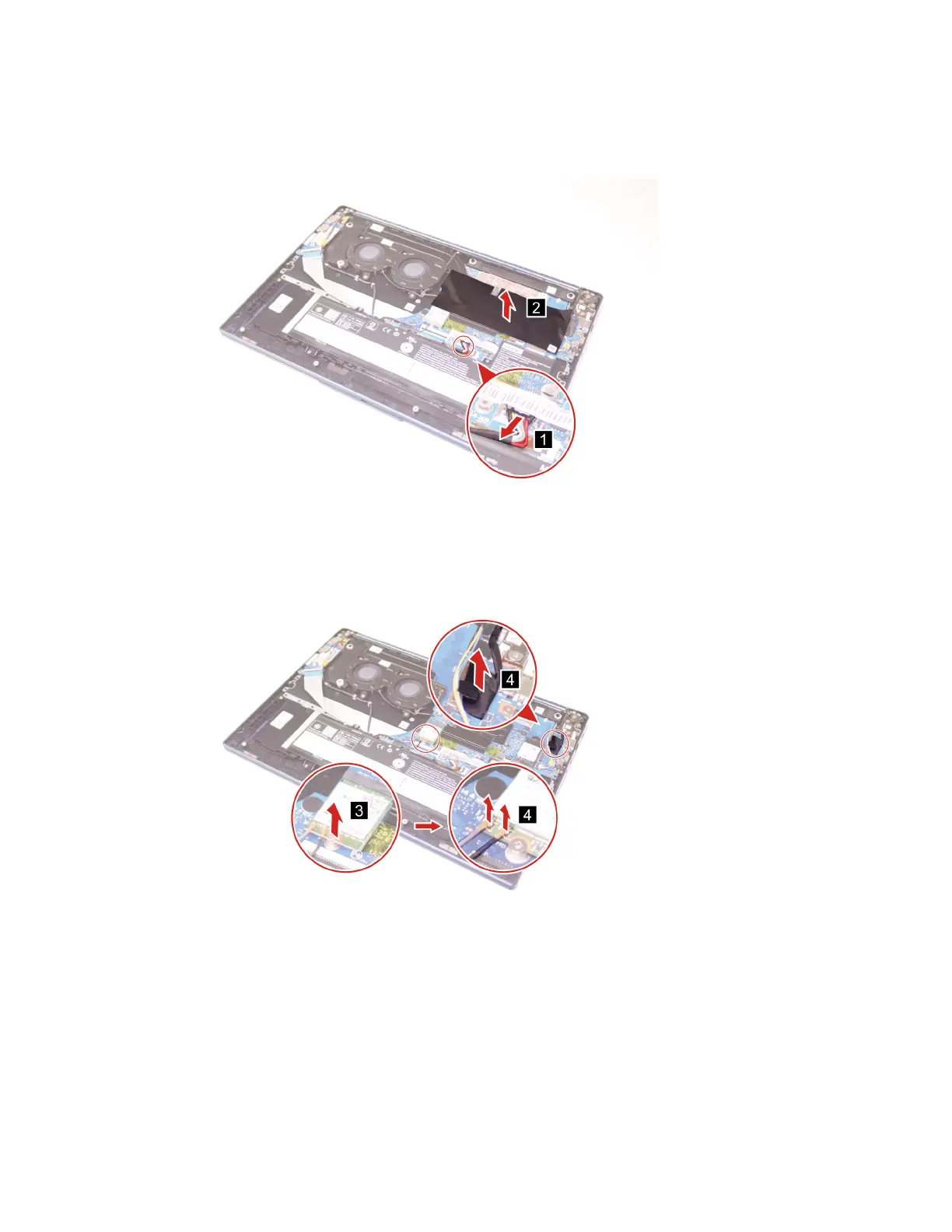

Step 1. Disconnect the battery pack cable from the system board. Then, peel off the system board mylar.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Figure 48. Disconnect the battery pack cable
Step 2. Disconnect antennas and EDP cable from the system board.
Figure 49. Disconnect antennas and EDP cable
Step 3. Remove six screws and open the hinges. Then, rotate the LCD unit to an angle of about 90 degrees
and place the computer on a flat surface.
58
IdeaPad Slim 5 (14″, 8), IdeaPad Slim 5i (14″, 8), IdeaPad Slim 5 (16″, 8), and IdeaPad Slim 5i (16″, 8) Hardware Maintenance
Manual
