Heat sink
Remove the I/O board
Remove the I/O board (for 14–inch models)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board. Remove three screws and open the
hinge.

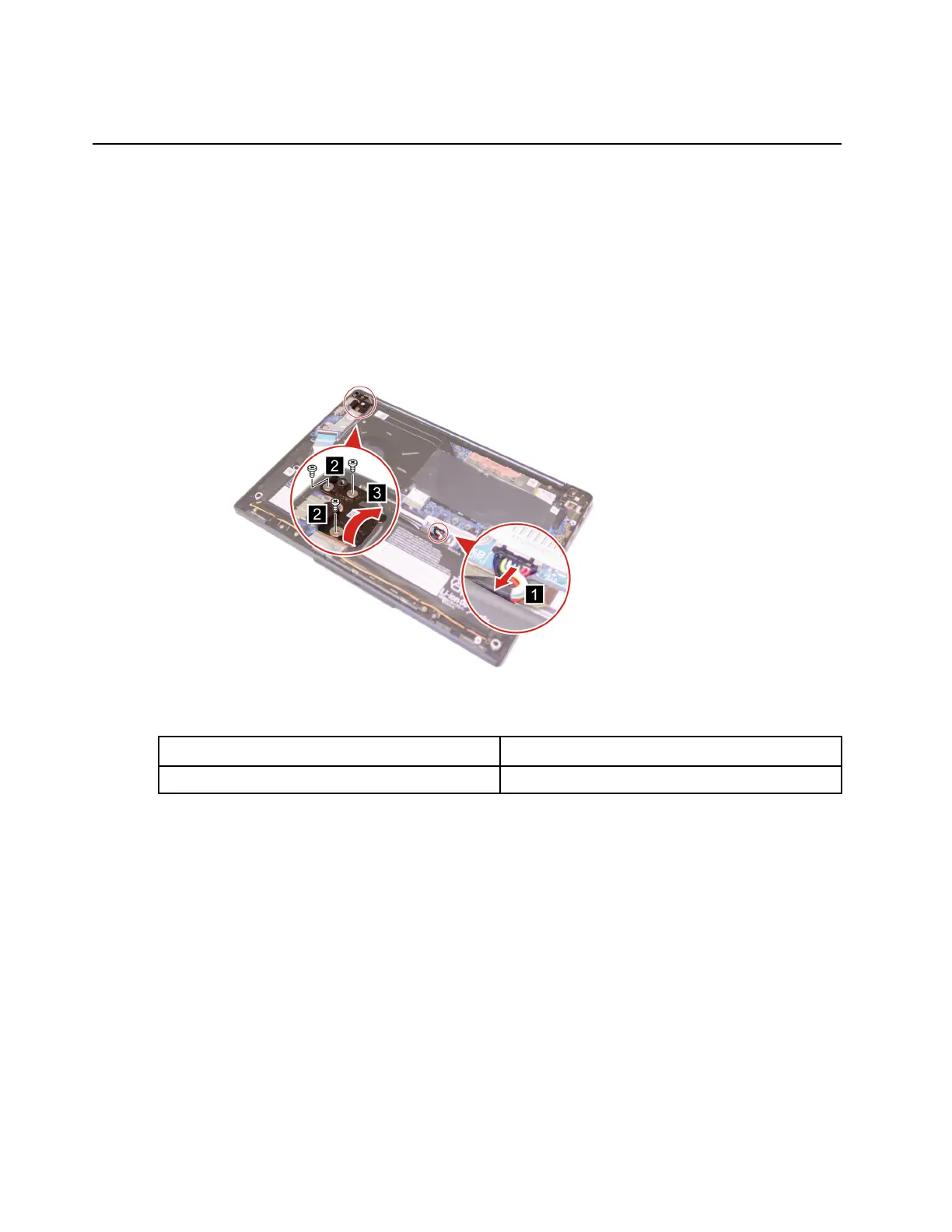

Figure 24. Disconnect the battery pack cable, remove three screws and open the hinge.
Screw specifications
Number of screws
M2.5 × L4 3
Step 2. Disconnect the I/O board cable from the I/O board. Remove one screw and then remove the I/O
board.
42
IdeaPad Slim 5 (14″, 8), IdeaPad Slim 5i (14″, 8), IdeaPad Slim 5 (16″, 8), and IdeaPad Slim 5i (16″, 8) Hardware Maintenance
Manual
