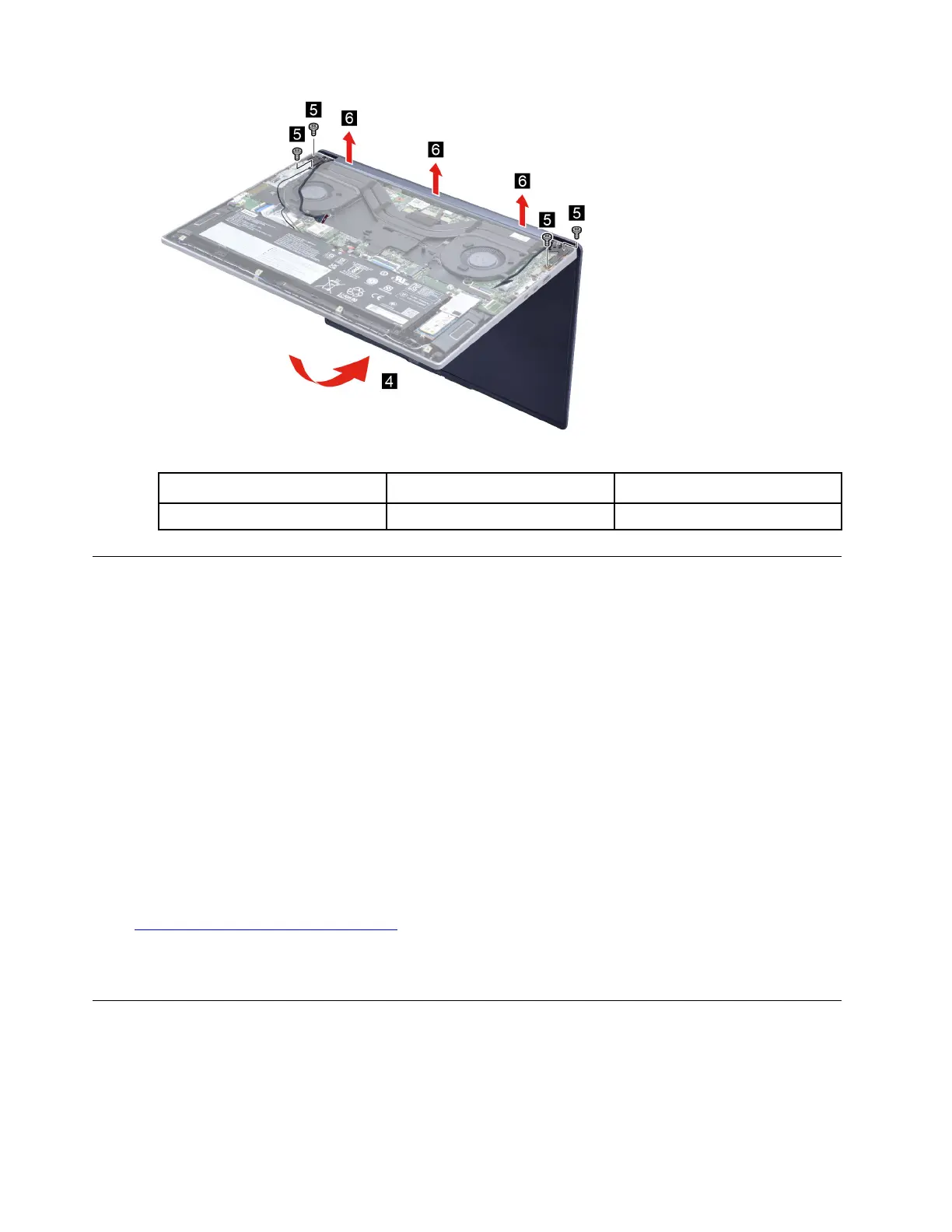

Figure 27. Remove the LCD module
Screw specifications Number of screws Torque force (kgf.cm)
M2.5 x L5 4 2.35±0.15
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the battery pack and battery pack cable” on page 29
“Remove the solid-state drive (SSD) plate” on page 30
“Remove the solid-state drive (SSD)” on page 30
“Remove the Wi-Fi card” on page 31
“Remove the Type-C bracket” on page 32
“Remove the heat sink” on page 33
“Remove the fans” on page 33
“Remove the I/O board” on page 34
“Remove the system board and the I/O board cable” on page 37
“Remove the LCD module” on page 39
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
Disassemble the LCD module (for LCD panels only)
The LCD module as a whole is not a FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
40
Hardware Maintenance Manual
