Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
I/O board
I/O board mylar
Remove the system board and the I/O board cable
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the battery pack and battery pack cable” on page 29
“Remove the solid-state drive (SSD) plate” on page 30
“Remove the solid-state drive (SSD)” on page 30
“Remove the Wi-Fi card” on page 31
“Remove the Type-C bracket” on page 32
“Remove the heat sink” on page 33
“Remove the fans” on page 33

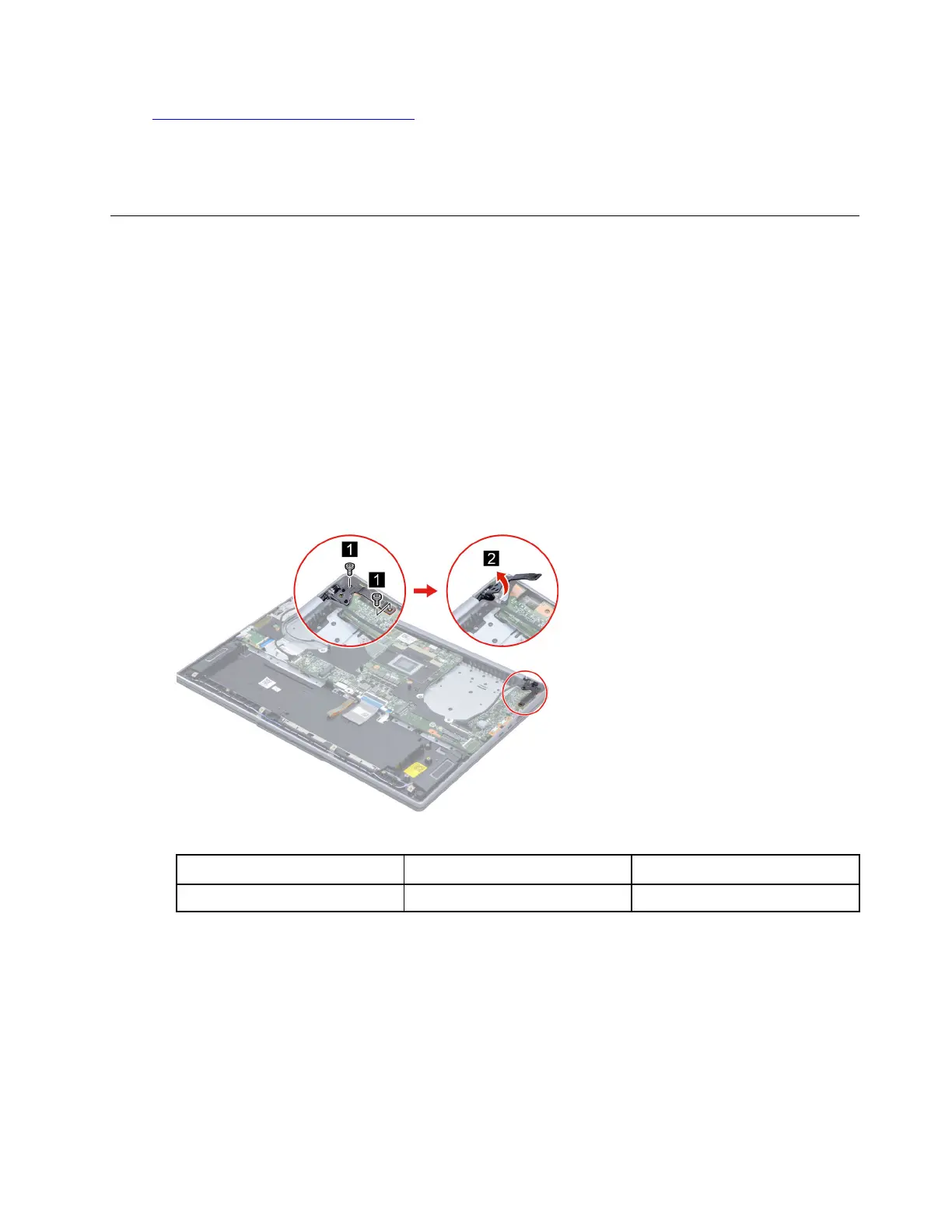

Step 1. Remove two screws and then open the hinge.
Figure 22. Open the hinge
Screw specifications Number of screws Torque force (kgf.cm)
M2.5 x L5 2 2.35±0.15
Step 2. Peel back the I/O board mylar.
Chapter 4. Removing a FRU or CRU 37
