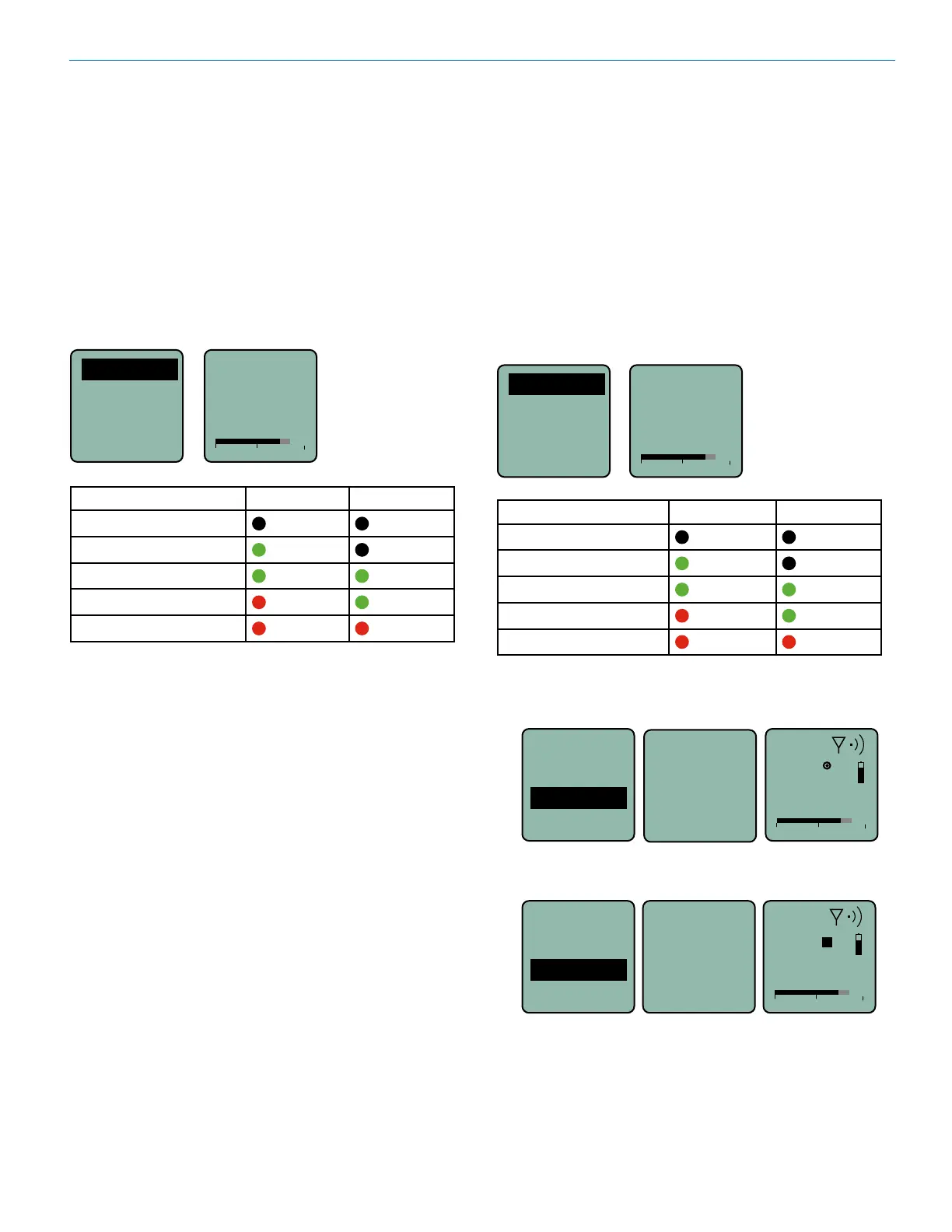

Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 7
Transmitter Operating
Instructions
• Install battery(s)
• Turn power on in the Standby mode (see previous
section)
• Connect microphone and place it in the position
where it will be used.
• Have the user talk or sing at the same level that
will be used in the production, and adjust the input
gain so that the -20 LED blinks red on louder
peaks.
Gain
Freq
Rolloff
Compat
-40
-20
0
Gain
25
Use the UP and DOWN
arrow buttons to adjust
the gain until the -20
LED blinks red on
louder peaks
Signal Level -20 LED -10 LED
Less than -20 dB
O O
-20 dB to -10 dB
Green O
-10 dB to +0 dB
Green Green
+0 dB to +10 dB
Red Green
Greater than +10 dB
Red Red
• Set the frequency and compatibility mode to match
the receiver.
• Turn the RF output on with the Rf On? item in the
power menu, or by turning the power o and then
back on while holding the power button in and
waiting for the counter to reach 3.
Recorder Operating
Instructions
• Install battery(s)
• Insert microSDHC memory card
• Turn power on
• Format memory card
• Connect microphone and place it in the position
where it will be used.
• Have user talk or sing at the same level that will be
used in the production, and adjust the input gain
so that the -20 LED blinks red on louder peaks
Gain
Freq.
Rolloff
Compat
-40
-20
0
Gain
25
Use the UP and DOWN
arrow buttons to adjust
the gain until the -20
LED blinks red on
louder peaks
Signal Level -20 LED -10 LED
Less than -20 dB
O O
-20 dB to -10 dB
Green O
-10 dB to +0 dB
Green Green
+0 dB to +10 dB
Red Green
Greater than +10 dB
Red Red
• Press MENU/SEL and choose Record from the
menu
A
503.800
-40
-20
0
E
b 19
REC
Files
Format
Record
Gain
RECORD-
ING
• To stop recording, press MENU/SEL and choose
Stop; the word SAVED appears on the screen
SAVED
Files
Format
Stop
Gain
A
503.800
-40
-20
0
E
b 19
To play back the recordings, remove the memory card
and copy the les onto a computer with video or audio
editing software installed.
