Digital IEM Transmitter
Rio Rancho, NM
7
Operating Instructions
IR (infrared) Port
Settings, including frequency, name, limiter, mix mode,
etc. can be transferred to and from the M2T, M2T/E01,
M2T/E02, M2T/E06 transmitter via this port to an IR en-
abled receiver to simplify setup.
USB Port
For rmware updates and connection to Wireless De-
signer Software.
Reset Button
For MCU recovery in the event of an interrupted rmware
update.
Headphone Volume Adjustment
Adjust the headphone volume, and select source with
A1, A2, B1, B2 buttons.
Antenna Output Jacks
Two standard 50 ohm BNC connectors can be used with
whip antennas or coaxial cable connected to remote
antennas.
Dante Ports (optional)
A Dante Digital Audio Network Interface.
Ethernet Port
Used for setup, monitoring and control with Wireless
Designer Software.
Power Inlet
The threaded-locking DC coaxial jack accepts 9-18 VDC
and draws 1.2A maximum.
Quick Sync
Sync an M2R or M2Ra rapidly by utilizing the Channel
Function Buttons. A long (1 second) press of one of the
buttons (A1, A2, B1, or B2) on the front panel initiates
Quick Sync. Two options are available, “SYNC ALL” or
“SPLIT MONO”. The mode is selected prior to sync in
System Settings> Front Panel Setup.
NOTE: See Front Panel Setup for more
instruction on the Quick Sync function.
Power Screens

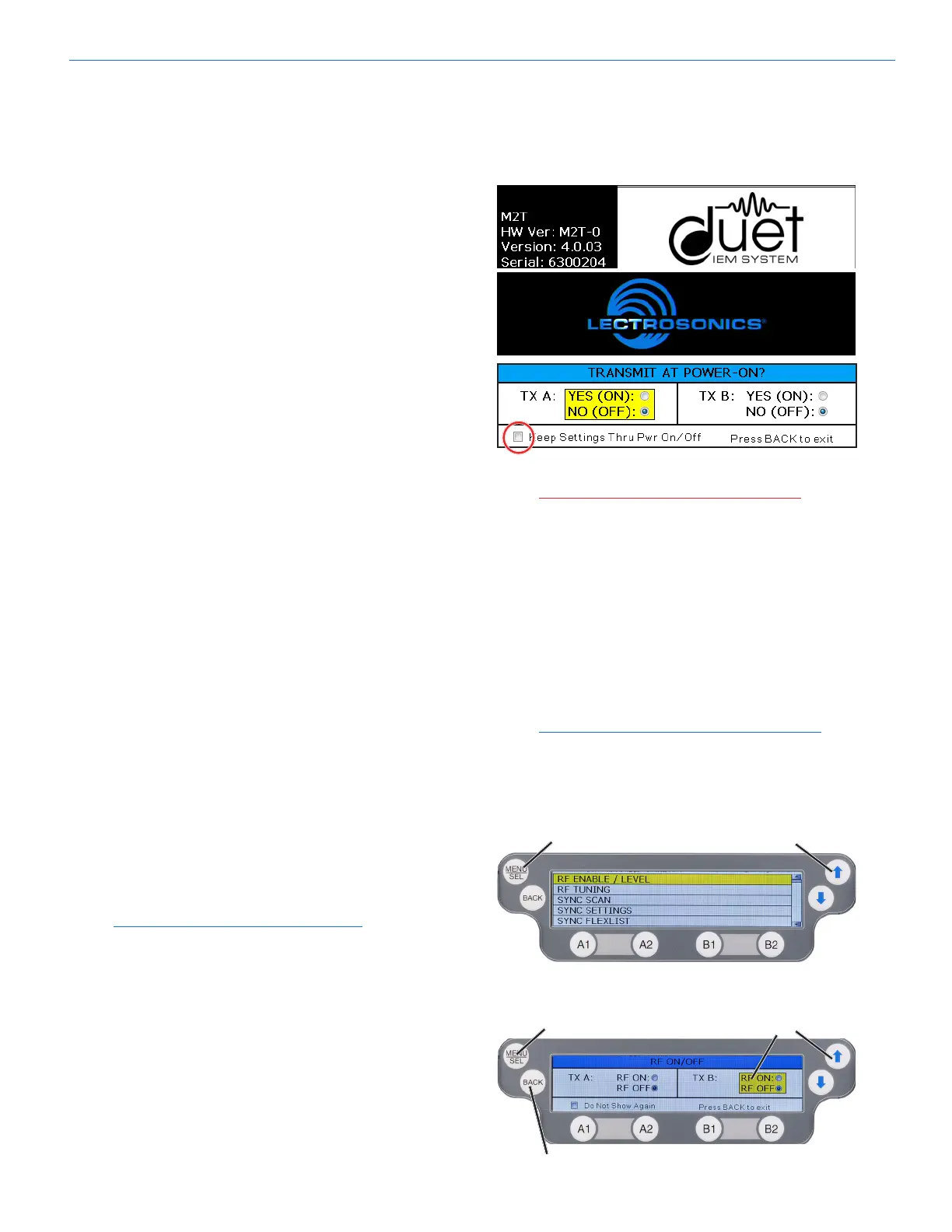

When powering on the M2T there are three screens that
appear in the following order, Duet (showing rmware
versions), the Lectrosonics logo, and RF On/O:
Simultaneous long press of A1/A2 (TX A) or B1/B2 (TX B)
will also enable or disable RF.
WARNING: If RF ON is selected and the
user chooses to “Do Not Show Again” RF
transmissions will be on when the M2T
is powered on and may interfere with
frequencies already in use. This can be reset in
System Settings> FRONT PANEL SETUP.
Navigating the Menus
All Menu setup items are arranged in a vertical list on the
LCD. Press MENU/SEL to enter the menu, then navigate
with the UP and DOWN arrows to highlight the desired
setup item. Refer to the menu map on the following
page.
NOTE: To guarantee chosen parameters are
saved, exit a setup screen BEFORE powering
down the M2T.
Press MENU/
SEL to enter
the menu
Press the UP and DOWN arrows
to navigate and highlight the
desired menu item
Press MENU/SEL
to enter the setup
of the highlighted
item
Press BACK to return to
the previous screen
Press the UP and DOWN arrows
to navigate and highlight the
desired item
