HMa, HMa-941, HMa/EO1, HMa/E02, HMa/E06, HMA/E07-941, HMa/X
LECTROSONICS, INC.
8

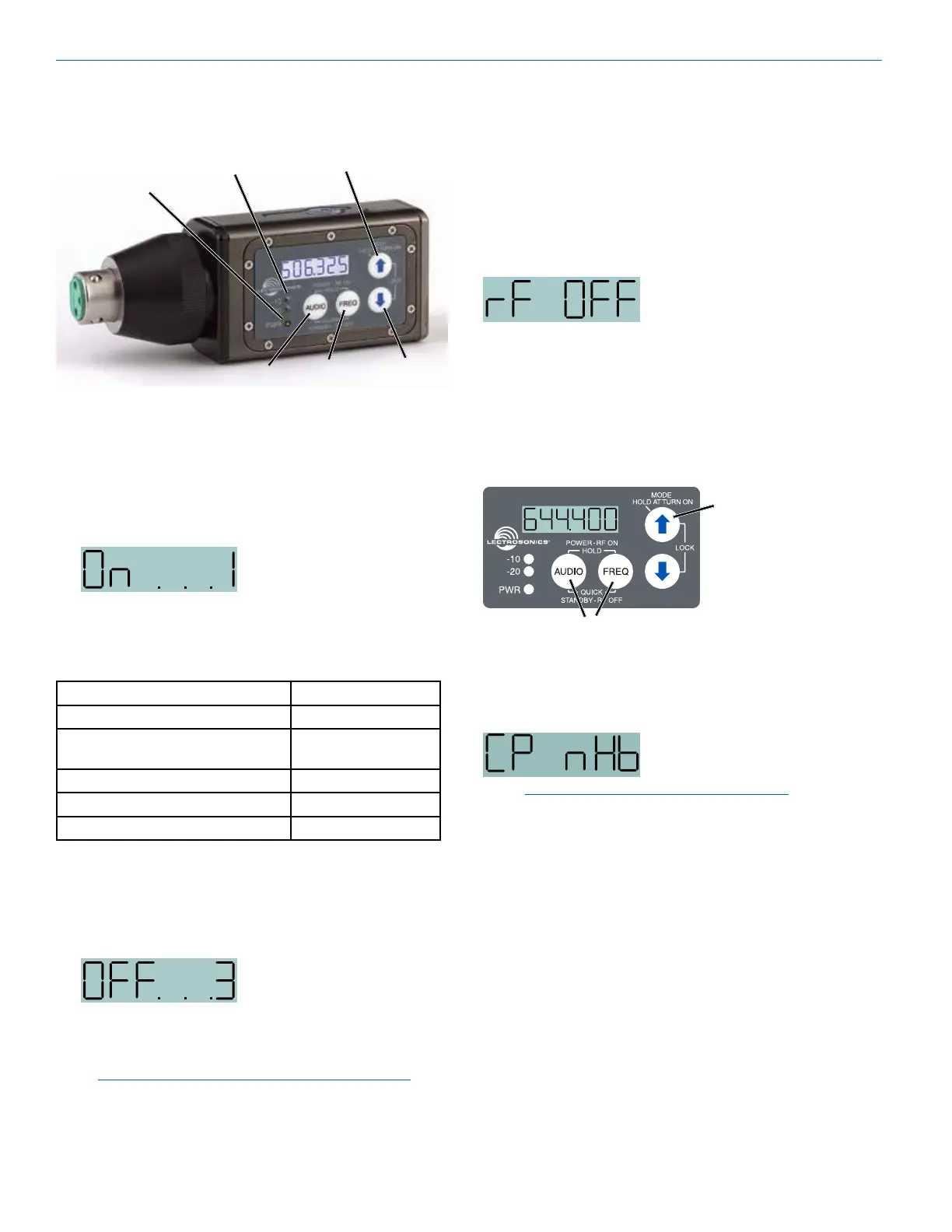

Operating Instructions
AUDIO
Button
FREQ
Button
Modulation
LEDs
PWR LED
UP Arrow
DOWN Arrow
Power Up and Boot Sequence
1) Ensure that good batteries are installed in the unit.
2) Simultaneously press and hold the AUDIO and
FREQ buttons. Continue holding the buttons until
On and the characters 1, 2, 3 have appeared. The
boot sequence will then initiate.
Initial Power On
Timer Screen
As the unit turns on, the
Modulation LEDs and PWR
LED all glow red, then green,
and then they revert to
normal operation.
The LCD displays a bootup sequence which con-
sists of ve screens:
Category: Example
Company Name: Lectro
Frequency Band (XX) and Firm-
ware Version (rX.XX):
A1 r1.00
Compatibility Mode: CP 400
RF Power Output: 100
Operating Frequency 482.875
Power Down
Simultaneously press and hold the AUDIO and
FREQ buttons. Continue holding the buttons until
OFF and the countdown characters 3, 2, 1 have
appeared. The unit will then power down.
Initial Power O
Timer Screen
If the AUDIO and FREQ
buttons are released before
the LCD goes blank at the
end of the countdown, the
unit will not turn o. Instead,
it will stay on and the LCD will return to the previ-
ous screen.
NOTE: If batteries are removed or reach the end
of life while the unit is turned on, the unit will
turn back on with a brief, simultaneous press
of the AUDIO and FREQ buttons. The counting
sequence will not be displayed in this instance.
Automatic Power Restore
The rmware will remember the power on/o state and
the settings when batteries reach their end of life or are
removed. When fresh batteries are installed, the unit
will reboot and return to the previous settings without
the need to press any buttons. This only works when
the unit is fully on and transmitting. It does not work
in the Standby Mode.
Standby Mode
Standby Screen
Standby Mode allows you to
verify or change the transmit-
ter’s operating frequency or
audio input level without trans-
mitting a signal. Quickly press and release both the
AUDIO and FREQ buttons simultaneously to enter and
exit this mode. The characters rF OFF will appear on
the LCD while the unit is in the standby mode.
UP Button Menu
Hold the UP button while powering up the unit.
Hold
Then press both
Then press the AUDIO button repeatedly to scroll
through the settings. Use the UP and DOWN arrow to
select the available options under each setting.
Compatibility Mode Screen (Up Button Menu)
CP (Compatibility Mode);
press the UP and DOWN
arrows to select one of the
following:
Note: RF transmission is prevented while
selecting Compatibility Modes. Also, the HM
exits this screen to the Standby Mode.
• nHb - For Digital Hybrid Wireless
®
receivers.
• 3 - (Mode 3) For non-Lectrosonics analog receiv-
ers. Contact the the factory for details.
• IFB - For Lectrosonics IFB receivers.
While in the compatibility mode screen, pressing either
the AUDIO or FREQ button exits to standby mode. To
power o from the compatibility mode screen, press
and hold AUDIO and FREQ together.
RF Power Output (Up Button Menu)
Pr (RF Power output) may be selected as:
HMa: Selectable 100 or 25 mW
HMa/E01: Selectable 25 or 50 mW
HMa/E02: 10 mW
HMa/E06: Selectable 50 or 100 mW EIRP
HMa-941: Selectable 50 or 100 mW
