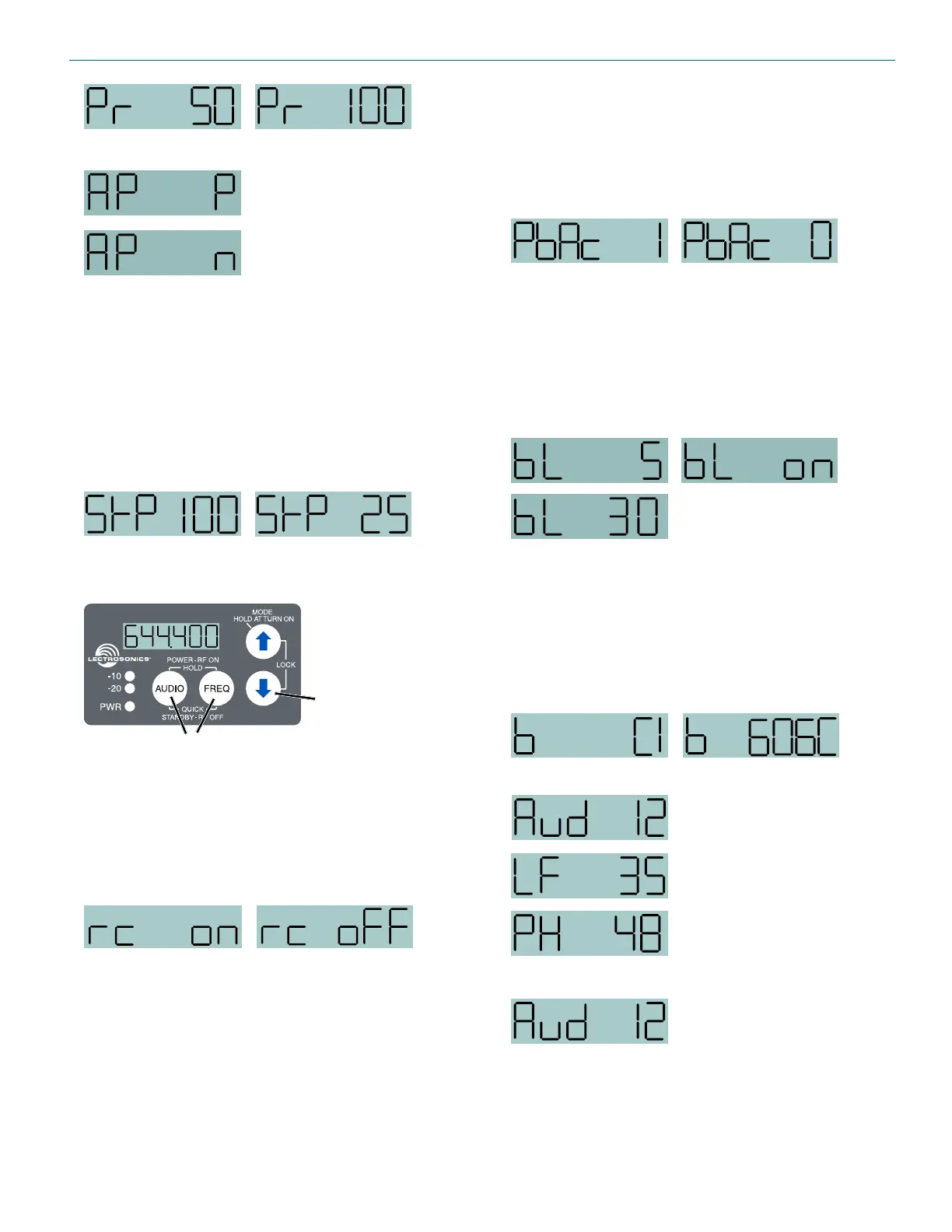

Selecting the Audio Polarity (Up Button Menu)
The character P denotes
“positive” polarity and
the character n denotes
ʼnegative” polarity.
NOTE: The audio polarity can also
be reversed at the output of most
Lectrosonics receivers.
Selecting Step Size mode (Up Button Menu)
The frequency increments can be set at either 25 kHz
or 100 kHz. Hold the UP arrow in while powering up the
unit to enter the setup screen. Press the AUDIO button
repeatedly to step through the setup items to reach the
Step Size Mode screen. Use the UP or DOWN arrow but-
ton to select the desired setting.
DOWN Button Menu
Hold the DOWN button while powering up the unit.
Hold
Then press both
Then press the AUDIO button repeatedly to scroll
through the setup screens. Use the UP and DOWN arrow
to select the available options for each setting.
Remote Control Enable “Dweedle Tones”
rc on allows the transmitter to respond to audio signals
(“dweedle tones”) delivered to the microphone from a
smart phone app. rc oFF disables this function.
If a remote control signal is detected but the function is
turned o, the message rc oFF will be displayed briey
on the transmitter’s LCD to conrm that a valid signal
was received, but that the remote control function is not
enabled.
HMa transmitter settings that can be adjusted:
• Audio input level (gain)
• Operating frequency
• Panel Lock/Unlock
• RF power output
• Low frequency roll-o lter
• Power LED on/o
The LectroRM Smart Phone App is used almost
exclusively for remote control. See the section entitled
Remote ‘Control with Dweedle Tones on page 12 for
more information.
Power Back On (DOWN Button Menu)
PbAc (Power back on after power loss) sets the unit to
either (1) turn back on after power loss or (0) remain o.
LCD Backlight Setting (Down Button Menu)
The LCD backlight can be set to turn o after either 5
minutes or 30 seconds or stay on continuously. Hold
the DOWN arrow in while powering up the unit to enter
the setup screen. Press the AUDIO button repeatedly
to step through the setup items to reach the backlight
settings screen. Use the UP or DOWN arrow button to
select the desired setting.
Band/Legacy Block 606 Setting (Down Button Menu)
Allows access to either the full B1, B2 or C1 band or
only Block 606. When using a a Block 606 receiver
such as an SRb/E01-606 or a UCR411a-606, the pilot
tones must match for the receiver to recognize the
signal from the tranmsitter. Press and hold the DOWN
arrow button then press the AUDIO button to access.
Available only for E01 models.
AUDIO Button Settings
Press the AUDIO button
repeatedly to select the setting.
Each time the button is re-
leased, the screen will switch to
the next setting. Press and hold
the button when the desired
setting appears on the screen,
then use the UP and DOWN
arrow buttons to adjust the
setting.
Adjusting the Input Gain
The control panel Modulation
LEDs indicate the modulation
level and limiter activity. This
gain adjustment matches the transmitter gain with the
microphone’s output level, the user’s voice level and
the position of the microphone. Once set, the transmit-
ter’s audio level setting should not be used to control
the volume of your sound system or recorder levels.
The audio input level can be set with the unit in Stand-
by Mode or while powered up in normal operation.
