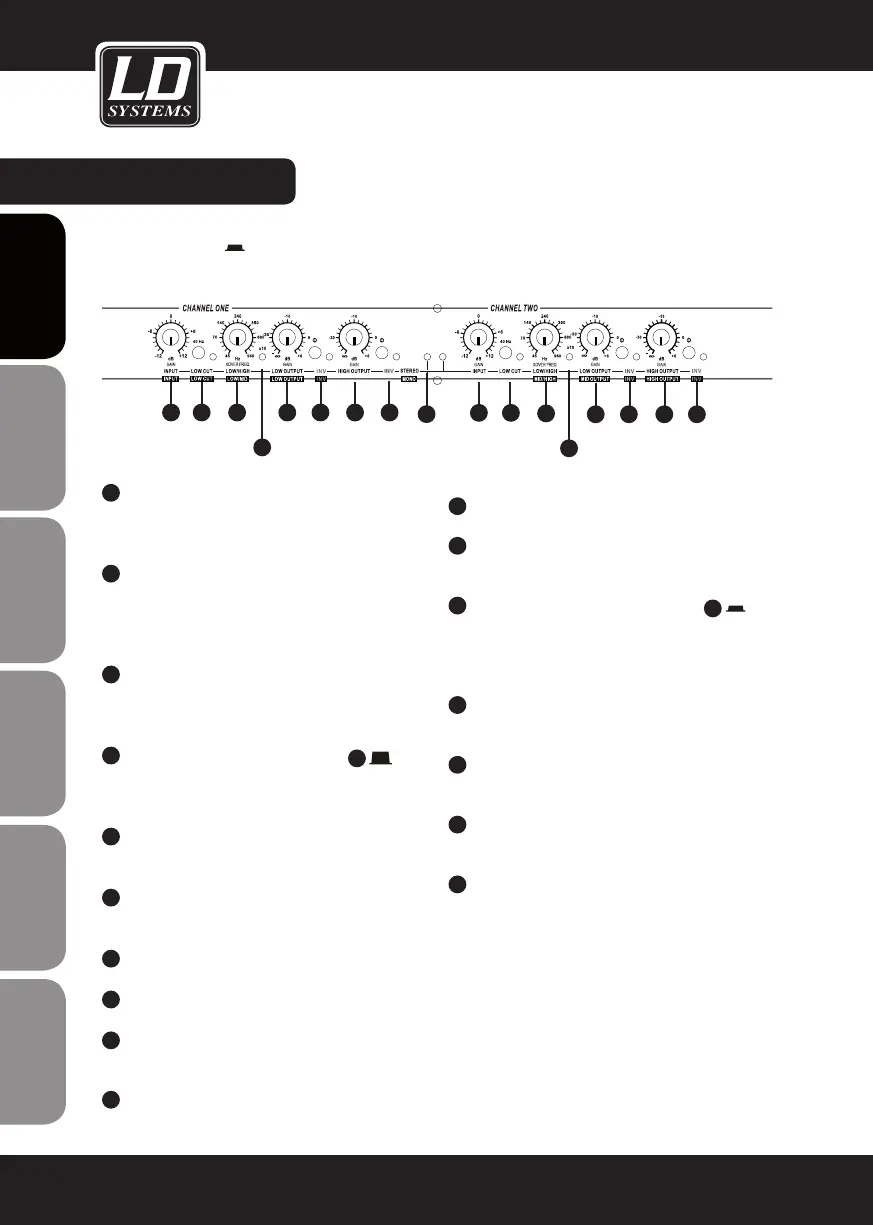

FRONT PANEL:
1
GAIN INPUT KANAL 1 (CHANNEL 2 NO
FUNCTION)
Controls the volume of the input signal.
2
LOW CUT SWITCH / LOW CUT LED CHANNEL 1
(CHANNEL 2 NO FUNCTION)
High pass filter (40 Hz, 18 dB/octave); LED indica-
tor when filter is activated.
3
XOVER FREQUENCY
Crossover frequency between bass and mid
signal.
4
LED p8-x10 (switch on the back panel
4
x 1)
LED off, crossover frequency between 45 and
960 Hz.
5
LOW OUTPUT
Volume control for bass signal.
6
INVERSE SWITCH / INVERSE LED
Inverts the polarity of the bass signal by 180°.
7
NO FUNCTION IN 3 WAY MODE
8
NO FUNCTION IN 3 WAY MODE
9
MONO MODE LED
Lights up when the crossover is in mono mode.
10
NO FUNCTION IN 3 WAY MODE
11
NO FUNCTION IN 3 WAY MODE
12
XOVER FREQUENCY
Crossover frequency between mid and high signal.
13
LED p8-x10 (switch on the back panel
4
x
10)
LED on, crossover frequency between 450 and
9600 Hz.
14
MID OUTPUT
Volume control for mid signal.
15
INVERSE SWITCH / INVERSE LED
Inverts the polarity of the mid signal by 180°.
16
HIGH OUTPUT
Volume control for high signal.
17
INVERSE SWITCH / INVERSE LED
Inverts the polarity of the high signal by 180°.
MONO - 3 WAY MODE
MODE BUTTON
MONO
1 2 3
4
5 6 7 8
9
10 11
12
13
14 15 16 17
