10
13
LINE VOLUME
Volume control for the line channel. Turning to the right increases the volume, turning to the left
decreases it.
14
SIG (SIGNAL)
When an audio signal is present at the line output LINE OUT, the signal indicator lights up white.
15
CLIP
The CLIP indicator lights up when the LINE OUT output is overloaded. If this occurs, reduce the volume
level. Failure to do so may result in distorted sound reproduction and damage to connected equipment.
AIR VENTS
To prevent damage to the device, do not cover the ventilation openings on the left and right sides and
on the top and bottom of the device and ensure that air can circulate freely. Covering the ventilation
openings on the top or bottom of the enclosure when mounting it underneath or on top of a table is
not critical, as the cooling provided by the ventilation openings on the remaining sides is sufficient.

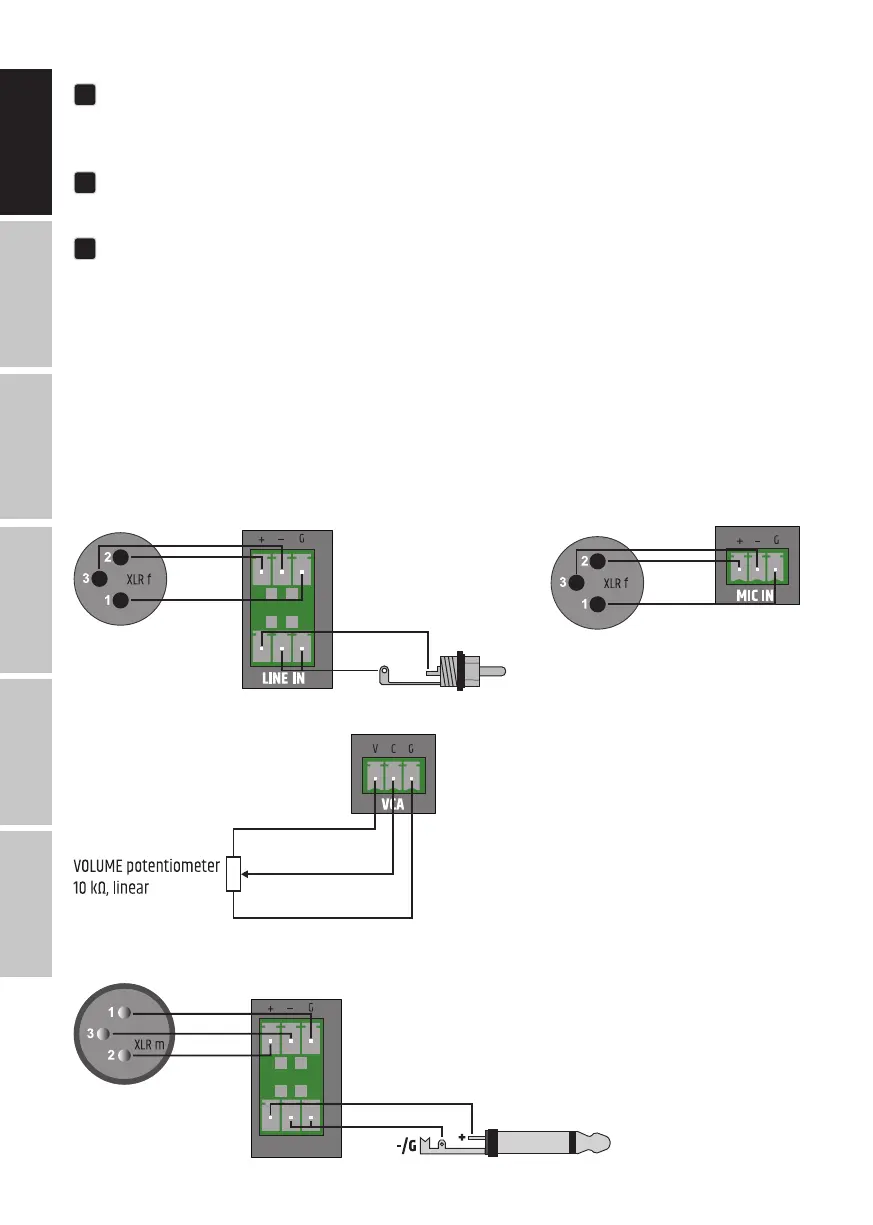

TERMINAL BLOCK CONNECTIONS
unbalanced
balanced
1
2
balanced
Connections LINE IN 1 / 2 Connection MIC IN
Ground
5 V
Volume
Connection VCA
balanced
unbalanced
LINE OUT
Connections LINE OUT
