EFFECT

Level control for adjusting the effect volume (effect return). The effect type and the effect sends are

set in the unit menu under EFFECT.

18

FOOTSWITCH FX ON/OFF

6.3 mm jack socket for connecting a footswitch (on/off switch). With an external footswitch with a 6.3mm

jack plug, you can mute the internal effect module and unmute it again.

19

MIX OUTPUT

Balanced line output with male 3-pin XLR socket. The outgoing signal consists of a mix of all input channels

plus effect and Bluetooth signal and is independent of the overall volume setting.

20

USB-C

USB-C socket for charging a smartphone or tablet (5 volts voltage, maximum 2 A charging current).

OPERATION

NOTES

As soon as the speaker is switched on (with sufficient battery status or power supply via mains cable),

the LD Systems logo appears in the display for a short time. All settings, such as preset, EQ and effect,

are loaded as they were set before the speaker was switched off. After this process, the speaker is

ready for operation.

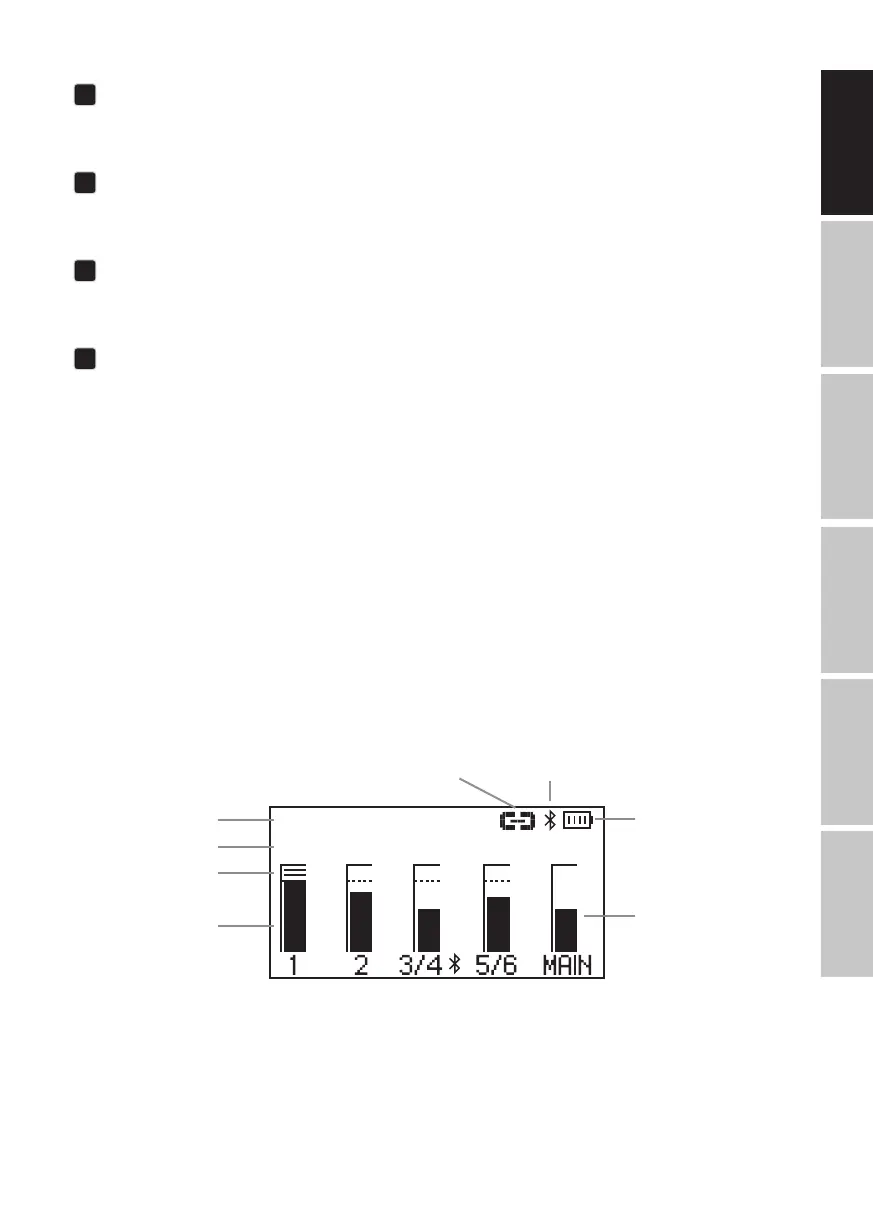

MAIN DISPLAY

In normal operation, the main display is activated and shows the set overall volume, the activated

speaker preset, the effect preset, the input levels of channels 1 to 6, the Bluetooth and TWS status and

the battery charge status (see illustration).

PRESET: MUSIC

-20 dB

MAIN VOLUME

PRESET: MUSIC

HOME

BLUETOOTH

AUDIO

EFFECT

SETTINGS

PRESET: MUSIC

MAIN MENU

PRESET

HIGH EQ

MID EQ

LOW EQ

DELAY

PRIORITY

MUSIC

+3 dB

-5 dB

0 dB

5.0 m / 16.4 ft

INPUT 1

PRESET: MUSIC

MAIN MENU

FX TYPE

FX SENDS

SMALL REVERB

PRESET: MUSIC

MAIN MENU

LCD DIM

BRIGHTNESS

CONTRAST

INFO

FACTORY DEFAULT

ON

100%

PRESET: MUSIC

HOME

BLUETOOTH

AUDIO

EFFECT

SETTINGS

PRESET: MUSIC

HOME

BLUETOOTH

AUDIO

EFFECT

SETTINGS

PRESET: MUSIC

HOME

BLUETOOTH

AUDIO

EFFECT

SETTINGS

1 2 3/4 5/6 MAIN

PRESET: MUSIC

FX: SMALL REVERB -20dB

1 2 3/4 5/6 MAIN

PRESET: MUSIC

FX: SMALL REVERB -20dB

PRESET: MUSIC

MAIN MENU

BLUETOOTH

TWS

OFF / PAIRING

OFF / LINK

Loudspeaker preset

Effect preset

Peak

Level

Main volume

Battery charge status

No symbol: Bluetooth deactivated

Symbol flashes: Bluetooth activated,

ready to pair

Symbol permanently present:

Bluetooth activated and paired

No symbol: TWS deactivated

Symbol flashes: TWS activated,

ready for coupling

Symbol permanently present:

TWS activated and coupled

Input level with peak indicator of channels 1 to 6

PEAK INDICATOR

If the peak symbol appears in the level display of a channel, this indicates that the input stage of the

corresponding channel is operated above the distortion limit. Reduce the output level of the connected

playback device (e.g. mixer, keyboard, etc.) until the peak symbol is no longer displayed and the

loudspeaker plays back audio signals without distortion.
