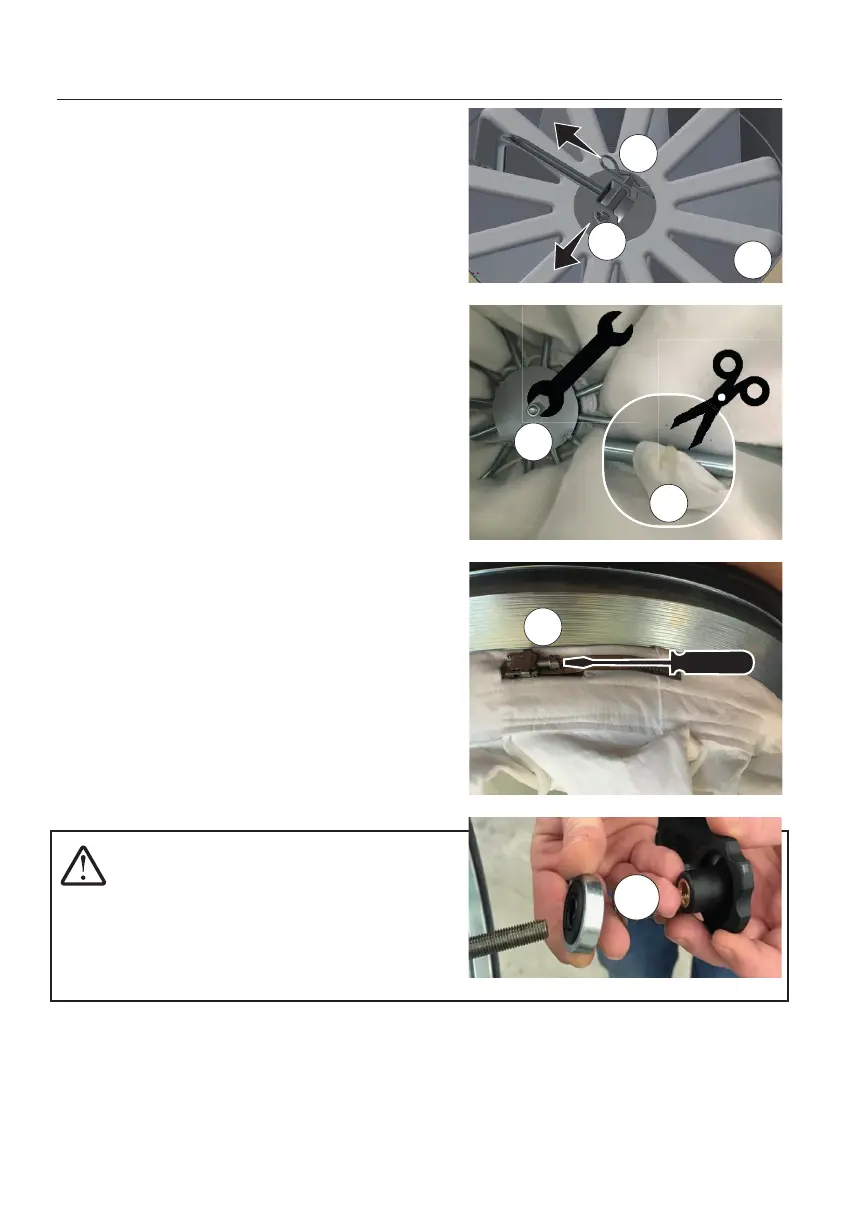

14. FILTER REPLACEMENT
Replacement of primary lter
1. Release and lift the cover
2. Remove the dust bin (see paragraph 16)
3. Access to the lter from the below part (pic.5) of the vac-
uum (where the dust bin was located), remove the pins
that keep lters and lever for lter cleaning together
4. Lift the lter
5. Unscrew the bolt (B) with an Allen key
6. Remove 6 plastic ties (C)
7. Unscrew the metal clamp (D) and remove the lter from
the metal ring
8. Replace the lter with the one correct for the vacuum.
(refer to the price list)
9. Insert the new lter on the metal ring (D) and screw the
metal clamp
10. Fit the basket into the lter keeping the round plate at
the external, screwing with the nut and the bolt (B)
11. Set the lter sewn stitches using new plastic ties (C)
12. Check the integrity of the rubber gasket on the metal
ring and insert it with the lter into the lter chamber
13. Insert the pins (pic.A) between the lter shaker lever and
the round plate. Insert the pin (pic.1)
Replacement of the secondary HEPA lter
1. Release and lift the cover
2. Unscrew the knob and take out the washer
3. Replace the lter with a new one (refer to the price list)
4. Fit the new lter, keeping the washer rubber side in touch
with the bottom of the lter and screw again the knob
(pic. F)
WARNING: THE SUBSTITUTION OF THE FILTER MUST
BE CARRIED ONLY BY PERSONNEL AUTHORIZED
EACH NON AUTHORIZED SUBSTITUTION AND /
OR MAINTENANCE OF FILTERING SYSTEM CAN
COMPROMISE THE SAFETY OF APPLIANCE, IN
THIS CASE THE PRODUCER DECLINES EVERY
RESPONSIBILITY.
