5. Installation Method

Installation of the Cooling Exhaust Pipe:

1. Point the base of the elbow to the dent of the detachable elbow base on the

machine, insert it in and rotate it anticlockwise. Click the elbow in to place as

shown in Fig. 1.

2. Point the turning end of the cold exhaust pipe to the dent of the cold exhaust

pipe, insert it in and rotate it to the left to click it in to place as shown in Fig. 1.

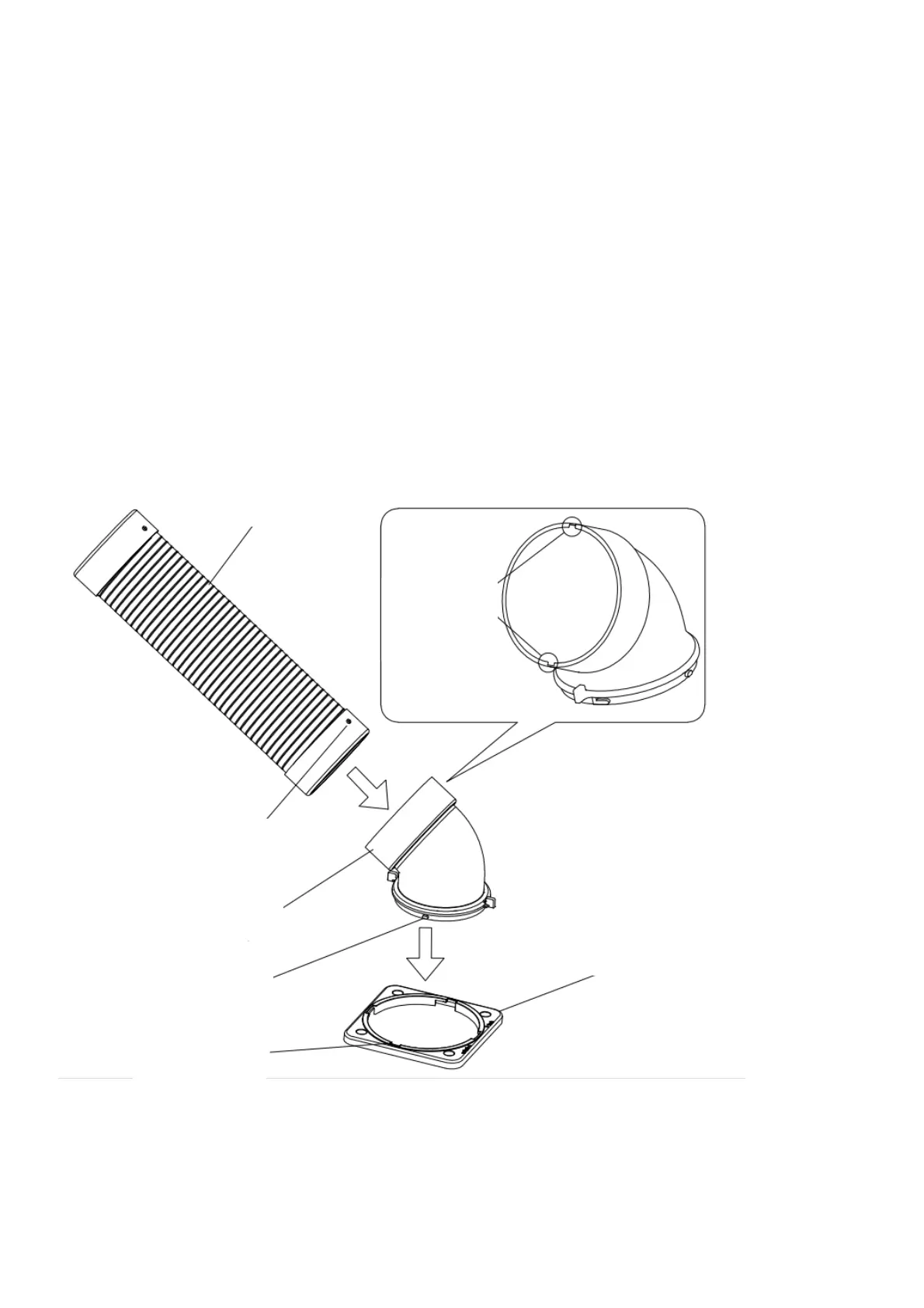

(Fig.1)

Convex

part

Cold exhaust

pipe

Concave

part

Elbow

Dent

Convex

part

Release elbow

seat
