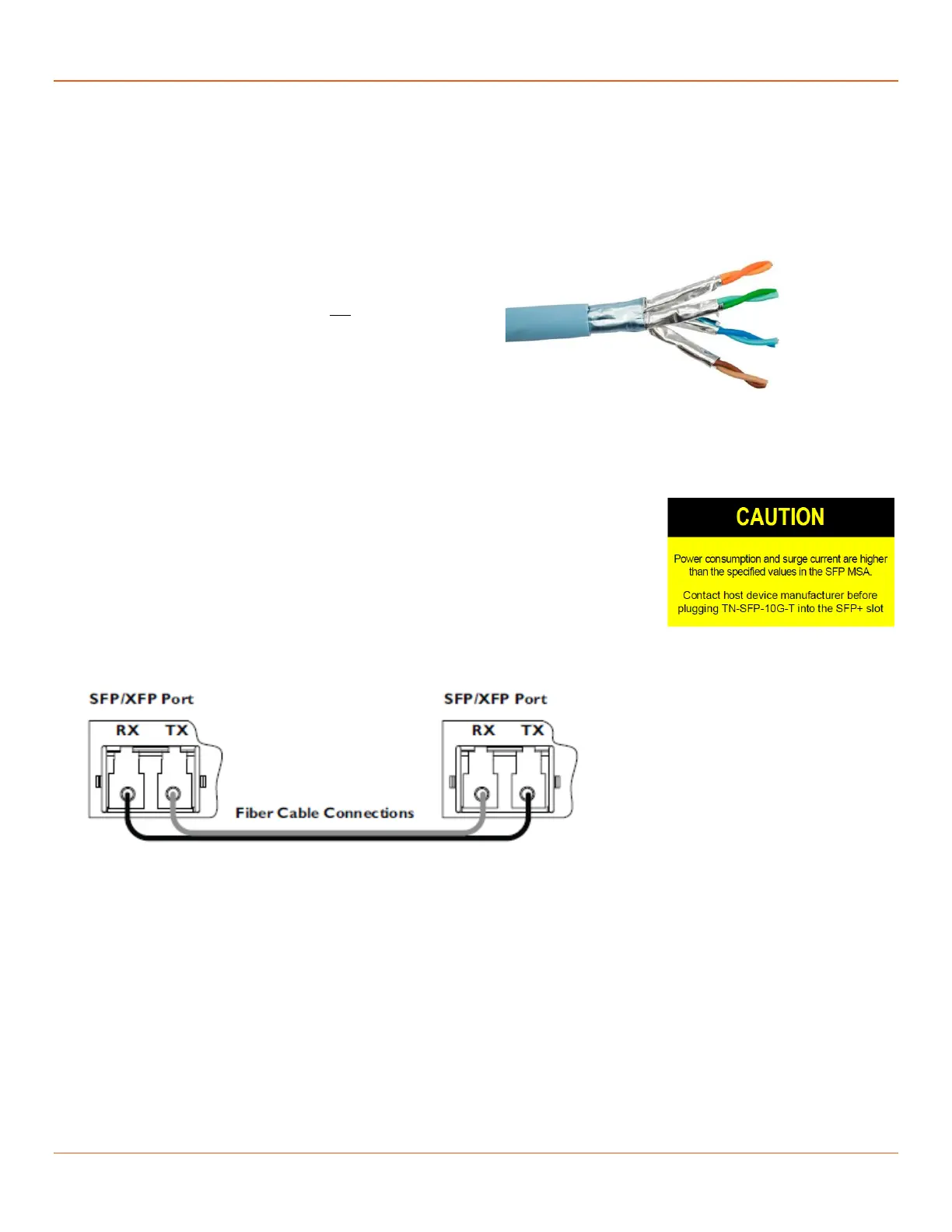

Fiber Cable Physical Characteristics
The fiber cable physical characteristics must meet or exceed IEEE 802.3ae specifications:
Single mode fiber (recommended): 9 μm
Multimode fiber (recommended): 62.5/125 μm
Multimode fiber (optional): 100/140, 85/140, 50/125 μm
Warning: Visible and invisible laser radiation when open. DO NOT stare into laser beam or view directly with optical
instruments. Failure to observe this warning could result in damage to your eyes or blindness.
Recommended Cable Type for TN-SFP-10G-T
Common Industry Acronym: FFTP (not SSTP or SFTP)
ISO/IEC 11801 Name: F/FTP
Cable Shielding Type: Foil
Twisted Pair Shielding Type: Foil
Typical TN-SFP-10G-T Power Consumption at Various Distances
10m :2.4W
20m : 2.5W
30m : 2.6W
TN-SFP-10G-T Power Consumption/Surge Current Caution
CAUTION: Power consumption and surge current are higher than the specified values
in the SFP MSA. Contact host device manufacturer before plugging TN-SFP-10G-T
into the SFP+ slot.
Connecting Fiber Cables
To install the fiber cable, do the following:
1. Locate the appropriate fiber cable.
2. Install the cable as shown below.
