Lantronix C2110 Install Guide
33415 Rev. D https://www.lantronix.com Page 13 of 23

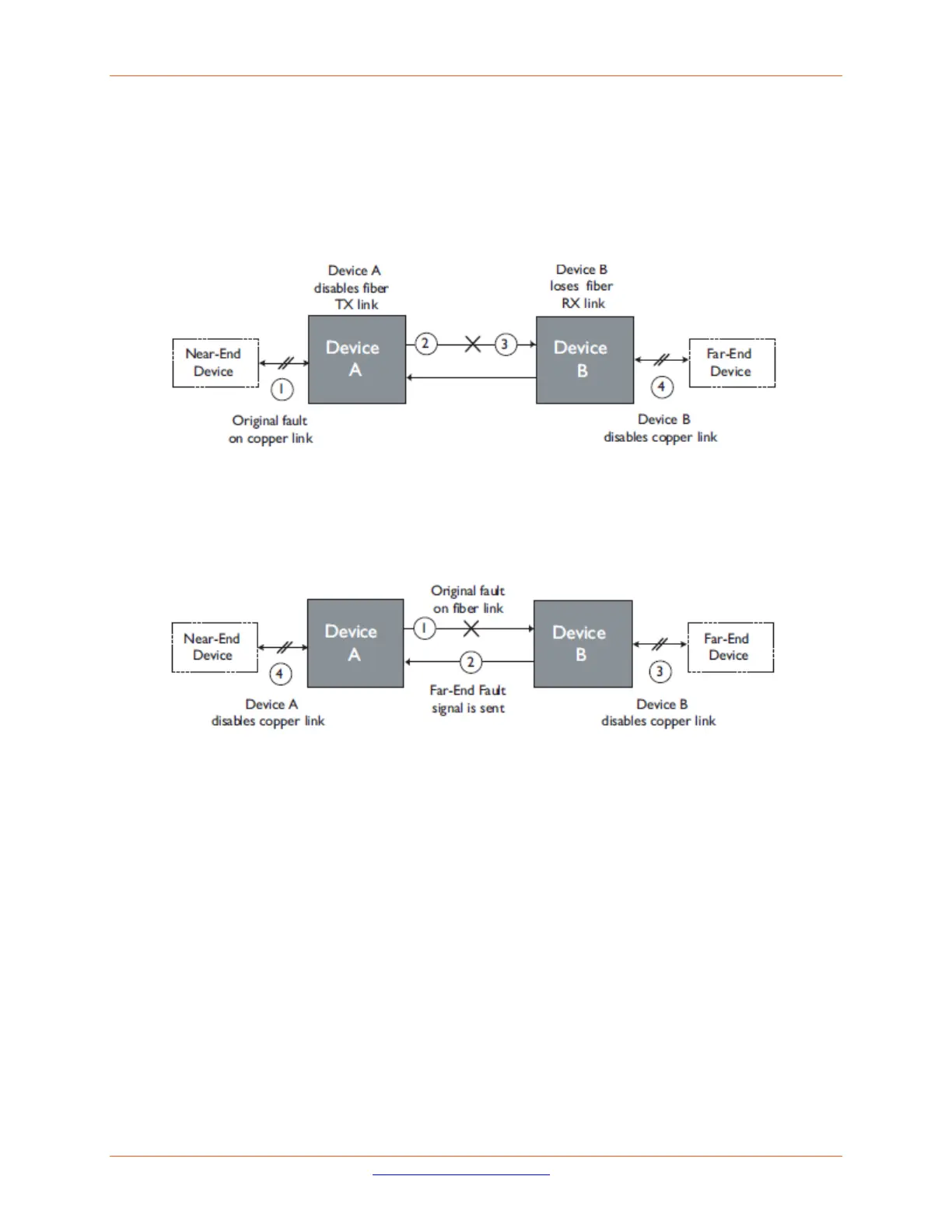

Link Pass-Through (LPT)
When the Link Pass-Through feature is activated, it allows the C2110 to monitor both the fiber and copper
RX (receive) ports for loss of signal. In the event of a loss of an RX signal (1), the C2110 will
automatically disable the TX (transmit) signal (2), thus, “passing through” the link loss (3). The far-end
device is notified automatically of the link loss (4), which prevents the loss of valuable data transmitted
unknowingly over an invalid link.
Far-End Fault (FEF)
When a fault occurs on an incoming fiber link (1), the C2110 transmits a Far-End Fault signal on the
outgoing fiber link (2). In addition, the Far-End Fault signal also activates the Link Pass-Through, which in
turn disables the link on the copper portion of the network (3) and (4).
