Lantronix C2110 Install Guide
33415 Rev. D https://www.lantronix.com Page 11 of 23
Connect the Twisted-Pair Copper Cable

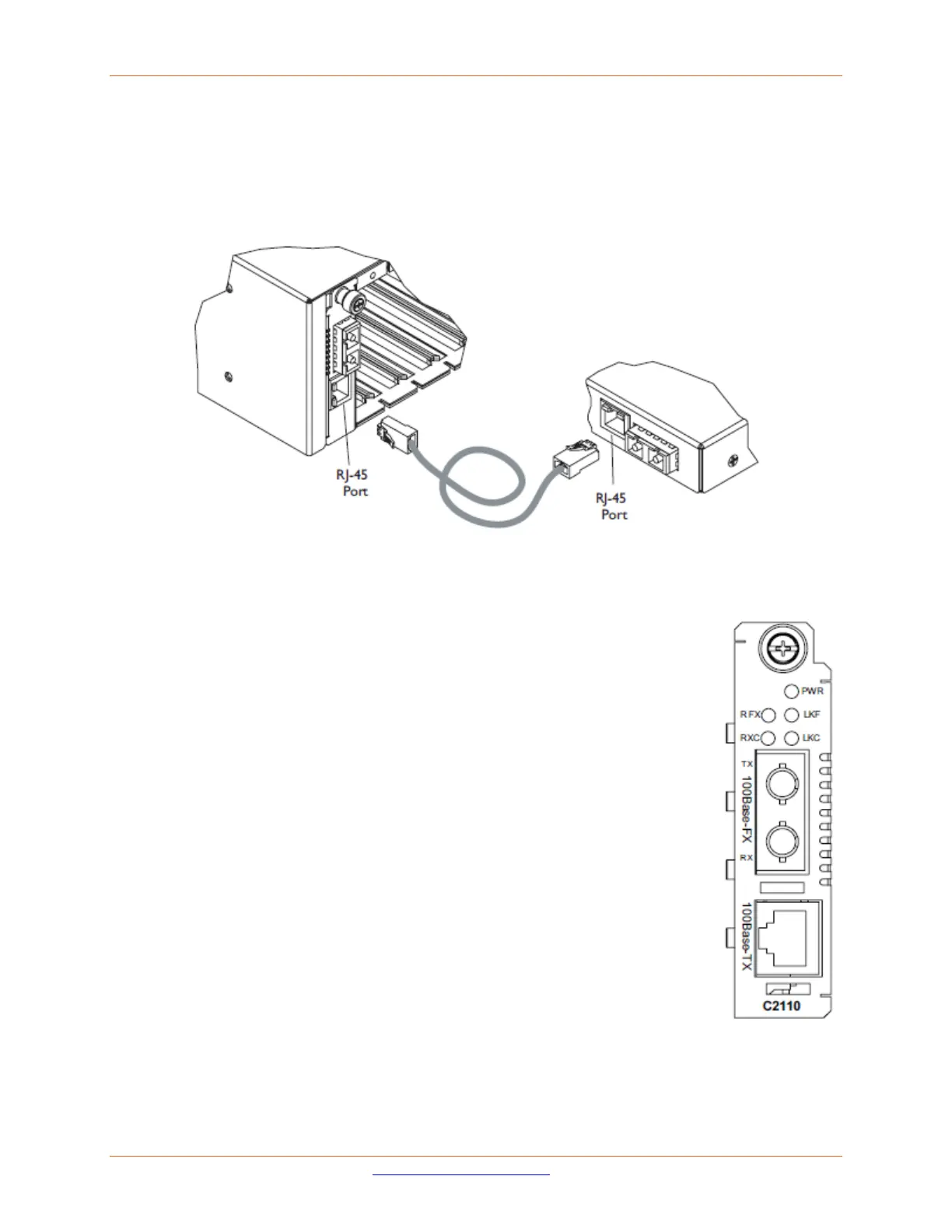

1. Locate a 100Base-TX compliant cable, with a male RJ-45 connector installed at each end.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the C2110.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device
(switch, workstation, etc.).
Operation
Status LEDs
The C2110 is designed to operate without user intervention. Use the status LEDs to
monitor the C2110 operation in the network.
PWR (Power): ON = Connection to powered ION Chassis backplane.
LKC (Copper Link): ON = Copper Link.
RXC (Receive Copper): Blinking = Data recieved on Copper link.
LKF (Fiber Link): ON = Fiber Link.
RFX (Receive Fiber): Blinking = Data received on Fiber Link.
