26
4-Wire Power Cord Installation
Remove the Terminal Block Access Plate on the back of range by removing the fixing screws.
●
Detach the strain relief in the hole on bracket.
● Insert the power cord(L1, L2, neutral or ground
wire) through the strain relief and tighten.
● Allow enough slack to easily attach the cord
terminals to the terminal block.
● Plug the terminal holes of power cord.The
neutral or ground wire of the power cord must be
connected to the neutral terminal (N)
located in thef center of terminal block. The live wires
must be connected to L1 and L2.
● Plug washers and tighten nuts securely.
● Assemble the Terminal Block Access Plate.
● Remove the 3 wire terminal nuts and washers
from the terminal block.

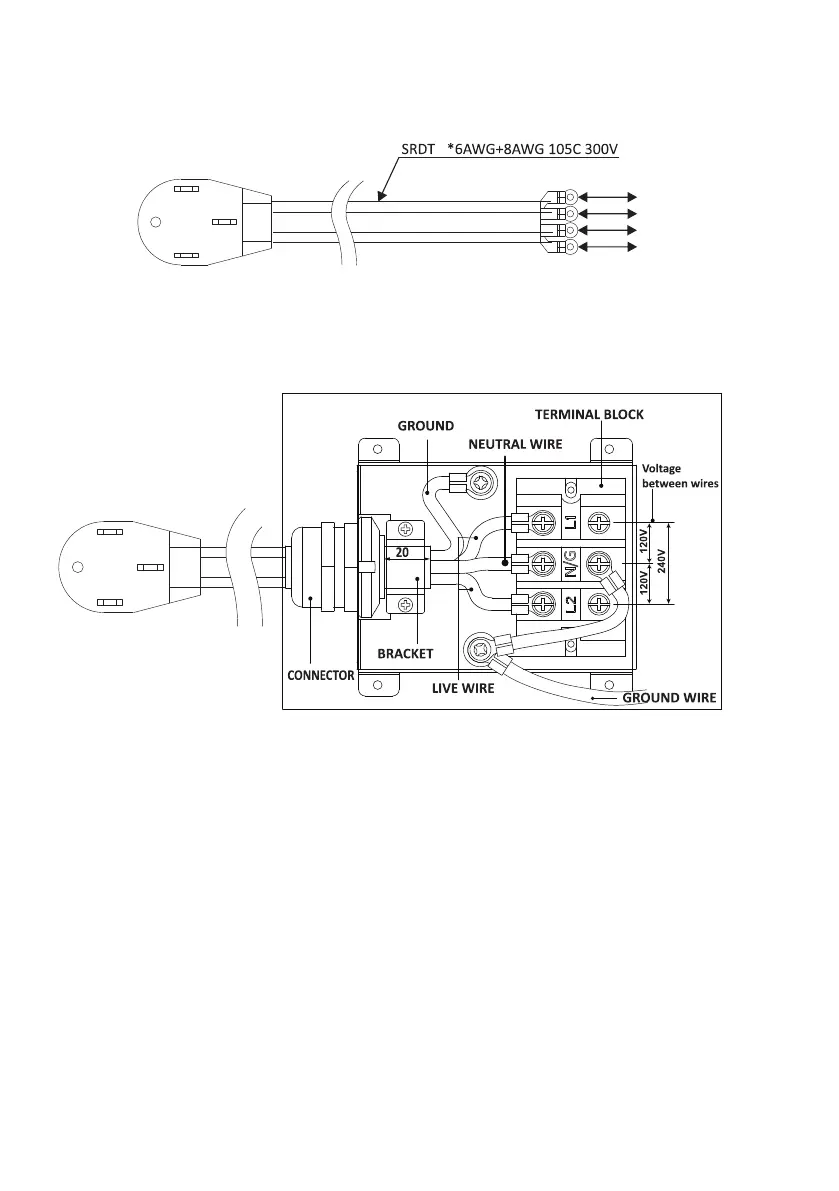

For the 4-pin power cord, you should make sure it is a professional NEMA 1450P plug that
is at least 6AWG or 8AWG, a power cord special designed for Ranges: shown as below:
The “W” (white) should be connected to N, the “X” (Red) should be connected to L1, “Y” (BLACK)
connected to L2, “G” (GREEN) connected to “G” : shown as below.
1450P
G
X
Y
W
3
G
X
Y
W
Measure the voltage between wires after installation, please refer to
1450P
G
X
Y
W
“ Voltage between wires ”.
Customers should not remove the ground wire installed in the junction box.
●
