Installation Instructions
Important: Ensure that the electricity supply is
switched off before connecting.
When fitting in recirculation mode (with carbon
filters), ensure the cable is shortened and
securely held in place; or a cable grid is fitted
to prevent the loose cable from falling back into
the motor cavity.
Your appliance must be connected to fixed
wiring via the use of a double pole switched
fused spur outlet with at least 3mm contact
separation, the isolation switch must be
accessible after installation. (See technical data
for fuse rating).
The appliance should be connected by a suitably
qualified person. The product must be installed in
accordance with all local regulations.
• The terminations labelled SUPPLY are the
connections for the internal house wiring.
• The terminations labelled LOAD are for connection
to the appliance.

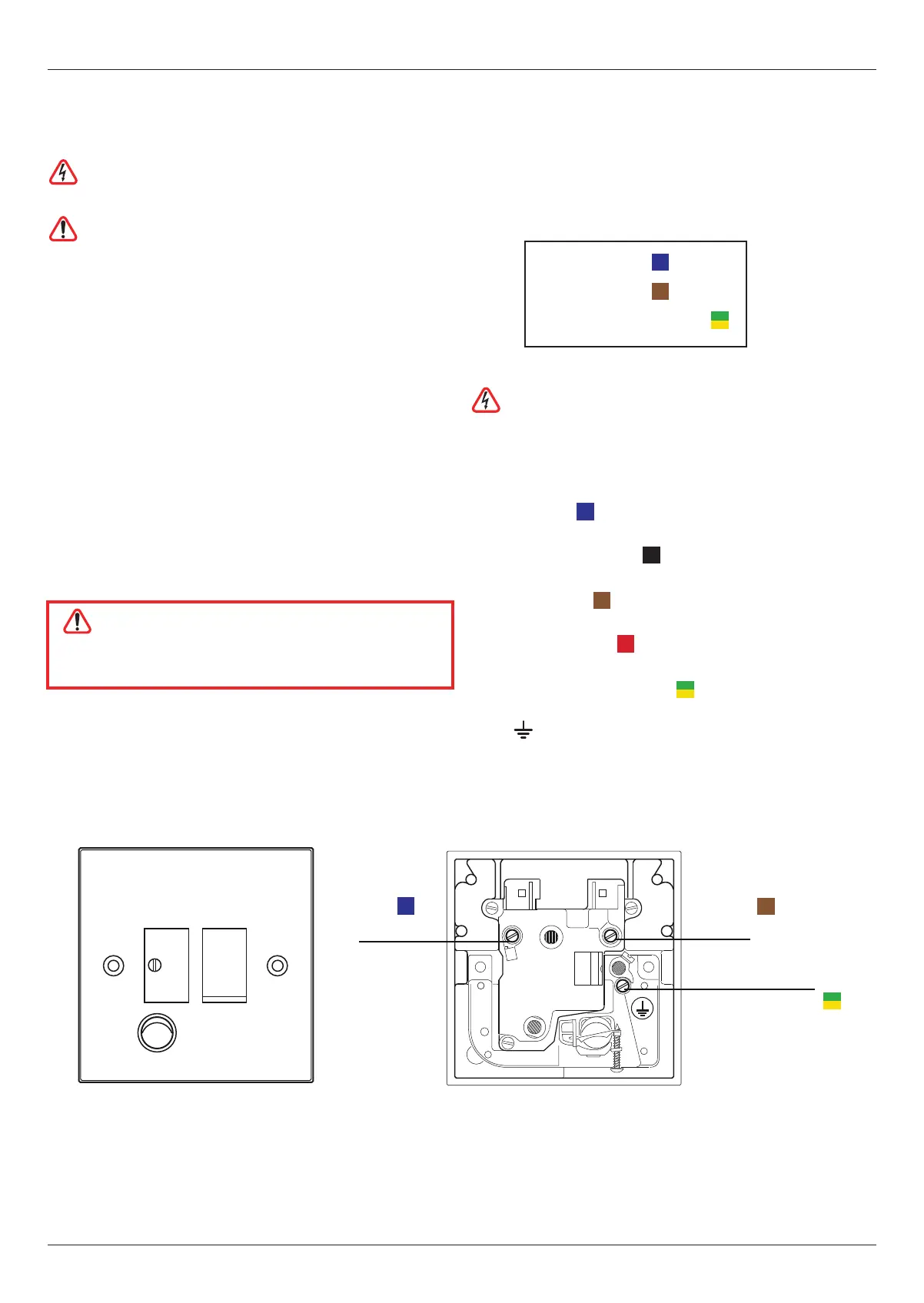

Electrical connections
The terminology DOUBLE POLE -/+ means that
both the live and neutral supplies are switched
and disconnected at the same time.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
FUSE
ON
Blue
(Neutral)
Brown
(Live)
Green & Yellow
(Earth)
IMPORTANT: The wires in the mains lead are
coloured in accordance with the following code:
Blue - Neutral
Brown - Live
Green / Yellow - Earth
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your spur box, proceed as follows;
The blue wire must be connected to
the terminal which is marked with the letter
‘N’ or coloured BLACK .
The brown wire must be connected to
the terminal which is marked with the letter
‘ L’ or coloured RED .
The green and yellow wire must be connected to
the terminal which is marked with the letter
‘E’ or symbol.
