8 Krowne • 100 Haul Rd. Wayne, NJ 07470 • krowne.com
Refrigeration Installation & Operating Manual
DIGITAL
TEMPERATURE
CONTROL
BOX
TEMP
SENSOR
TO THE CONDENSING
UNIT
(RED)
110V PLUG-IN CORD
POWER BLACK
NEUTRAL
WHITE
LIGHT CONNECTION
(OPTIONAL)
(WHITE)
(BLACK)
POWER
SWITCH
(BLACK)
EVAP
DEFROST
SENSOR
(BLUE)
CENTER PIECE MULLION HEATER
(ONLY ON 48” UNITS)
FRAME MULLION HEATER
EVAPORATOR DEFROST HEATER
(RED)
(YELLOW)
(BLUE)
(WHITE)
EVAPORATOR FAN
(BLUE)
(BLACK)
(BROWN)
PLUG-IN-CORD
115 VOLTS 15 AMPS RECOMMENDED
TO THE CONDENSING UNIT
EVAPORATOR FAN MOTOR, 2 SPEED(2 MOTORS BC96
MODEL, BC24 AND BC36 MODELS BLACK WIRE NOT
CONNECTED TO RED (1 SPEED))
BLACK
WHITE
RED
BLACK
BROWN
WHITE BLUE
BLACK BLACK
TEMPERATURE
PROBE
8
9
7
6
4
3
DIGITAL
TEMPERATURE
CONTROL
PIN & SOCKET
CONNECTOR
4 WIRE FEMALE
RECEPTACLE
PIN & SOCKET
CONNECTOR
4 WIRE MALE PLUG
GROUND
BOTTLE COOLERS
1,2 AND 3 Door
POWER SWITCH
10
DEFROST PROBE
BROWN
LIGHT CONNECTION
(OPTIONAL)
Model Description
MC24 24” Slide Top Mug Froster
MC36 36” Slide Top Mug Froster
MC48 48” Slide Top Mug Froster
FMC24 24” Front Door Mug Froster
Model Description
BC24 24” Slide Top Bottle Cooler
BC36 36” Slide Top Bottle Cooler
BC48 48” Slide Top Bottle Cooler
BC72 72” Slide Top Bottle Cooler
BC96 96” Slide Top Bottle Cooler

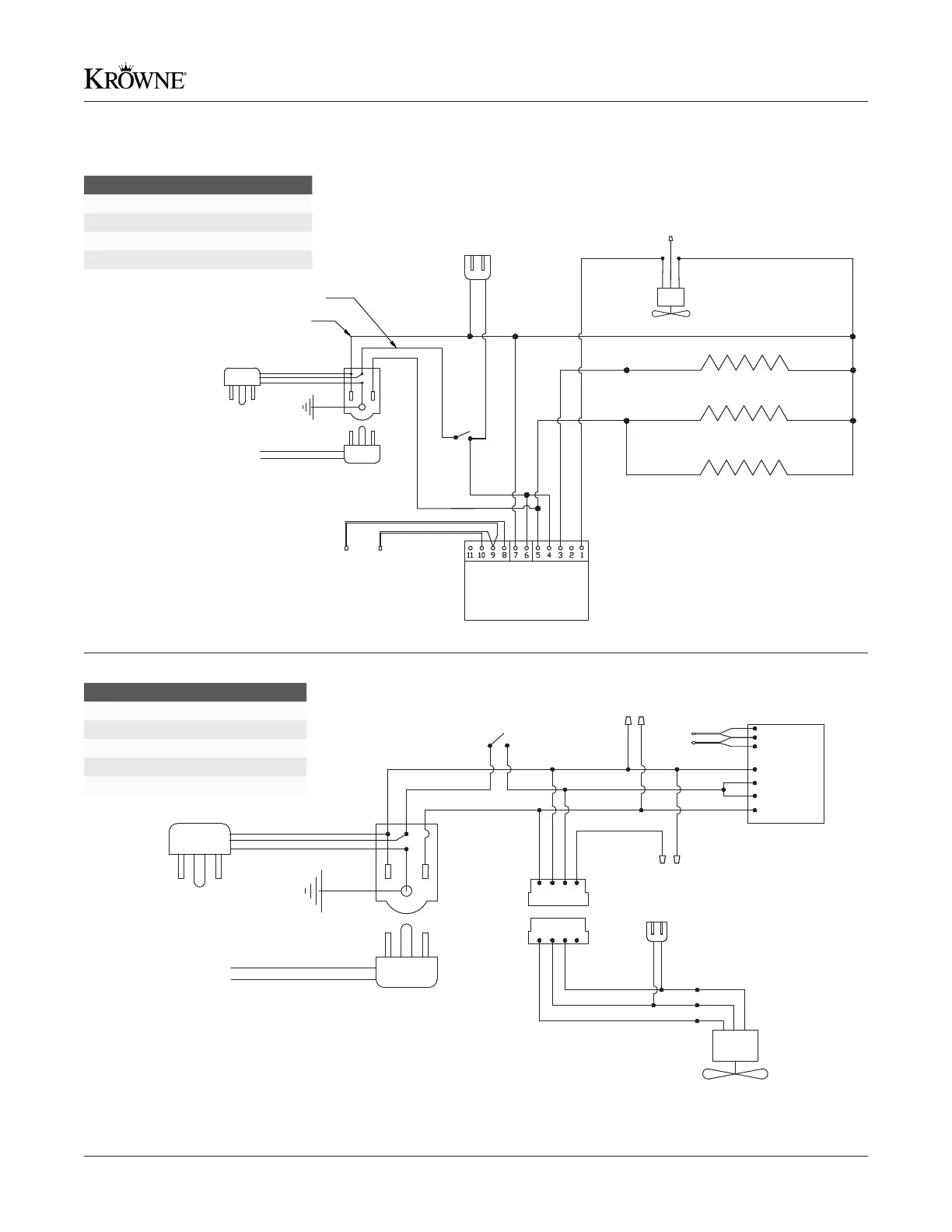

Wire Diagrams
