Operation and operating the device
4.3 De-energising the inverter
For maintenance work on the inverter, especially on the
connections, the inverter must be disconnected from the
power supply.
n
For work on the AC side, e.g. on the energy meter,
the earthing system or the communication connec-
tions, it is sucient to disconnect the AC connection.
n
For work on the PV modules or the DC feed lines,
disconnect the DC connections.
n
When working in the terminal compartment of the
inverter, the inverter must be completely voltage-free
on the AC and DC sides.

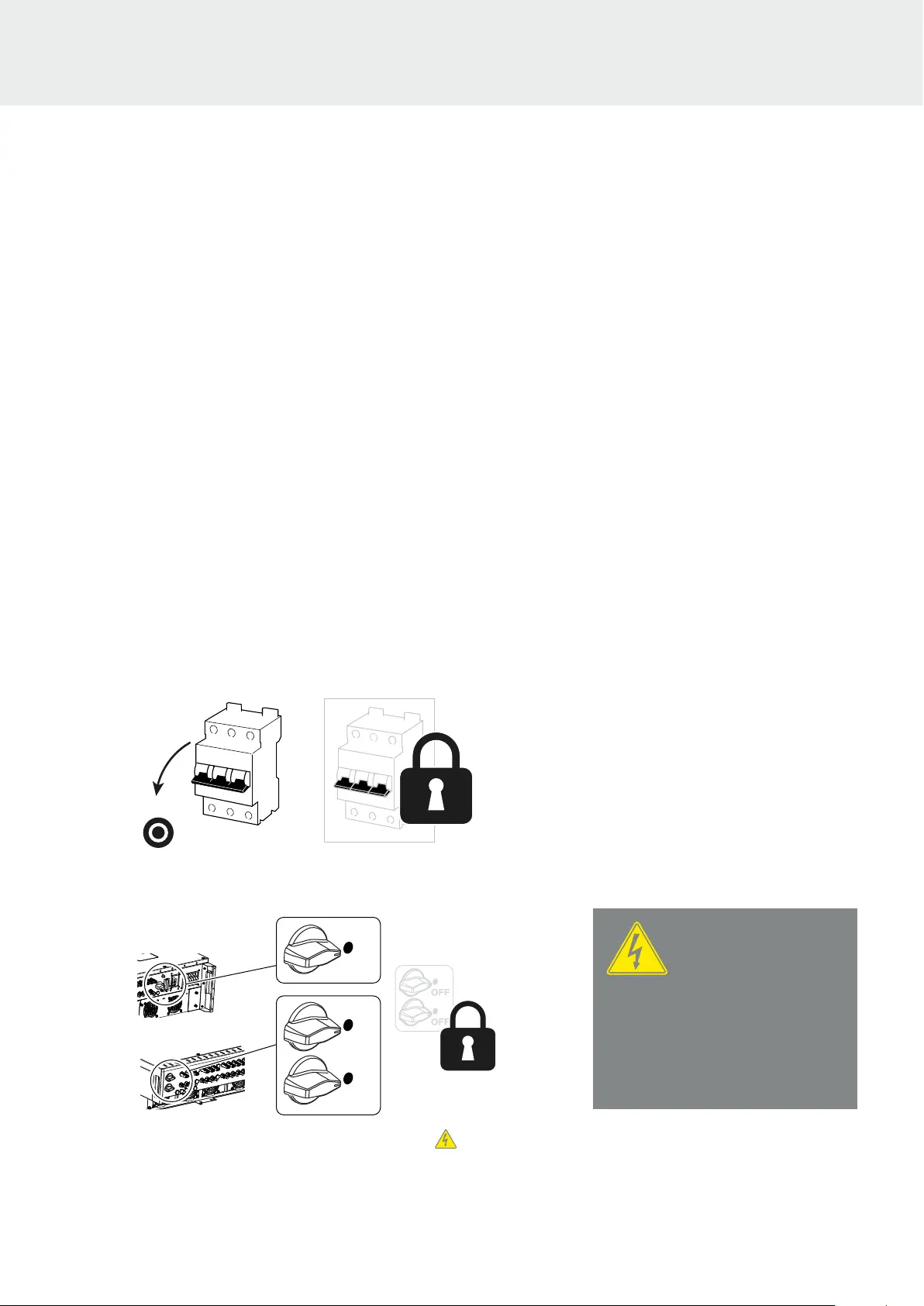

Disconnecting inverter on the AC side
1. Switch o AC line circuit breaker and secure it
against being switched on again.
OFF
2. Switch DC switch on inverter to OFF and secure it
against being switched on again.
OFF
OFF
OFF
PIKO CI 30
PIKO CI 50/60
H
The inverter is voltage-free on the AC side
DANGER
RISK OF DEATH DUE TO ELECTRI-
CAL SHOCK AND DISCHARGE!
When working in the terminal com-
partment, on the DC supply lines or
on the PV modules, the DC cables
must still be disconnected.
4
2
3
4
5
6
7
8
9
10
1
