© 2021 KOSTAL Solar Electric GmbH
Operation and operating the device
4.1 Switch on inverter

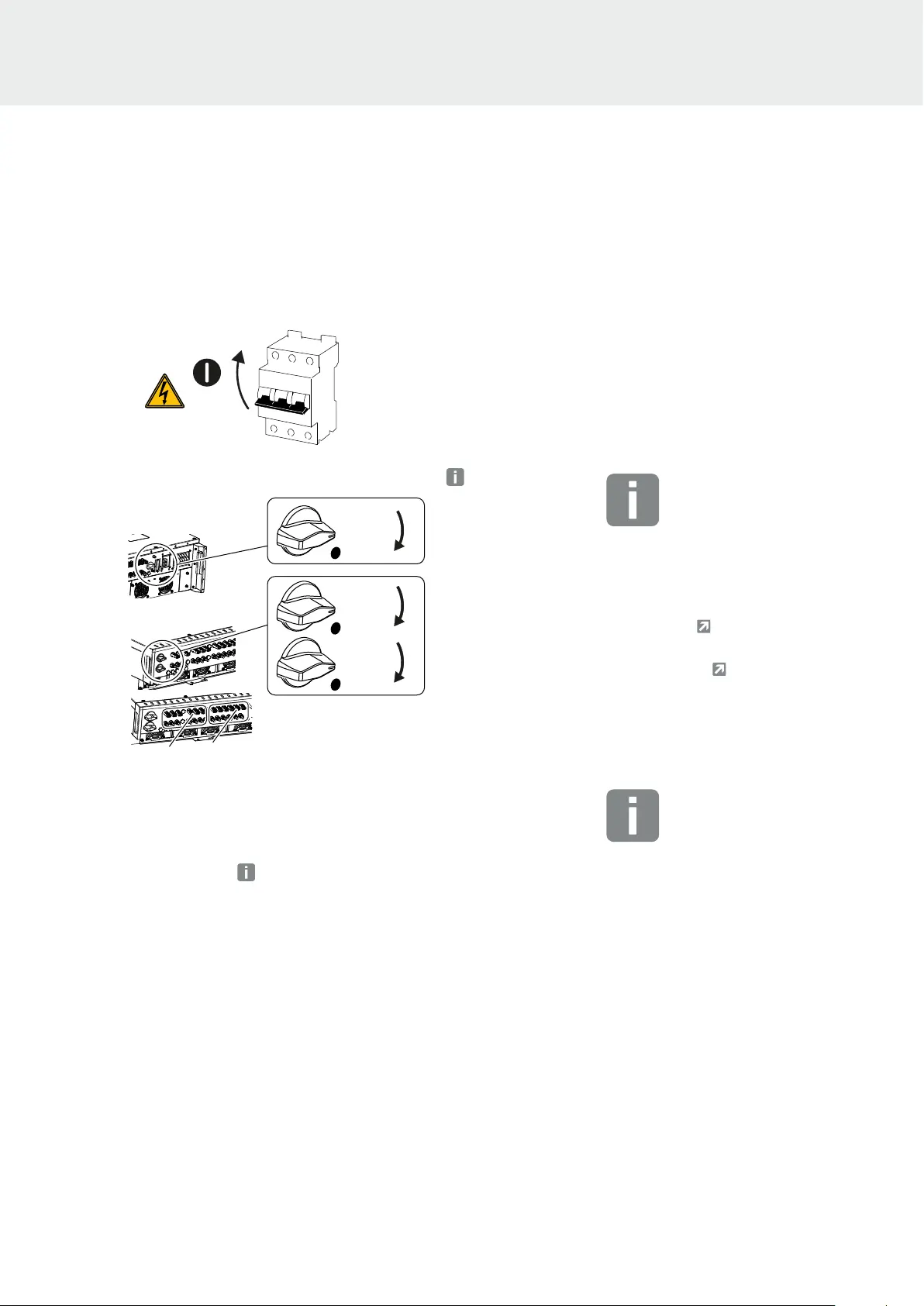

1. Activate supply voltage via the line circuit breaker.
ON
2. Move DC switch on inverter to ON position.
PIKO CI 30
PIKO CI 50/60
ON
ON
ON
SW2
(DC9-14)
SW1
(DC2-8)
SW1
SW2
SW1
SW2
P
The inverter starts up.
P
The LEDs light up briefly during start-up.
P
After startup, the LEDs indicate the operating status
of the inverter.
H
The inverter is in operation.
INFO
As soon as one of the two DC switch-
es on the PIKO 50/60 is set to ON,
the inverter starts up.
The DC switch SW1 switches the DC
inputs DC2-8.
Ch. 8.2
The DC switch SW2 switches the DC
inputs DC10-16.
Ch. 8.2
INFO
When the inverter is commissioned
for the first time, it goes into the O
(Shutdown) status.
When this happens, first carry out
initial commissioning.
