58
© 2021 KOSTAL Solar Electric GmbH
Installation
1
Inverter
2
RS485 interface for inverter
3
RS485 interface for KOSTAL Smart Energy Meter
4
KOSTAL Smart Energy Meter
5
Feed meter
6
Public grid
7
Read the operating instructions for the KOSTAL
Smart Energy Meter
8
Set RS485 termination in KOSTAL PIKO CI app to
ON
9
Use a current transformer for currents above 63 A.
Read the operating manual for the KOSTAL Smart
Energy Meter

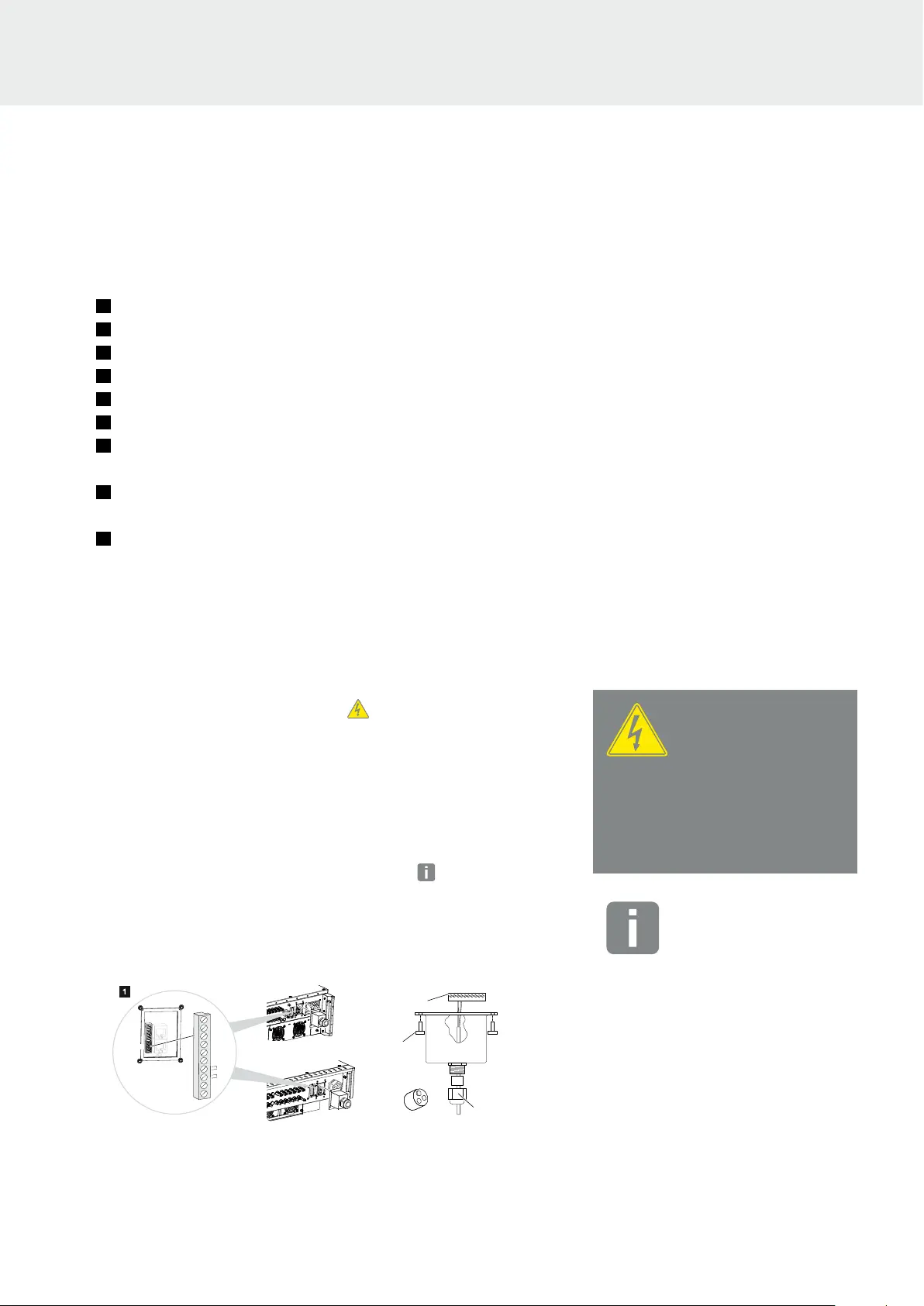

Connecting the KOSTAL Smart Energy Meter
1. De-energise the mains cable.
2. Install the KOSTAL Smart Energy Meter as shown at
the grid connection point in the house grid.
3. Correctly route the communication cable from the
inverter to the control cabinet and connect it to the
KOSTAL Smart Energy Meter according to the wiring
diagram provided by the manufacturer.
4. Feed the communication cable through the cover of
the inverter for COM2 connection panel. Seal con-
nection with sealing ring and union nut.
1
10
8 Nm
1,5 Nm
Plug RS485
COM
PIKO CI 50/60
PIKO CI 30
RS485 B IN
RS485 A IN
1
2
3
4
5
6
7
8
9
10
RS485
DANGER
RISK OF DEATH DUE TO ELECTRI-
CAL SHOCK AND DISCHARGE!
De-energise all devices and secure
them against being switched on
again.
INFO
Requirements of communication
cable:
n Wire cross section:
0.34 - 1.5 mm
2
(rigid)
0.34 - 1.0 mm
2
(flexible)
n Length max. 30
n Length of stripped insulation ap-
prox. 5 mm
3
2
3
4
5
6
7
8
9
10
1
