Installation
8 Nm
1,5 Nm
RJ45
COM
*CAT 7
PIKO CI 50/60
PIKO CI 30
LAN* LAN*LAN*
LAN
LAN
MasterSlave Slave

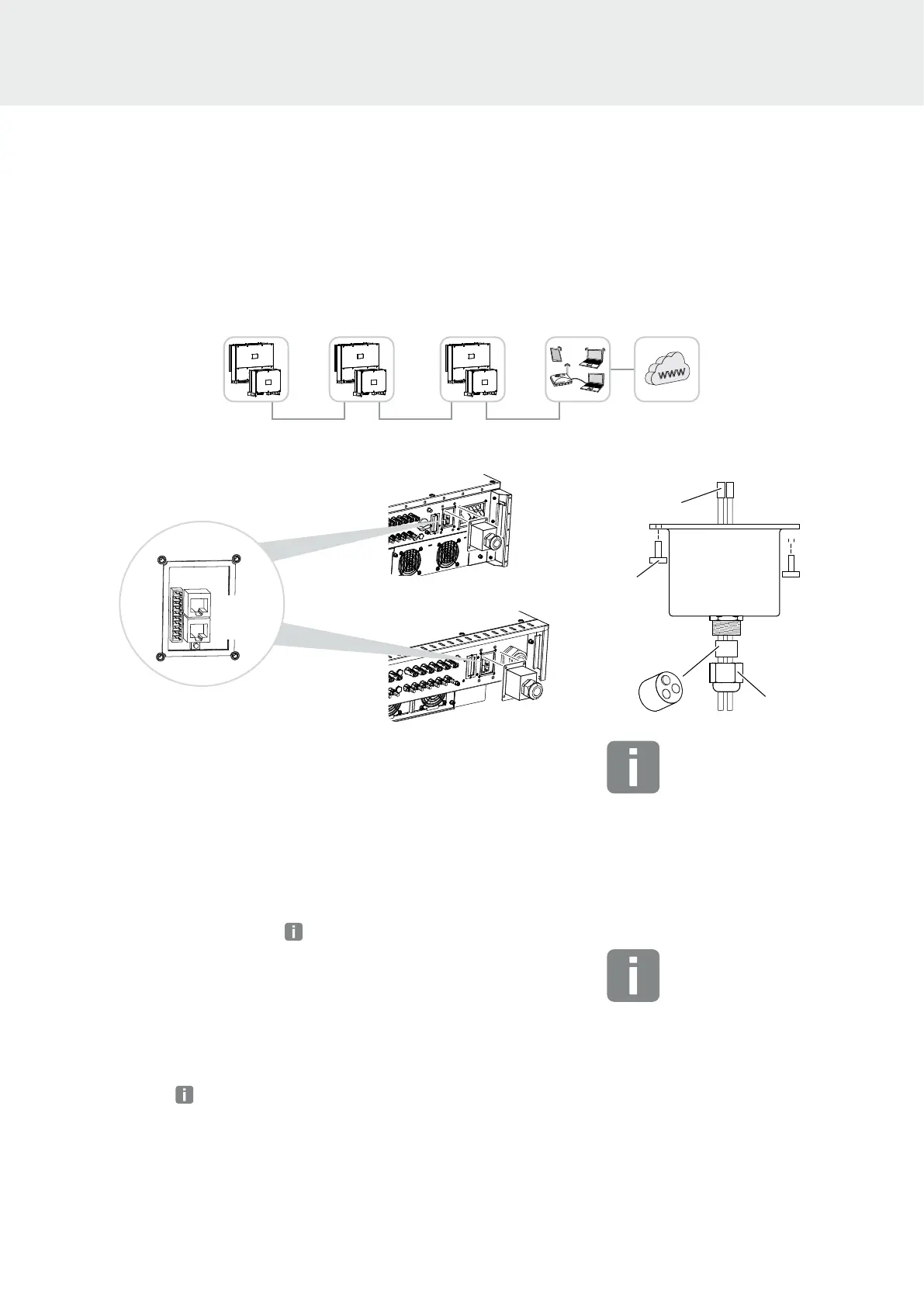

Fig. 22: Connecting inverter to LAN / Ethernet cable
1. De-energise the inverter.
2. Lead the Ethernet cable through the COM2 cover
and seal it with sealing ring and union nut.
3. Tighten union nut to the prescribed torque.
Torque: 8 Nm (M25).
4. Connect Ethernet cable to one of the LAN sockets
in the COM2 connection panel. The second LAN
socket is used to continue the network connection to
further inverters.
5. Connect LAN/Ethernet cable to the computer or
router.
INFO
Use an Ethernet cable of category 7
(Cat 7, FTP) with a maximum length
of 100 m as a network cable (Ethernet
10BaseT, 10/100 MBit/s).
INFO
After commissioning, the settings for
the Ethernet connection can still be
configured in the KOSTAL PIKO CI
app.
This includes, for example, the setting
for IP mode, in which acquisition of
an automatic IP address can be set.
3.8 Communication via LAN
3
2
3
4
5
6
7
8
9
10
1
