© 2021 KOSTAL Solar Electric GmbH
Installation
1
2
3
4
5
6
7
8
9
10
COM1 COM2

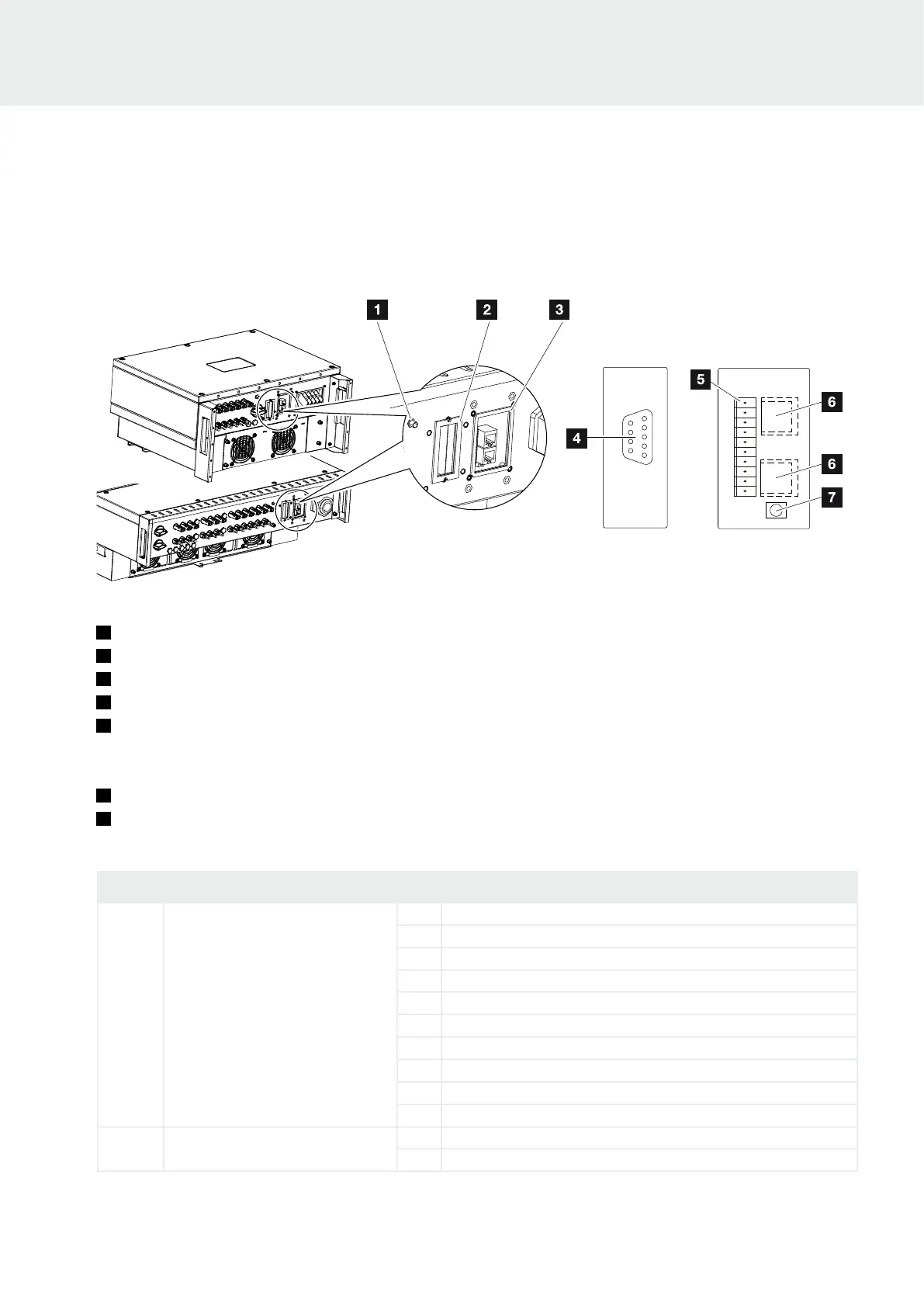

Fig. 19: Communication connections
1
WiFi antenna
2
COM1 connection panel
3
COM2 connection panel
4
Socket for communication module
5
Connector strip for communication interface with
RS485 interface, digital inputs for ripple control
receiver and grid and system protection connection
6
LAN connection
7
Reset button for commissioning address (WLAN)
Item Designation Pin Explanation
5 Communication interface
1 GND (ground) for Remote and DI1…4
2 Remote: Central system protection
3 DI4: Input 4
4 DI3: Input 3
5 DI2: Input 2
6 DI1: Input 1
7 RS485/Modbus interface B (input, data –)
8 RS485/Modbus interface A (input, data +)
9 RS485/Modbus interface B (output, data –)
10 RS485/Modbus interface A (output, data +)
6 RJ45 terminal
– LAN connection 1
– LAN connection 2
3.5 Overview of communication connections
3
2
3
4
5
6
7
8
9
10
1
