16

EN

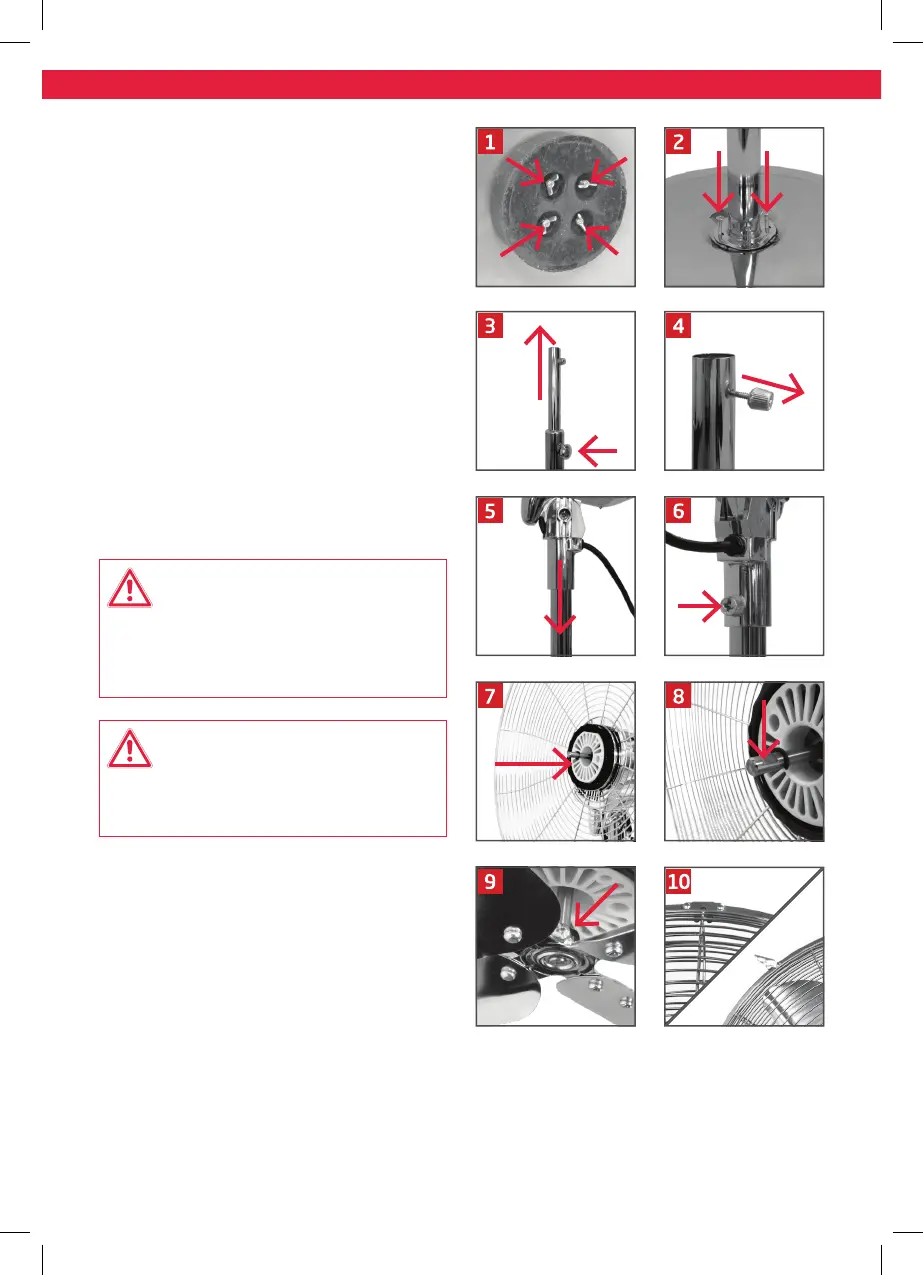

Assembly

1. Apply the weight to the base.

2. Install the extension pole with the screws.

3. Pull up the extension pole and secure it by

tightening the thumb screw.

4. Remove thumb screw from the upper end

of the extension pole.

5. Attach the motor unit to the extension

pole.

6. Install and tighten the thumb screw to hold

the motor unit in place.

7. Install the rear guard with the handle

pointing up and fix it with the nut.

8. Slide the fan blade onto the motor shaft,

aligning and tightening the screw to the

groove.

9. Hook the front guard onto the rear guard.

10. Install the screws and nut to lock the guard.

Close the clips.

Caution

The product must not be disassembled

during operation, general care, cleaning and

user maintenance.

Caution

Never connect the product to the mains

when it is not completely assembled.
