INSTALLATION

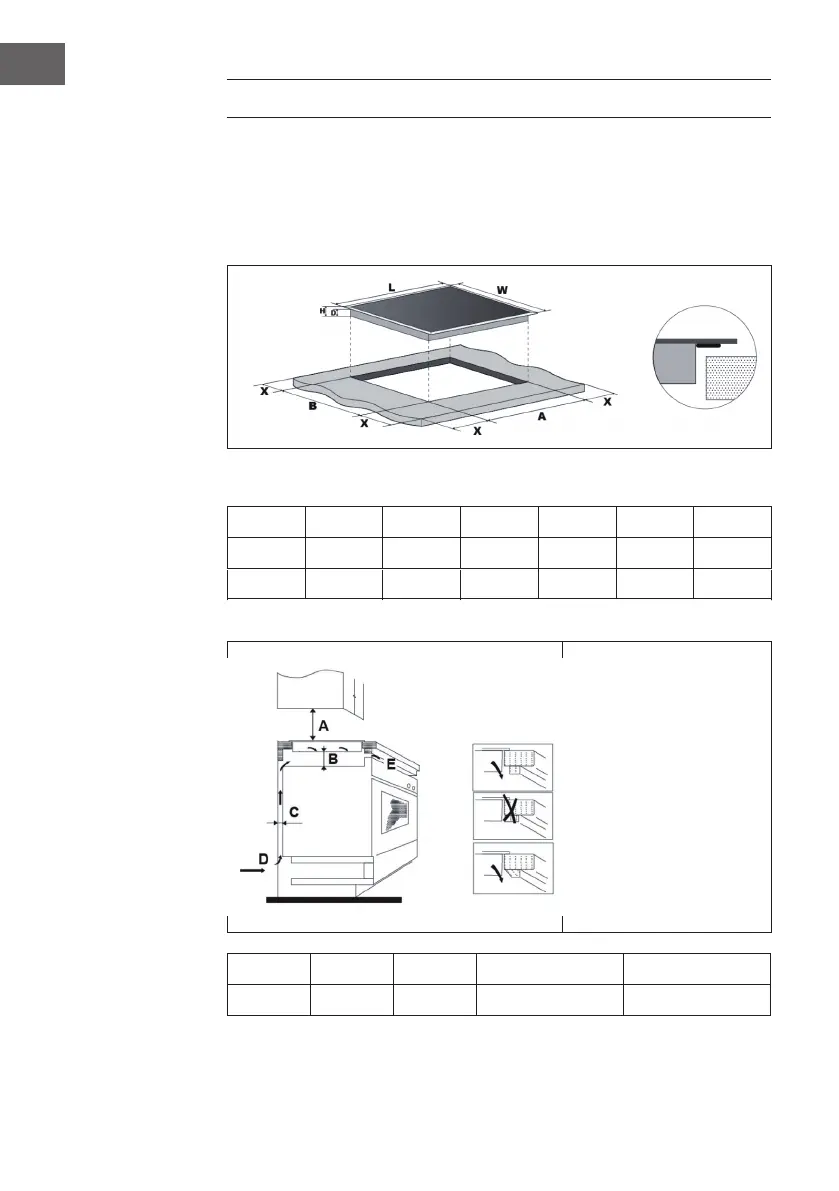

Cut out the work surface according to the sizes shown in the drawing. For the
purpose of installation and use, a minimum of 50mm space shall be preserved
around the hole. Be sure the thickness of the work surface is at least 30mm. Please
select heat-resistant work surface material to avoid larger deformation caused by
the heat radiation from the hotplate. As shown below:
Dimensions and Spaces (both items)
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 52 47 560 490 50
Under any circumstances,
make sure the ceramic
cooker hob is well ventilated
and the air inlet and outlet
are not blocked. En- sure
the ceramic cooker hob is in
good work state. As shown
below
Note: The safety distance
bet- ween the hotplate and
the cup- board above the
hotplate should be at least
760 mm.
A (mm) B (mm) C (mm) D E
760 50 (min.) 20 (min.) Air intake Air exit 5 mm
900 380
52 47
870 350
50
