Variant 2

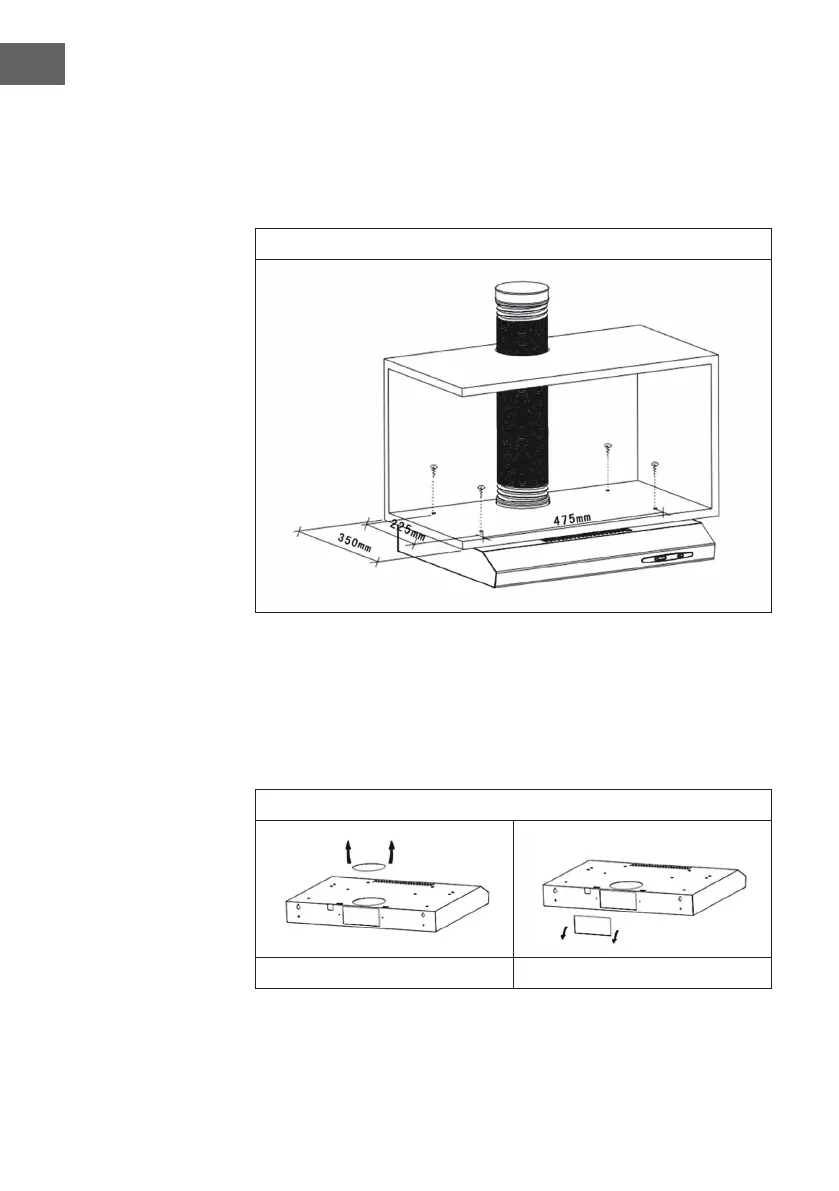

1. Drill four holes with a diameter of 6 mm on the underside of the kitchen
cabinet. If you have ordered a pipe extension, saw/drill the corresponding
openings for the exhaust pipe (see Fig. 5). 2.
2. First pass the exhaust pipe through and then attach the hood.
5
Notes
• The tube extension shown is an optional part and not included.
• Please remove the protective lm before you start the installation.
• There are two options for ventilation (horizontal and vertical).
• Depending on which option you choose, you will need to remove/insert one of
the covers (see Figure 6).
6
A B
