36
EN

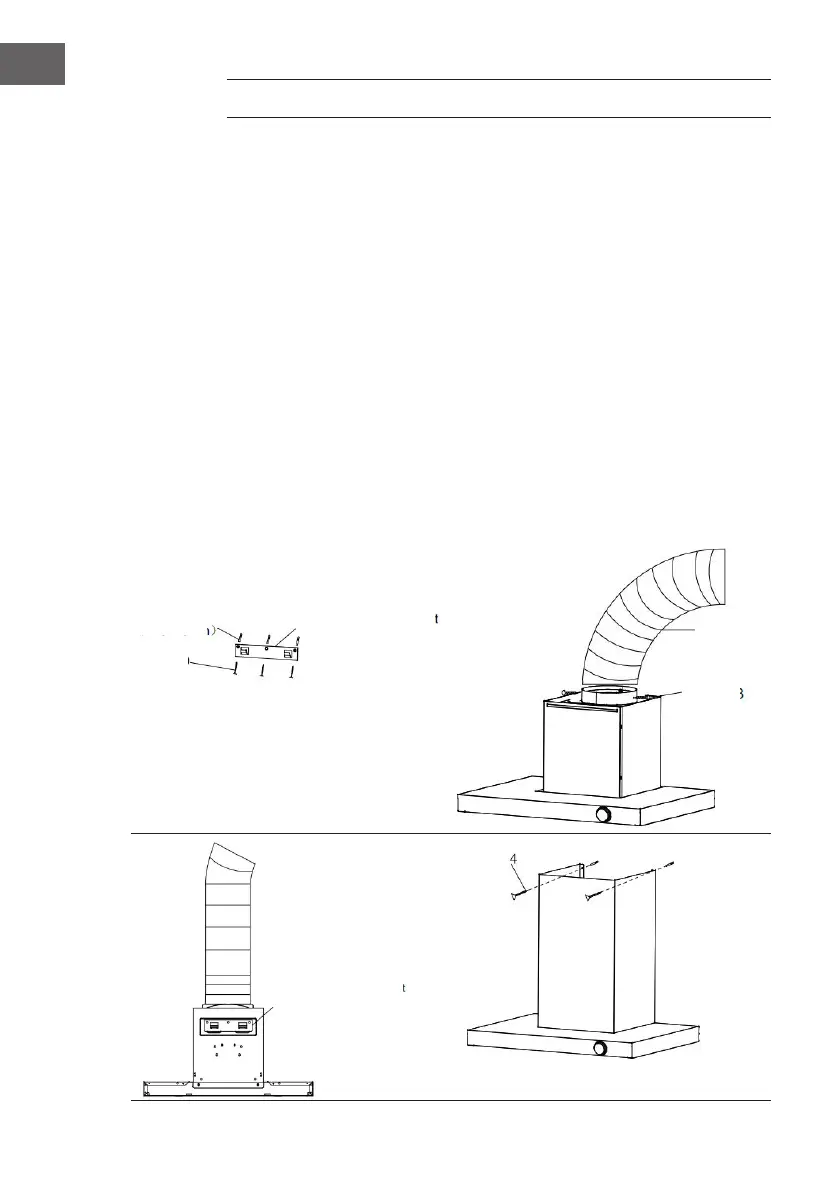

COOKER HOOD INSTALLATION
The minimum hood height above the hob must not be less than 650 mm. A
maximum of 750mm above the hob is strongly recommended to best capture
cooking vapours. Distance above 750mm is at the installer‘s and user‘s discretion,
subject to ceiling height and ue length.
1. Drill 3 holes in the wall and t 3 plastic pipes (ø6x40), use (3) ST5x50 screws to
x the top of the hood body.
2. Fix the exhaust pipe in the air outlet adapter and use (2) ST2,9x8 screws to
x. The exhaust pipe is not included in the scope of delivery and must be
purchased seperately.
3. Hang the appliance using the hood bracket.
4. Carefully place the decorative chimney bottom into the recessed area of the
hood body top. Drill 2 holes in the wall and t 2 plastic pipes (ø7x27). Use (2)
ST2.9x14. Fix in chimney cover I above, use (2) M4x6. Fix in chimney cover I
below.
5. Carefully slide the top of the decorative chimney down into the bottom of the
decorative chimney. Drill 2 holes in the wall and t 2 plastic pipes (ø6x40).
Fasten the chimney bracket to the wall using (2) ST4.2X30 screws.
6. Level the hood and secure the chimney with 2 M4x6 screws.
7. Drill 2 holes in the wall and t 2 plastic pipes (ø6x40), using (2) ST4.2x30 to x
the hood body underneath.
Plastic tube
ø 6x40 mm
Hood mounting
bracket
ST 5x50
ST 2.9x8
Duct
Hood mounting
bracket
ST 2.9x14
Plastic tube
ø7x27 mm
