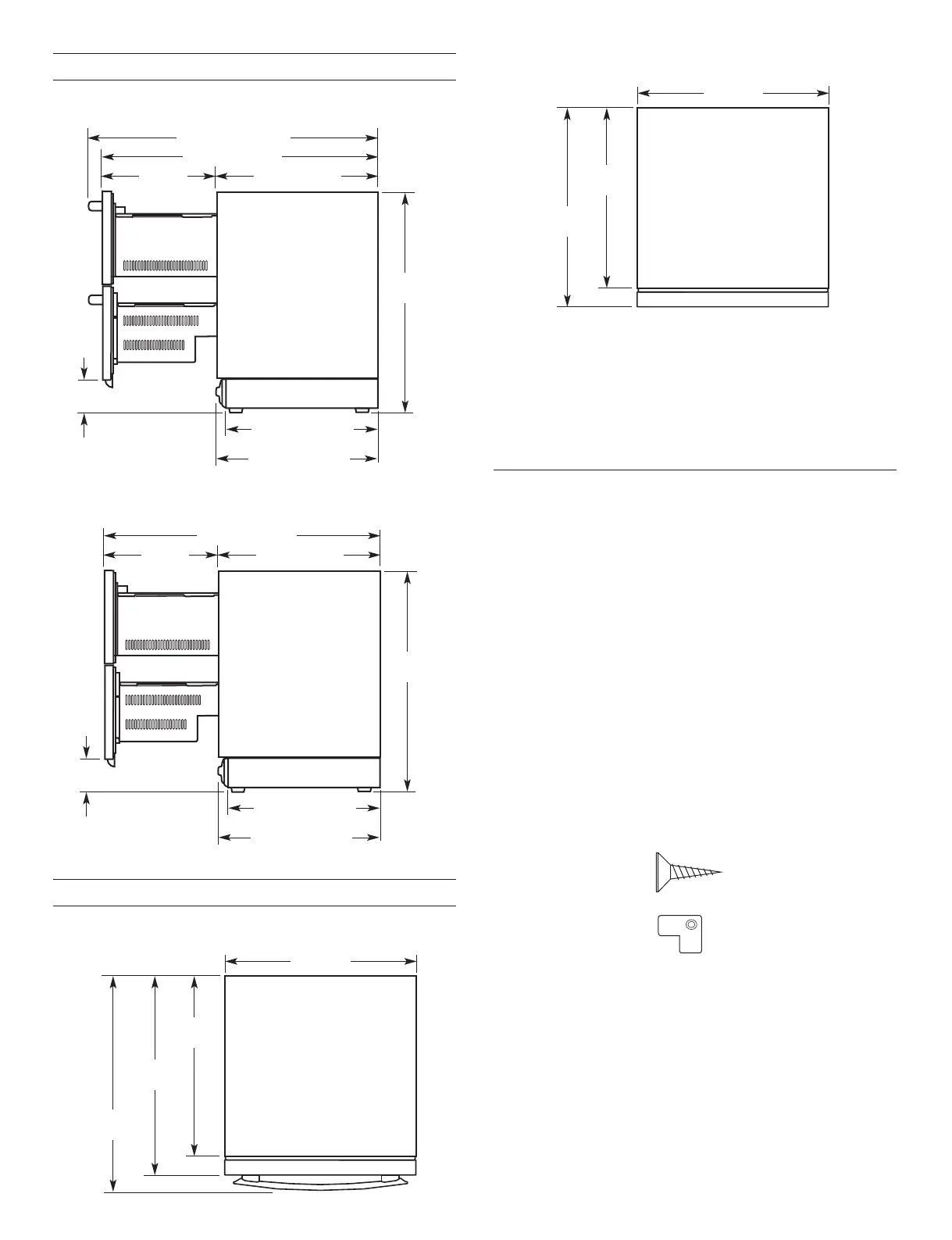

Drawer depth dimensions:
Style 1 - Stainless steel (side view)
Drawer width dimensions
Style 1- Stainless steel (top view)
Style 2 - Overlay (side view)
Style 2- Overlay (top view)
Custom Overlay Drawer Panels
If you plan to install custom wood panels, you will need to
create the panels yourself or consult a qualifi ed cabinetmaker
or carpenter. See dimension drawings for panel specifi cations.
IMPORTANT:
The thickness of the overlay panels must be 3/4”
(1.9 cm).
To avoid damage to the drawers, each overlay panel must
not weigh more than 10 lb (4.54 kg).
Do not exceed the height dimension for the overlay panels.
Panels that exceed the height dimension may damage the
refrigerator drawers, cabinets or countertop.
The width of the overlay panels may vary according to the
width of the cabinet opening.
For the installation of the customer panel, you will need the
following parts:
8 Wood screws
8 Brackets
A- M4 x 32
B- Left and right brackets
5
*
Add 3/4” (1.9 cm) to the height dimension when leveling
legs are fully extended.
**
For custom panel models, this will vary.
21
5
/8"
(55 cm)
23
1
/16"
(58.6 cm)
23
7
/8"
(60.6 cm)
23
7
/8"
(60.6 cm)
21
5
/8"
(55 cm)
23
5
/8"
(60 cm)
25
7
/8"
(65.7 cm)**
34
1
/8"
(86.8 cm)*
4" (10.2 cm)*
16
7
/8"
(42.9 cm)
21
5
/8" (55 cm)
22
1
/4" (56.5 cm)
Without water filter
23
1
/3" (59.3 cm)
With water filter
38.5" (97.9 cm)
34
1
/8"
(86.8 cm)*
39
3
/32" (99.3 cm)
4" (10.2 cm)*
41
1
/2” (105.5 cm)**
17
7
/16"
(44.3 cm)
21
5
/8" (55 cm)
22
1
/4" (56.5 cm)
Without water filter
23
1
/3" (59.3 cm)
With water filter
A
B
05-May-2021 10:43:59 EDT | RELEASED
In some European factories the letter "W" of the part code mentioned herein will be automatically
replaced by the number "4000" (e.g. "W12345678" becomes "400012345678")
