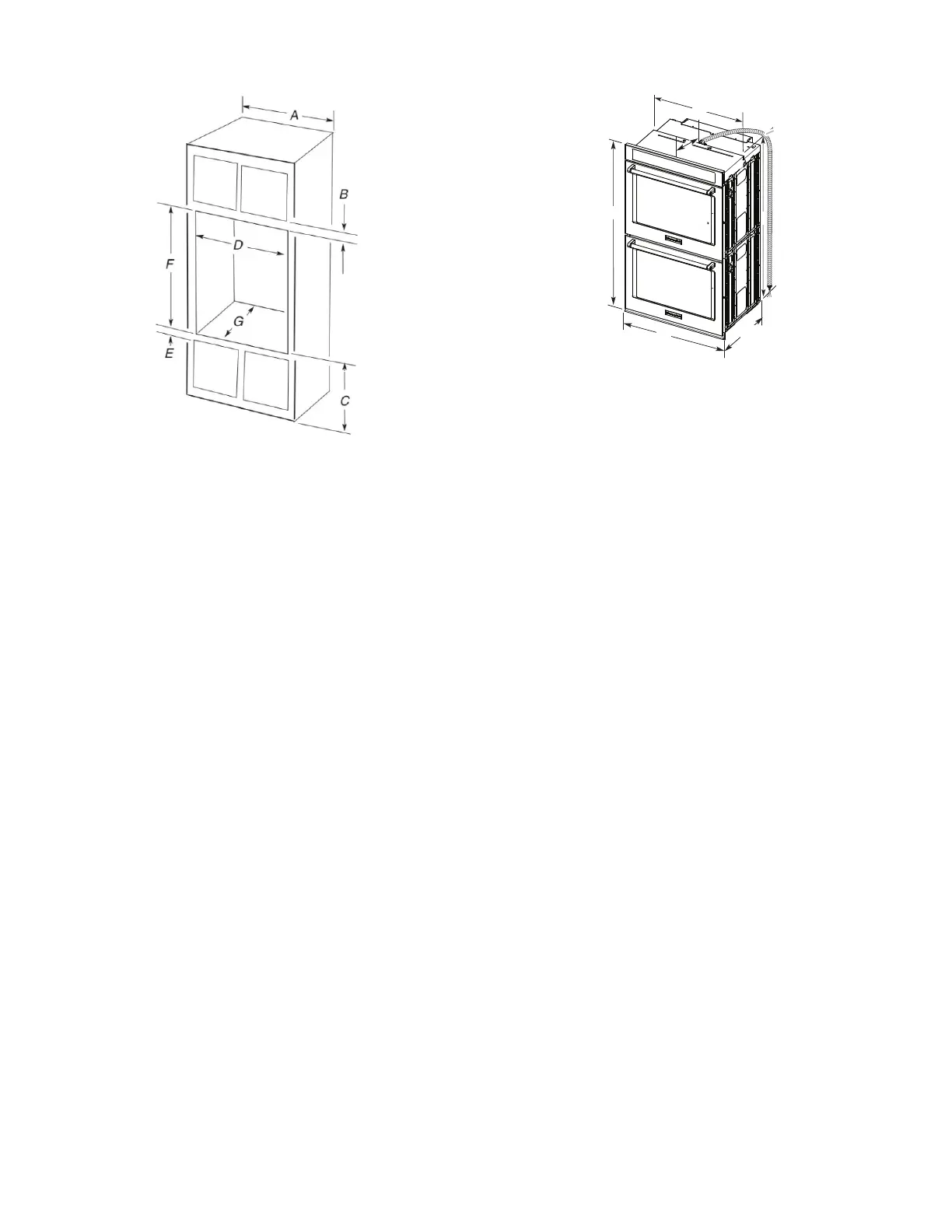

Single Ovens Installed in Cabinet
27" (68.6 cm) models
A. 27" (68.6 cm) minimum
cabinet width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 25
1
/
2
" (64.8 cm) minimum
cutout width
E. 1
1
/
2
" (3.8 cm) minimum
bottom of cutout to top of
cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
30" (76.2 cm) models
A. 30" (76.2 cm) minimum
cabinet width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28
1
/
2
" (72.4 cm) minimum
cutout width
E. 1
1
/
2
" (3.8 cm) minimum
bottom of cutout to top of
cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
*NOTE The cutout height can be between 27
1
/
4
" and 29
7
/
16
"
(69.2 cm and 74.8 cm) for single ovens.
*NOTE Tall shield for installations greater than 28
11
/
16
" (72.9 cm).
Product Dimensions - Double Ovens
C
B
A
E
D
G
F
27" (68.6 cm) models
A. 51
3
/
4
" (131.5 cm) maximum
overall height
B. 25
7
/
16
" (64.6 cm) maximum
recessed width
C. 48
13
/
16
" (124.0 cm) recessed
height
D. 23
1
/
4
" (59.1 cm) maximum
recessed depth
E. 26
3
/
4
" (68.1 cm) overall width
F. 12" (30.5 cm) from back of
control panel to start of strain
relief
G. 66" (167.6 cm) flexible
conduit length
30" (76.2 cm) models
A. 51
3
/
4
" (131.5 cm) maximum
overall height
B. 28
7
/
16
" (72.2 cm) maximum
recessed width
C. 48
13
/
16
" (124.0 cm) recessed
height
D. 23
1
/
4
" (59.1 cm) maximum
recessed depth
E. 29
3
/
4
" (75.6 cm) overall width
F. 12" (30.5 cm) from back of
control panel to start of strain
relief
G. 66" (167.6 cm) flexible
conduit length
