CROSSOVER MOUNTING
Mount the crossover in a location that is easy to access for wiring and tweeter output level adjustment.
Make sure that the crossover will not be exposed to water. The bottom of the car door is not a good
location. If you must mount the crossover in the car door, exercise caution as water can accumulate in the
bottom of the door. Keep the crossover high in the door and shielded from water.

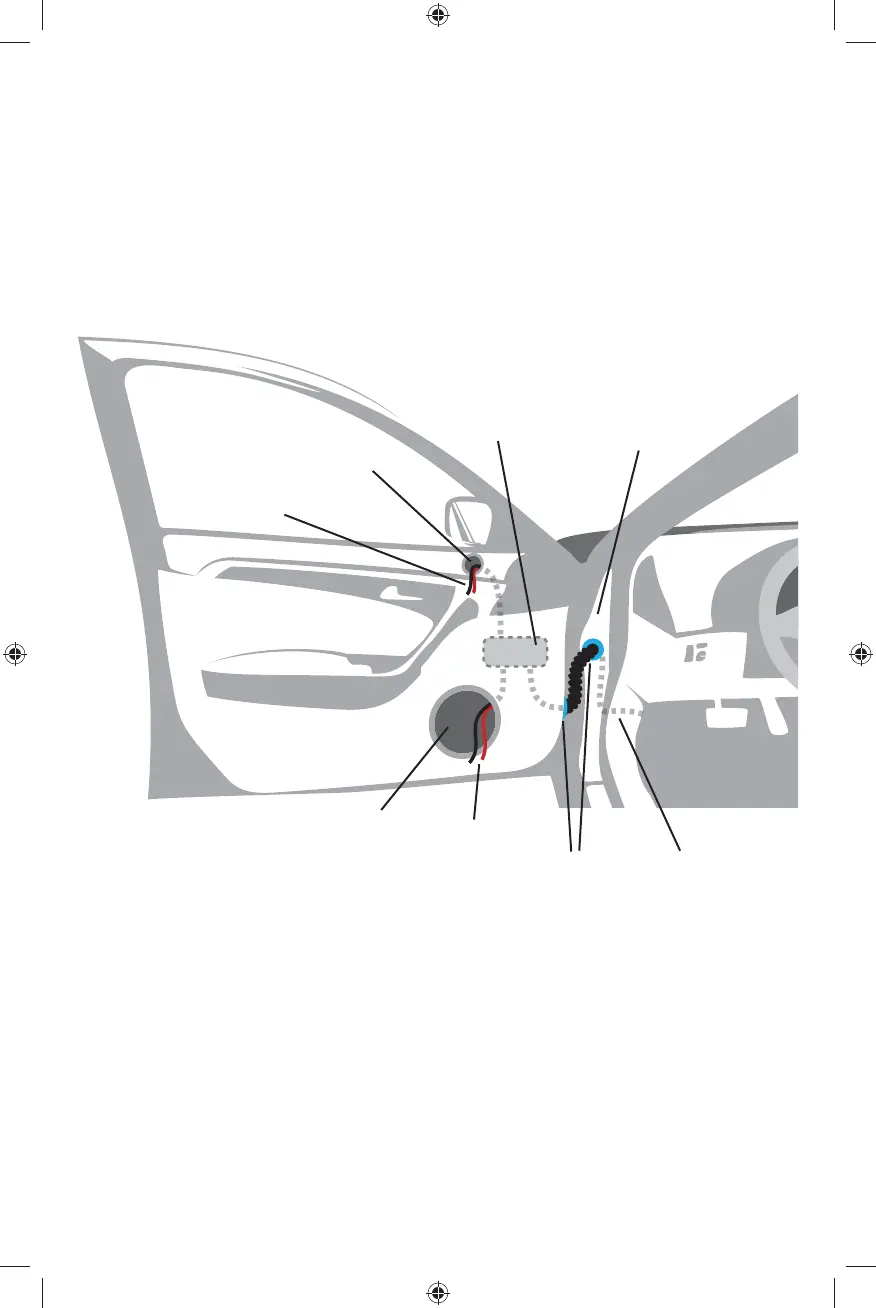

door jamb
QSS crossover.
(mounted inside
door panel)
rubber
grommets
from amplifi er or
source unit
woofer mounting hole
tweeter mounting hole
to woofer
terminals
to tweeter
lead wires
The speaker wire should be kept away from sharp edges and avoid the possibility of getting pinched by
the door. An existing grommet in the door jamb is the ideal place to run the speaker wire. If the factory
hole and grommet do not exist or are inaccessible, you must drill a hole to run the speaker wire through
the door jamb. Be careful not to drill into other wiring or existing door mechanisms. Any time a wire is run
through a hole, it is necessary to insert a rubber or plastic grommet to protect the wire from damage.
