HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is
necessary for your safety and also the proper programming of the control
system.
To properly install your ceiling fan, follow the steps below.
Step 1. Before attaching the fan to outlet box (not included), ensure the outlet
box is securely fastened to at least two points to a structural ceiling member
(a loose box will cause the fan to wobble). Pass the 120 volt supply wires from
the ceiling outlet box through the center of the ceiling mounting bracket. Install
mounting bracket to outlet box in ceiling using the screws and washers included
with the outlet box. (Fig. 5)
Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain
for later use. Remove the hanger ball from the downrod assembly by loosening
set screws, removing the cross pin, and twisting ball o the rod.( Fig. 6)
NOTE: Make sure to keep loosened hardware separate to avoid confusion
during installation.
Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)

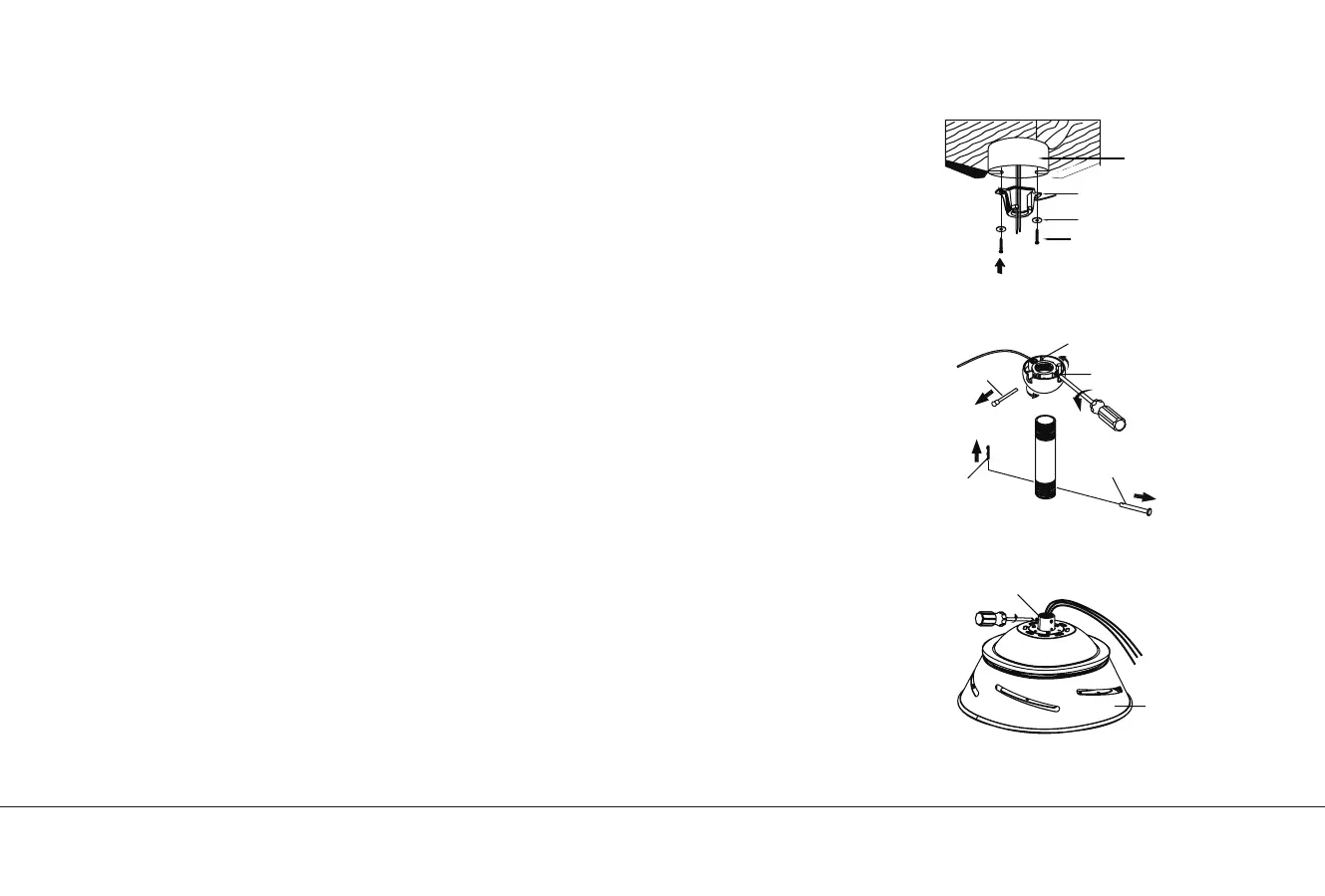

Fig. 5
Fig. 6
Fig. 7
Hairpin
Outlet Box
Ceiling Mounting Bracket
Flat Washer
Screw
Hanger Ball
Set Screw
Cross Pin
Clevis Pin
Motor Body
Set Screw
56" Verdi LED | 7
