52" True | 15
INSTALLING THE COOL TOUCH
™
WALL PLATE
CAUTION: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel.
WARNING: All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a qualified
licensed electrician.
Select a location to install your CoolTouch
™
wall plate. You can replace an existing wall switch, or
install the wall plate on ANY flat surface.
Option 1: Install the wall plate using an existing wall switch outlet box.
CAUTION: Switch installation must comply with all local and national electric
code. Make sure the electrical power is TURNED OFF at the main panel before
continuing.
Step 1. Remove the existing wall plate and the old switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back inside the outlet box. (Fig. 17)
Step 2. Install the metal plate and CoolTouch™wall plate to the existing wall outlet box with 4
screws provided. Insert the two plastic plugs into the wall plate. (Fig. 18)
Option 2: Install the wall plate on ANY flat surface.
Step 1. Select the desired location and use the CoolTouch™wall plate to mark the location for the
mounting holes.
Step 2. Use the drywall anchors and screws provided to finish the installation.
INSTALLING THE TRANSMITTER
Step 1. Insert the transmitter into the wall plate by inserting the bottom of the transmitter
first and then pressing the top of the transmitter into the pocket. The transmitter will fully
function from this location or you can remove the transmitter and use it as a hand held device.
(Fig. 19)
Step 2. To remove the transmitter from the wall plate, push the release button and the
transmitter will fall into your hand.

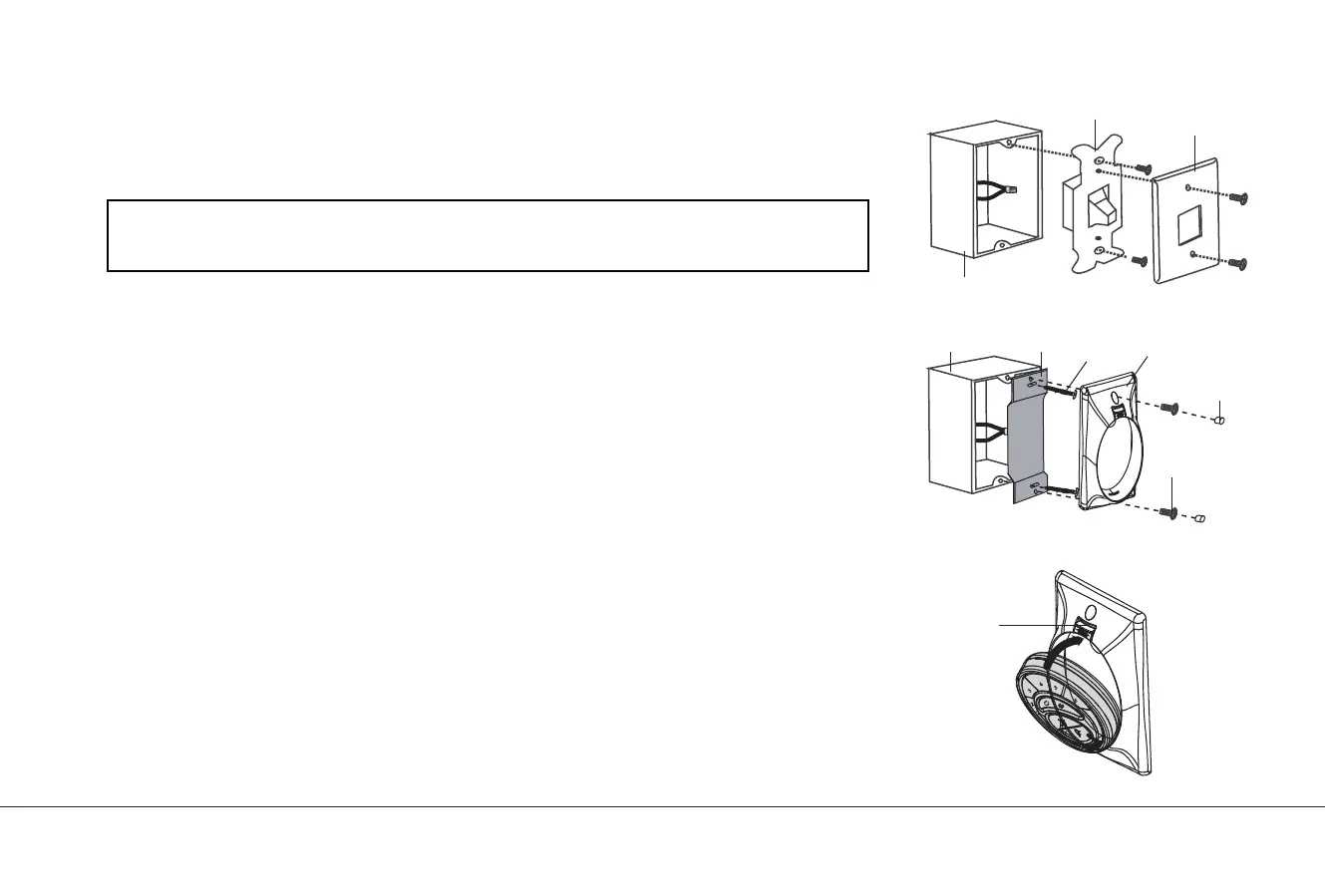

Fig. 17
Fig. 18
Fig. 19
Switch
Wall Plate
Outlet Box
Outlet Box Metal Plate
Screws
CoolTouch
™
Wall Plate
Screws
Plastic
Plugs
Release
Button
