ELECTRICAL CONNECTIONS (continued)
WARNING: Carefully read and retain this Instruction Manual for
future reference.
WARNING: To avoid possible electrical shock, be sure the
electricity is turned o at the main panel by removing the fuse
or opening the circuit breaker.
WARNING: This control is designed for use with “DC Motor
Ceiling Fans” ONLY. DO NOT use with any other type of
electrical appliance.
WARNING: All wiring must conform to national and local
electrical codes. If you feel you do not have enough electrical
knowledge, have a licensed electrician install the control.
WARNING: The amperage for your fan should not exceed 1A.
The total wattage for the lights 40W.
Make each of the wire connections illustrated in Fig. 13. Secure each with
the wire nuts provided.
Use the wire connectors supplied with your fan. Secure the
connectors with electrical tape. Make sure there are no loose
wire strands or connections.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire connections.
After making all wire connections, turn the wire connecting nuts upward,
and push the wiring into the outlet box. Separate the white (neutral) and
green (ground) wire connections to the one side of the outlet box, and the
black (hot) wire connections to the other side of the outlet box.

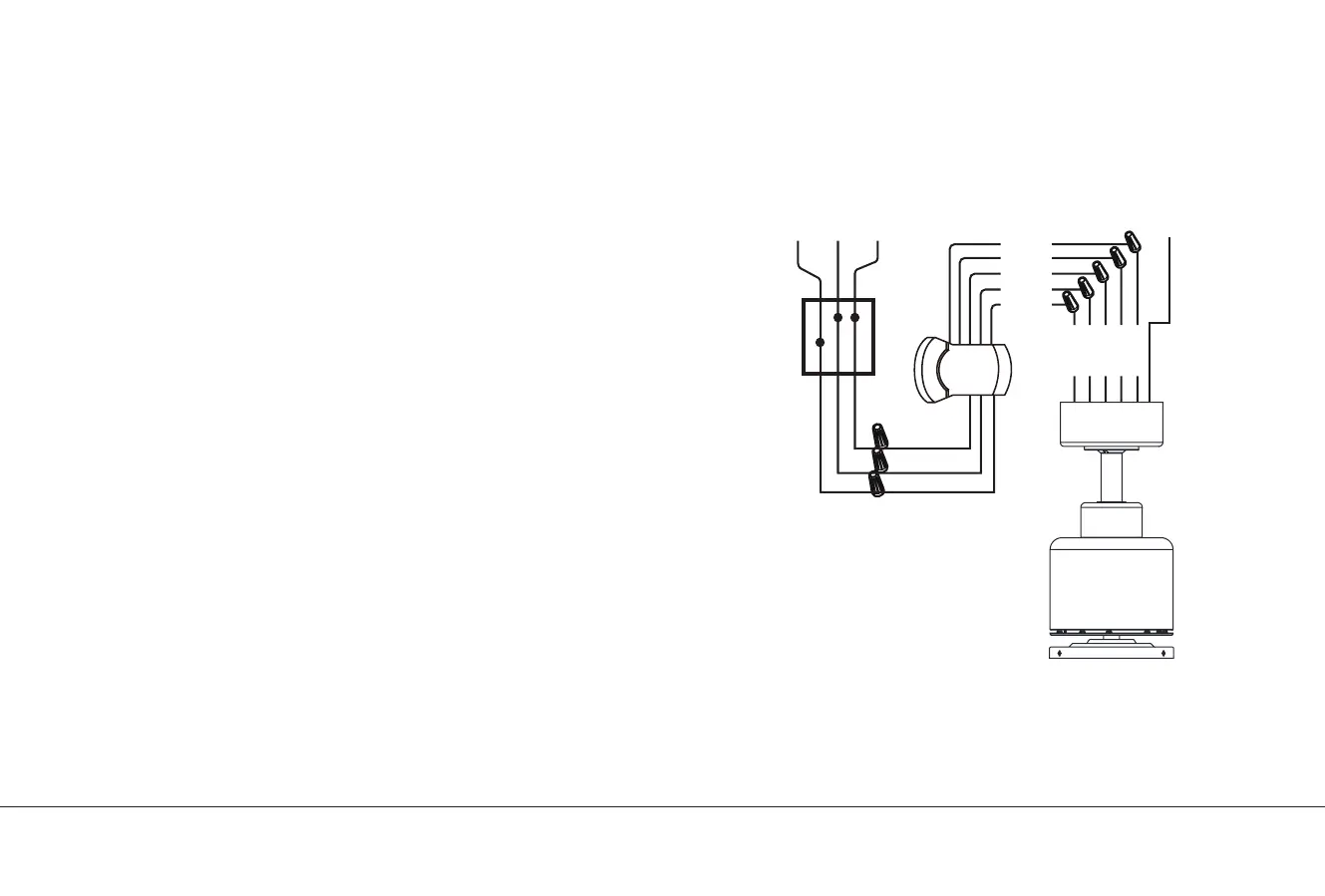

Fig. 13
BLACK WHITE
GROUND
CONDUCTOR
Outlet
Box
Receiver
YELLOW/GREEN
GROUND
WHITE
BLACK
YELLOW
GRAY
RED
WHITE
BLUE
BLUE
WHITE
RED
GRAY
YELLOW
GREEN
To Household
(Connect the ground wire
on ceiling mounting bracket
to a household ground)
