ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power at
the main circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring. Use the wire
connectors supplied with your fan. Secure the connector with electrical tape. Make sure
there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual, stop
immediately. A professional electrician is recommended to determine proper wiring.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the black
household supply wire as shown in Figure 13.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and white wires
are on one side of the outlet box and the black wires is on the other side.
NOTE: Carefully tuck the wire connections up into the outlet box.

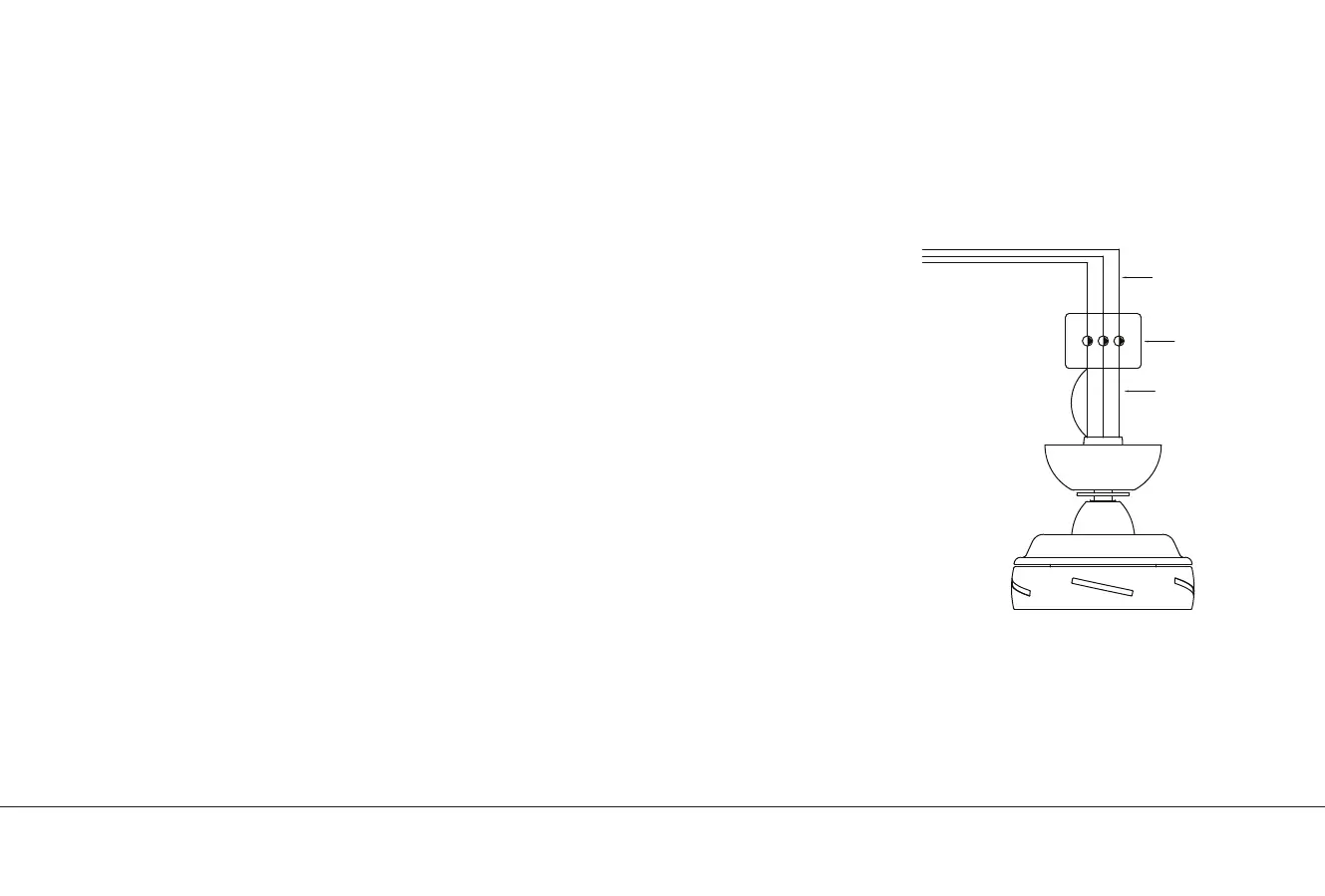

Vac 120V
Supply Wire
Green ground
Wiring box
Ground to
mounting bracket
and downrod
BLACK
WHITE
BLACK
WHITE
GREEN
BLUE
Fig. 13
