8 | KICHLER.COM
Step 4. Carefully feed fan wires and safety cable up through the downrod.
Thread the downrod onto the motor coupling until the clevis pin holes
are aligned. Next, replace the clevis pin and hairpin, then tighten both set
screws. (Fig. 8)
Step 5. Slip the coupling cover, canopy hole cover and canopy onto the
downrod. Carefully reinstall the hanger ball onto the downrod. Make sure
the cross pin is in the correct position and the set screw is tight and the
wires are not twisted . ( Fig. 9)
CAUTION: Ensure all screws are tight before moving to the next step.
INSTALLING THE HANGING SYSTEM
Set Screw
Downrod
Canopy
Hanger Ball
Canopy Hole Cover
Coupling Cover
Downrod
Set Screw
Hairpin Clevis Pin

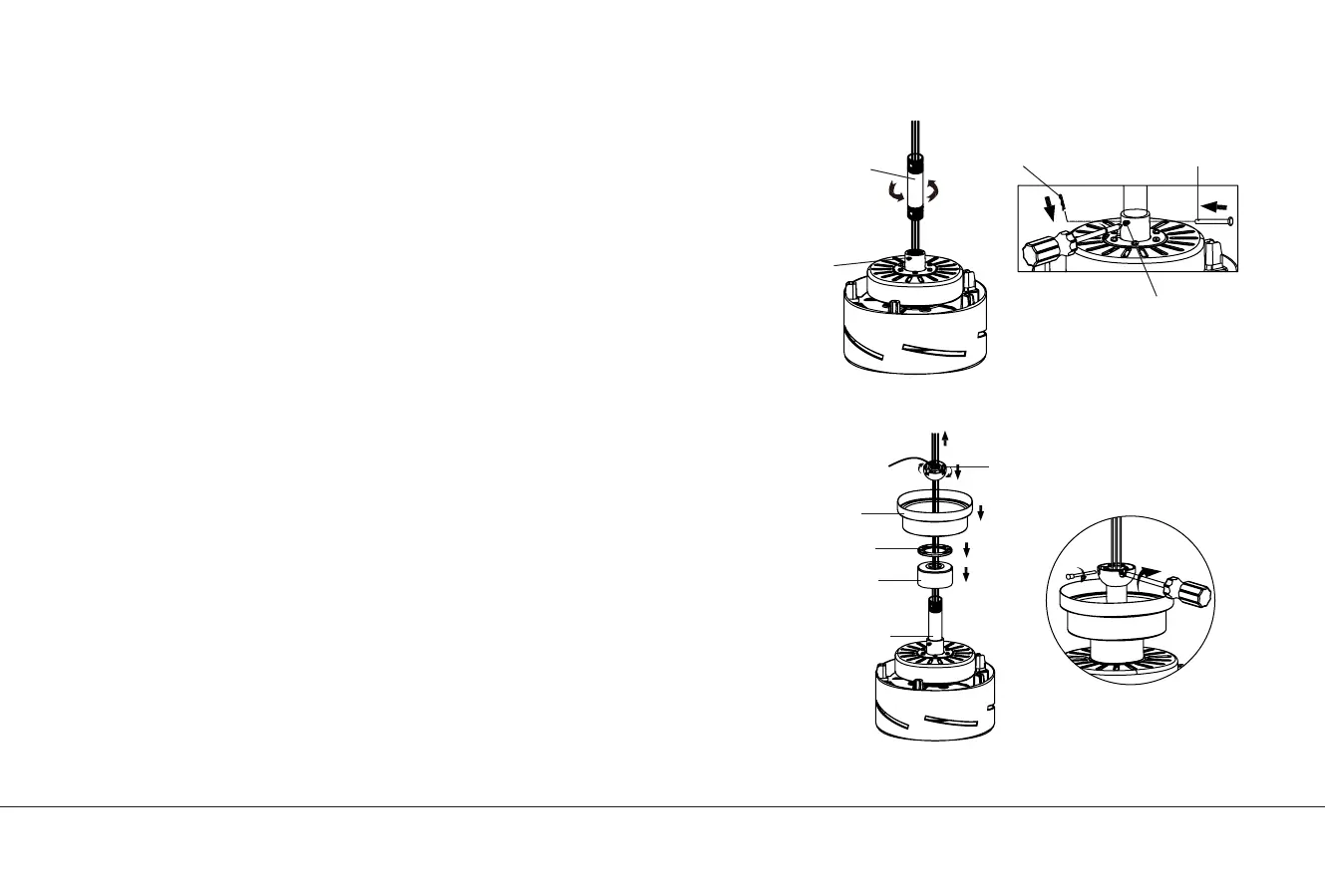

Fig. 8
Fig. 9
