60" Rise | 7

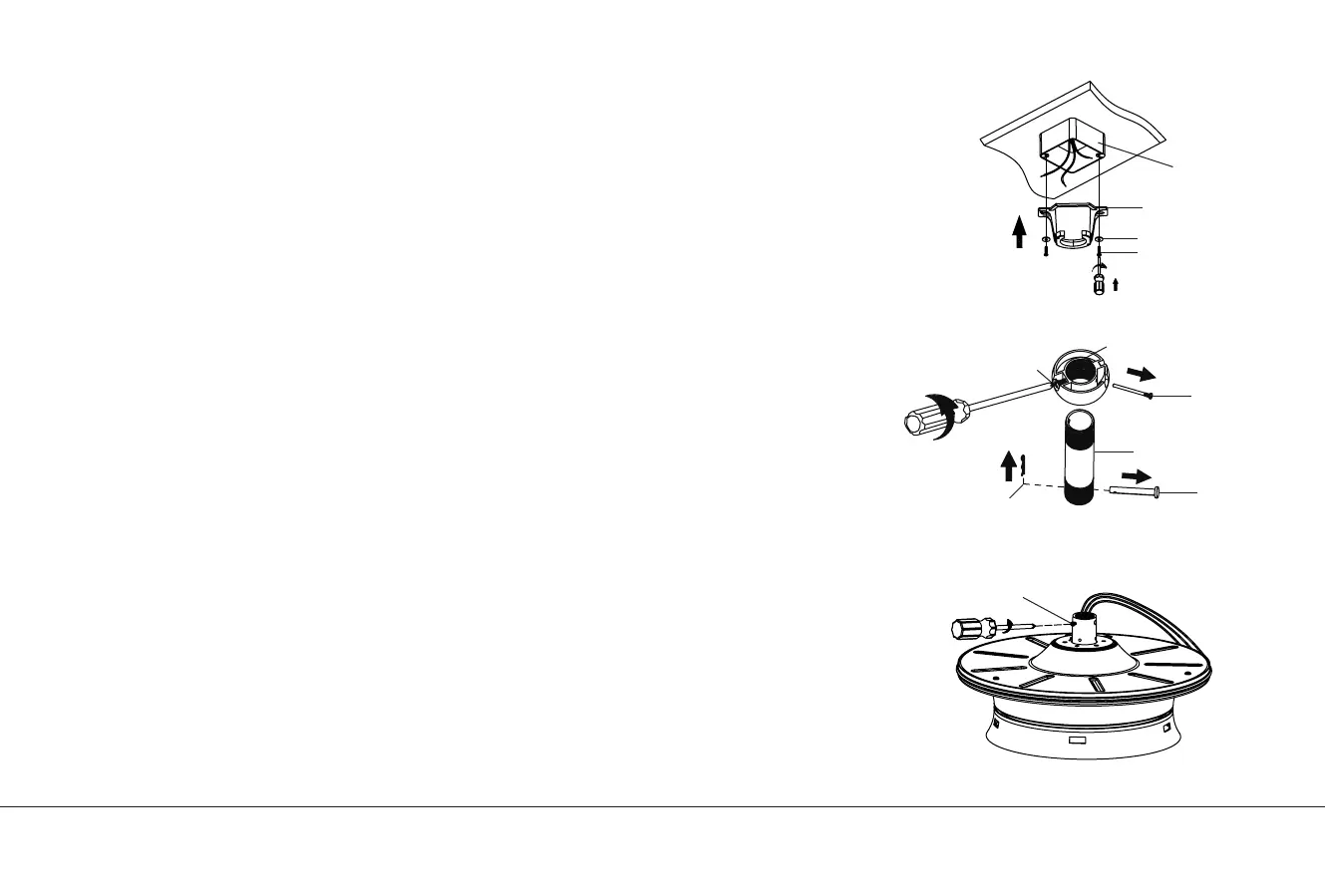

Fig. 5
Fig. 6
Fig. 7
Outlet Box
Ceiling Mounting
Bracket
Flat Washer
Screw
Set Screw
Set Screw
Hanger Ball
Cross Pin
Clevis Pin
Downrod
Hairpin
HANGING THE MOTOR ASSEMBLY
REMEMBER to turn o the power before you begin installation. This is necessary for
your safety and also the proper programming of the control system.
To properly install your ceiling fan, follow the steps below.
Step 1. Before attaching fan to outlet box (not included), ensure the outlet box is securely
fastened to at least two points to a structural ceiling member (a loose box will cause the
fan to wobble). Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. Install mounting bracket to outlet box in ceiling
using the screws and washers included with the outlet box. (Fig. 5)
Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain for later
use. Remove the hanger ball from the downrod assembly by loosening set screw,
removing the cross pin, and sliding ball of the rod. (Fig. 6)
NOTE: Make sure to keep loosened hardware separate to avoid confusion during
installation.
Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)
