60" Rise | 13

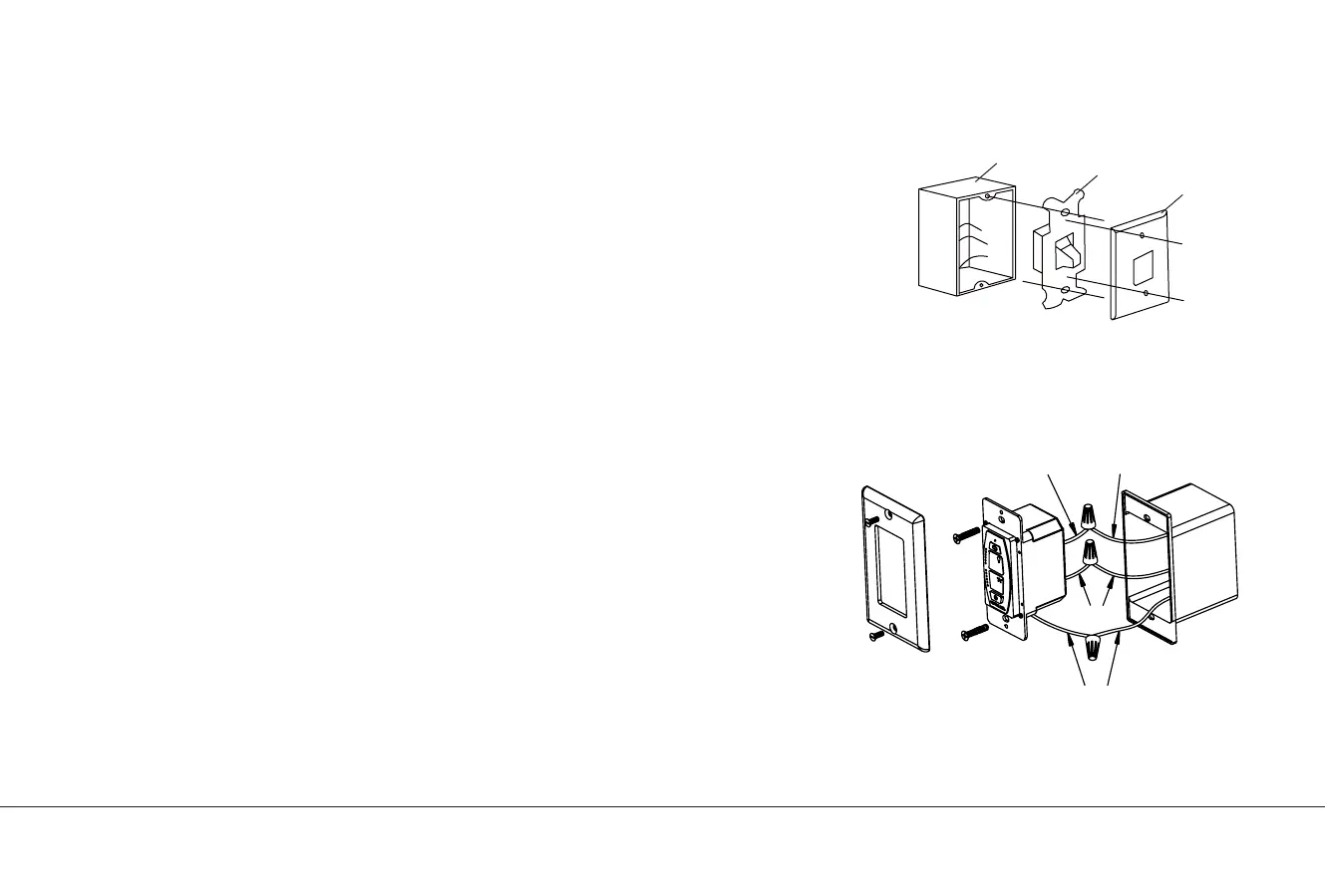

Outlet Box
Switch
Wall Plate
Fig. 15
Fig. 16
INSTALLING THE WALL CONTROL
WARNING: All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a qualified
licensed electrician.
WARNING: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND
NATIONAL ELECTRIC CODES.
WARNING: Shut o main power at the circuit breaker or fuse panel before continuing.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Disconnect wires from existing switch. (Fig. 15)
Step 2. Install the wall control to the outlet box, connecting the wires with wire
connectors provided. (Fig. 16)
*Connect the black wire from the outlet box that supplies power to the wall control to
black wire marked “TO POWER SUPPLY” from wall control.
*Connect the black wire from the outlet box that goes to the fan to black wire marked “TO
FAN” from wall control.
*Connect the bare copper ground wire from the outlet box to bare copper ground wire
from wall control.
*Connect the two white neutral wires in the outlet box together (if not already connected).
Step 3. Secure the wire connectors and make sure there are no loose strands or connections.
Carefully tuck wire connections back inside outlet box and secure the wall control to outlet box
with screws provided. Secure face plate to wall control using the screws provided.
TO POWER SUPPLY AC IN L (Black)
TO FAN
GROUND
