60" PINION
7
INSTALLING THE TOP HOUSING(continued)

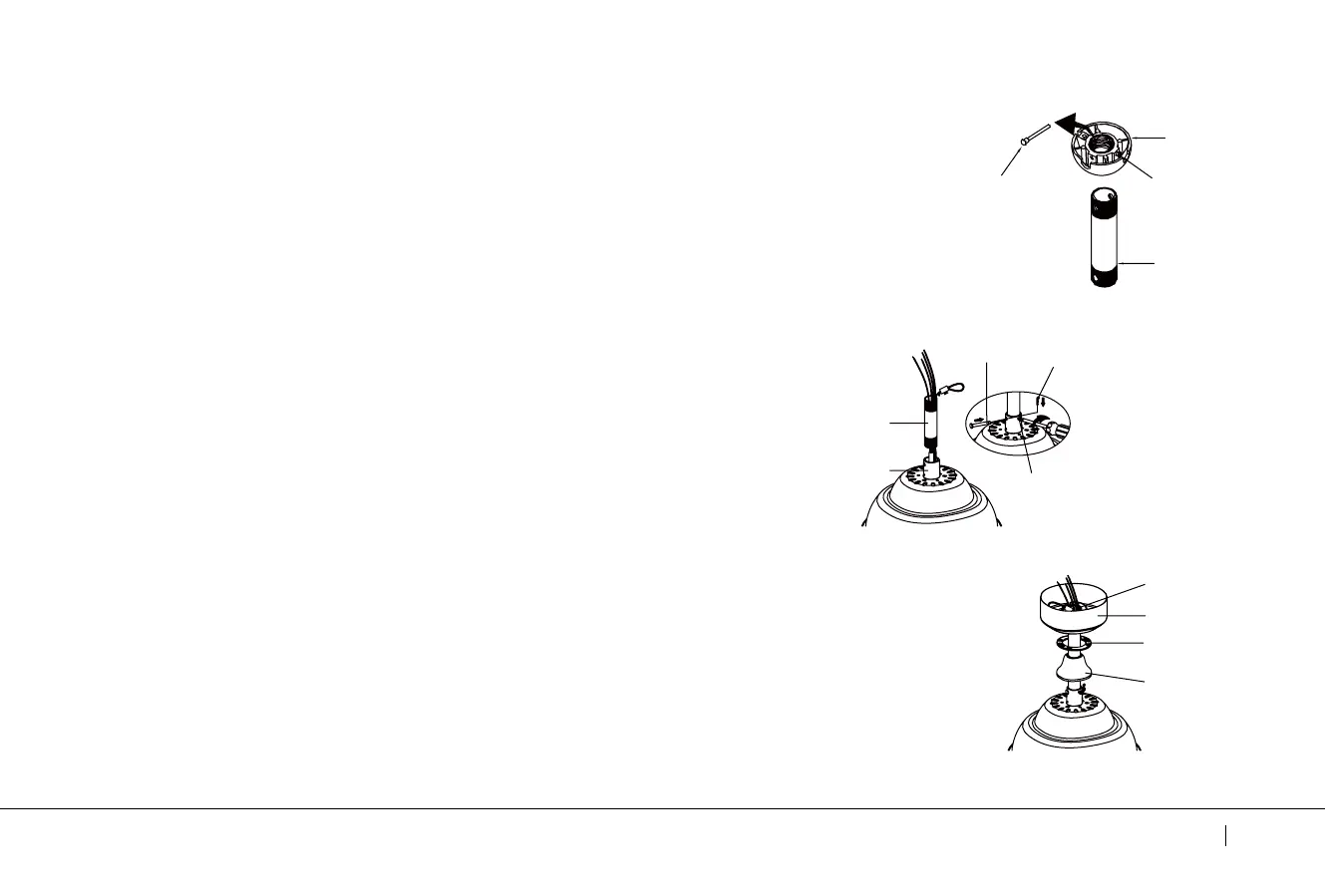

Step 5
. Slip the coupling cover, canopy hole cover and canopy onto the
downrod. Carefully reinstall the hanger ball onto the downrod. Make
sure the cross pin is in the correct position and the set screw is tight
and the wires are not twisted . ( Fig. 9)
Step 4.
Carefully feed the fan wires and safety cable up through the downrod.
Thread the downrod onto the motor coupling until the cross pin holes are
aligned. Next, replace the cross pin and clip, and tighten both set screws. (Fig. 8)
Coupling Cover
Canopy Hole
Cover
Hanger Ball
Canopy
Downrod
Coupling
Set Screw
Clip
Cross Pin
Downrod
Cross Pin
Set Screw
Hanger Ball
Step 3. Remove the hanger ball from downrod assembly by loosening set screws ,
removing the cross pin, and sliding ball o the rod.( Fig. 7)
Fig. 7
Fig. 8
Fig. 9
