INSTALLING THE WALL CONTROL
All wiring must be in accordance with the National Electrical Code and local electrical codes.
Electrical installation should be performed by a qualified licensed electrician. Select a location
to install your wall control. You can replace an existing wall switch, or install the wall control on
ANY flat surface.
NOTE: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND NATIONAL
ELECTRIC CODE .

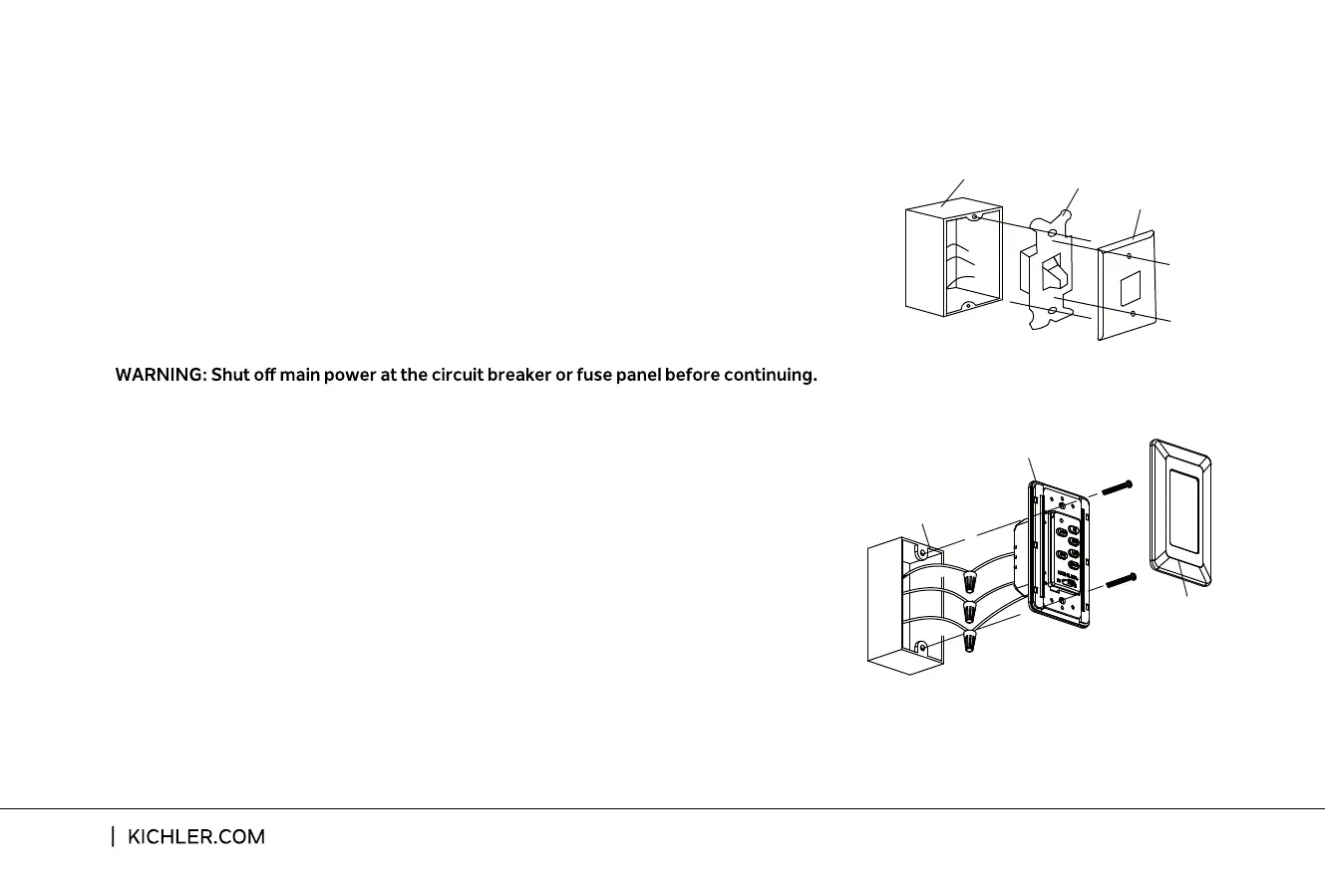

Step 1. Remove the existing wall plate and the old switch from the wall outlet box.
Step 3.
Step 2.
Secure the wires connections and make sure there are no loose strands or
connections. Put wire connections back inside outlet box and secure the wall control
to outlet box with screws provided. Snug the face plate to wall control. (Fig. 30)
Place the wall control to the outlet box, connect the wires with wire connectors
provided. (Fig. 30)
*Connect the lead wire (HOT) from outlet box to BLACK wire marked “AC IN L” from wall
control.
*Connect the lead wire (LOAD) from outlet box to BLACK wire marked “TO MOTOR L”from
wall control.
*Connect the GROUND wire from outlet box to the GROUND wire from wall control.
HOT
TO 120V SOURCE
Outlet Box
Outlet Box
Switch
Wall Plate
Wall Control
Face Plate
TO LOAD
GROUND
GROUND WIRE
FROM CEILING
BLACK
("AC IN L")
BLACK
("TO MOTOR L")
Fig. 30
Disconnect wires. (Fig. 29)
Fig. 29
