INSTALLING THE SWITCH HOUSING
NOTE:
at the main circuit breaker or by removing the circuit fuse. Turning the power
Step 1. Remove the screw marked with a dot label which preinstalled on the
mounting plate and keep for later use. Loosen the other two (do not remove).
(Fig. 23)
Step 2. Place the two slot holes on the switch housing over the two (2) screws
previously loosened from the mounting plate. Rotate the switch housing until
it locks in place at the narrowed end of the key holes. (Fig. 24)
Step 3. Securely by tightening the 2 screws previously loosened and the one
previously removed. (Fig. 25)

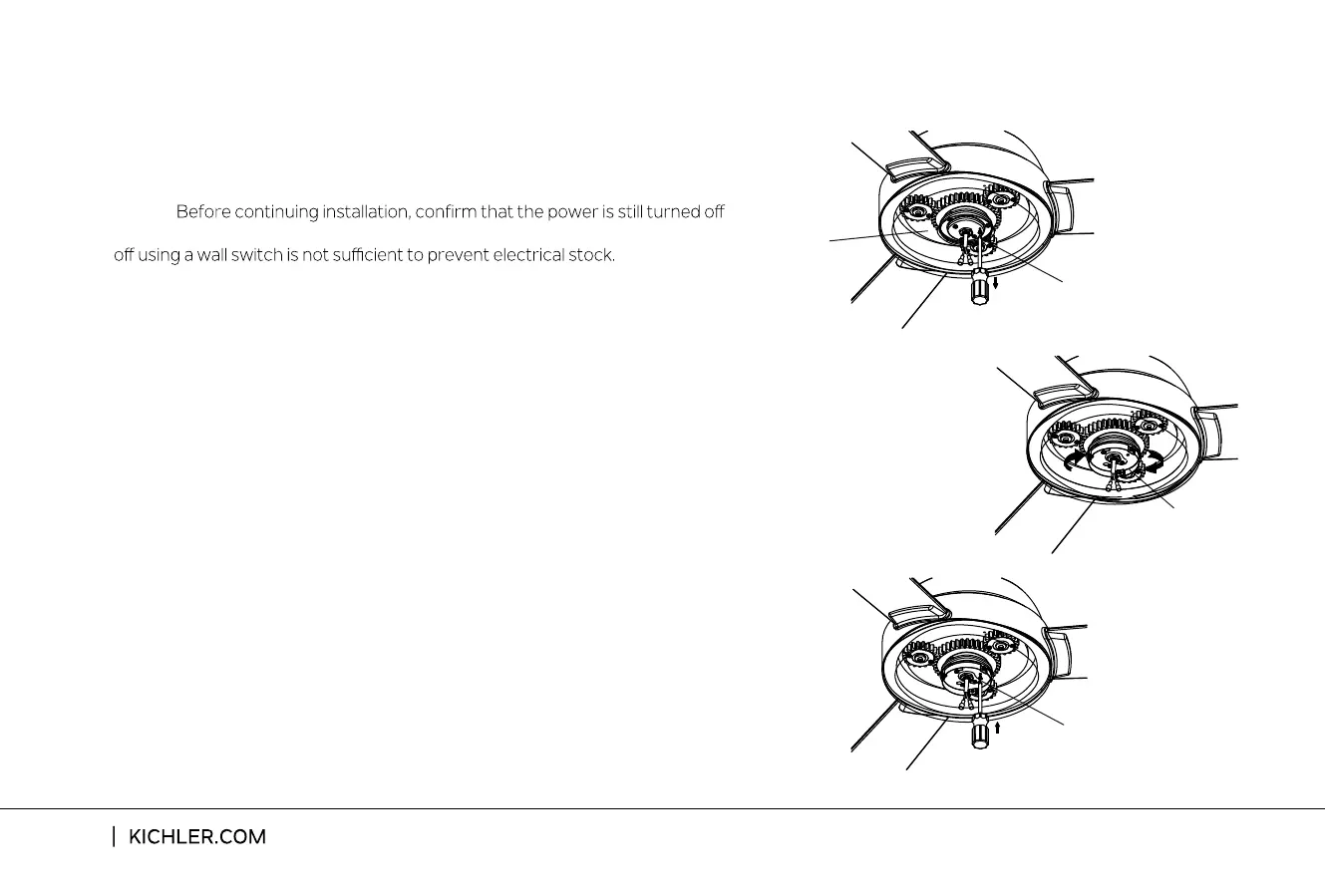

Fig. 23
Fig. 24
14
Fig. 25
Screw
Screw
Mounting
Plate
Switch Housing
