1. Remove lock-up knobs[K] and lock washers[J] from mounting screws[D]. Retain lock-up knobs
and lock washers.
2. Attach mounting strap[C] to outlet box[A] using the strap mounting screws[B]. Mounting strap
can be adjusted to suit position of fixture.
3. Adjust each support cable[G] to the desired length.
NOTE: To shorten the cable, push up on the cable at the cable strain relief[H] attached to
canopy[E] and push cable into the canopy. To lengthen the cable, push up on the pin on the cable
strain relief and gently pull down on the cable to the desired length. Adjust the length of the power
wire and ground wire[F] simultaneously by gently pulling wires out of canopy or pushing wires into
canopy.
4. Cut power wire and ground wire a MINIMUM of 20 inches from the top edge of canopy.
5. Attach the inspection cable[I] to the mounting strap or to the inside of the outlet box and secure
into place to prevent damage to the wires during wiring.
6. Grounding instructions: (See Illus. a or b).
a. On fixtures where mounting strap is provided with a hole and two raised dimples, wrap
ground wire from outlet box around green ground screw, and thread into hole.
b. On fixtures where a cupped washer is provided, attach ground wire from outlet box under
cupped washer and green ground screw, and thread into mounting strap.
If fixture is provided with ground wire, connect fixture ground wire to outlet box ground wire with
wire connector after following the above steps. Never connect ground wire to black or white power
supply wires.
7. Make wire connections. Reference chart below for correct connections and wire accordingly.
Connect Black or Red
Supply Wire to:
Connect White Supply
Wire to:
Black White
*Parallel cord (round &
smooth)
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
without Tracer
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with copper
conductor
Insulated wire (other
than green) with silver
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.) Neutral Wire
8. Raise fixture to ceiling, carefully passing mounting screws through mounting screw holes in
canopy.
NOTE: Make sure wires do not get pinched between mounting strap and canopy or canopy and
ceiling.
9. While holding canopy in place, slip lock washers[J] over threads protruding through holes in
canopy (2 places) and then screw lock-up knobs[K] onto threads protruding through holes in
canopy (2 places) to secure fixture to ceiling. Tighten to secure.
10. Install recommended bulb(s), not supplied.
GREEN GROUND
SCREW
CUPPED
WASHER
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
WIRE CONNECTOR
OUTLET BOX
GROUND
GREEN GROUND
SCREW
FIXTURE
GROUND
a
b
For warranty information please visit: kichler.com/warranty
REV 1-AUG-2023
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST
CAUTIONS
CAUTION – RISK OF SHOCK:
Disconnect Power at the main circuit breaker panel or main fusebox before
starting and during the installation.
WARNING:
1. This fixture is intended for installation in accordance with the National
Electrical Code (NEC) and all local code specifications. If you are not familiar
with code requirements, installation by a certified electrician is recommended.
Failure to adhere to these codes and instructions may result in serious injury
and/or property damage and will void the warranty.
CLEANING:
• Always be certain that electric current is turned o before cleaning.
• Only a soft damp cloth should be used. Harsh cleaning products may damage
the finish.

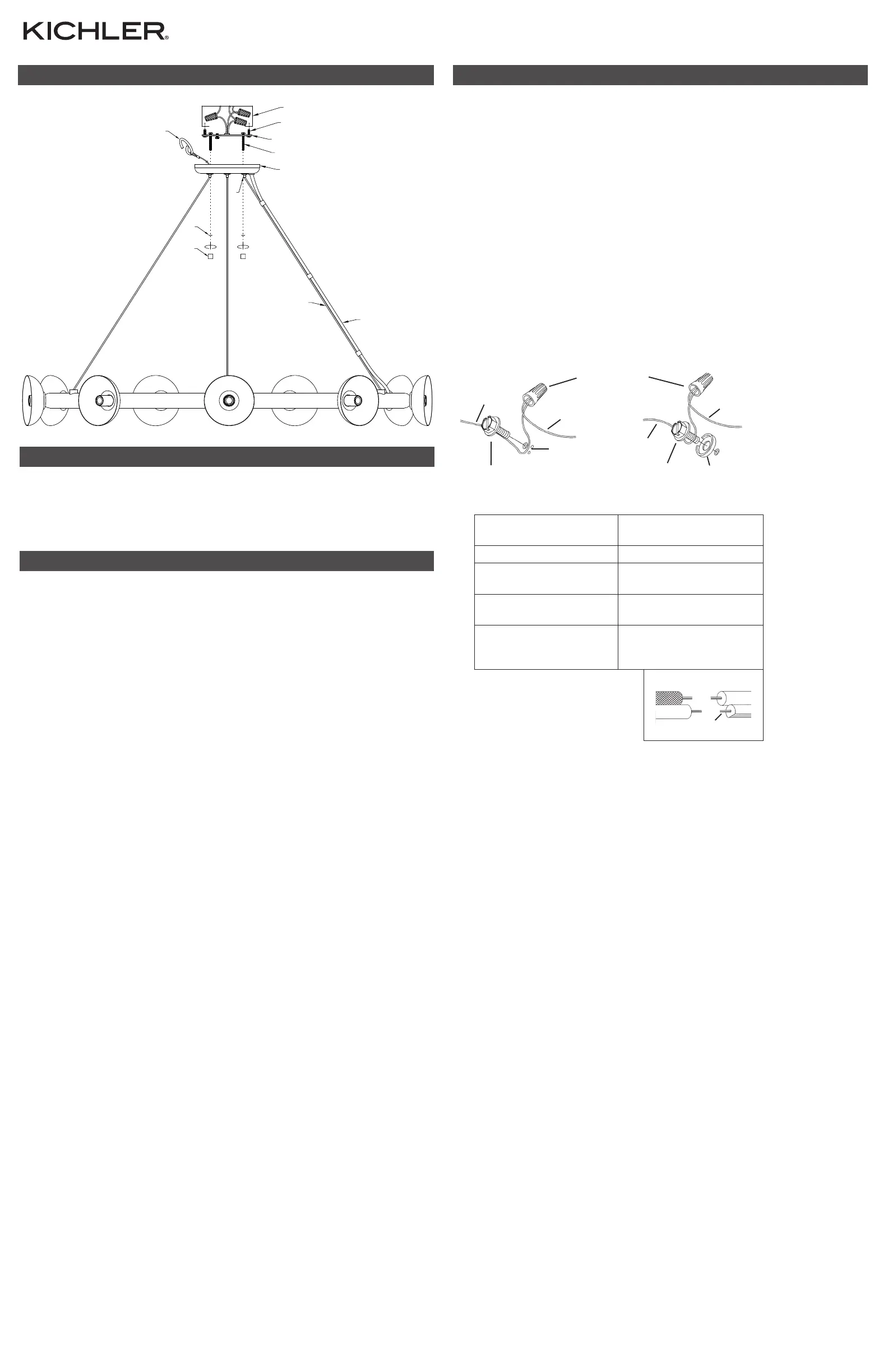

INSTALLATION INSTRUCTIONSFIXTURE DIAGRAM
IS-52642-US
PARTS LIST
[A] Outlet Box (not
supplied)
[B] Strap Mounting Screw
(qty. 2)
[C] Mounting Strap
[D] Mounting Screw (qty. 2)
[E] Canopy
[F] Power Wire and Ground
Wire
[G] Support Cable
[H] Cable Strain Relief
[I] Inspection Cable
[J] Lock Washer (qty. 2)
[K] Lock-up Knob (qty. 2)
F
C
E
D
I
B
A
H
J
G
K
