MAKE THE ELECTRICAL CONNECTIONS
Step 4. If your outlet box has a ground wire (green or bare copper) connect it to
the fan ground wires: otherwise connect the fan ground wire to the mounting
bracket. Secure the wire connection with a plastic nut provided. After connecting
the wires, spread them apart so that the green and white wires are on one side of
the outlet box and black and blue wires are on the other side. (Fig. 14)
NOTE: Carefully tuck the wire connections up into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the
transmitting unit for proper signal transmission between the transmitting unit
and the fan’s receiving unit.
FINISHING THE MOTOR INSTALLATION

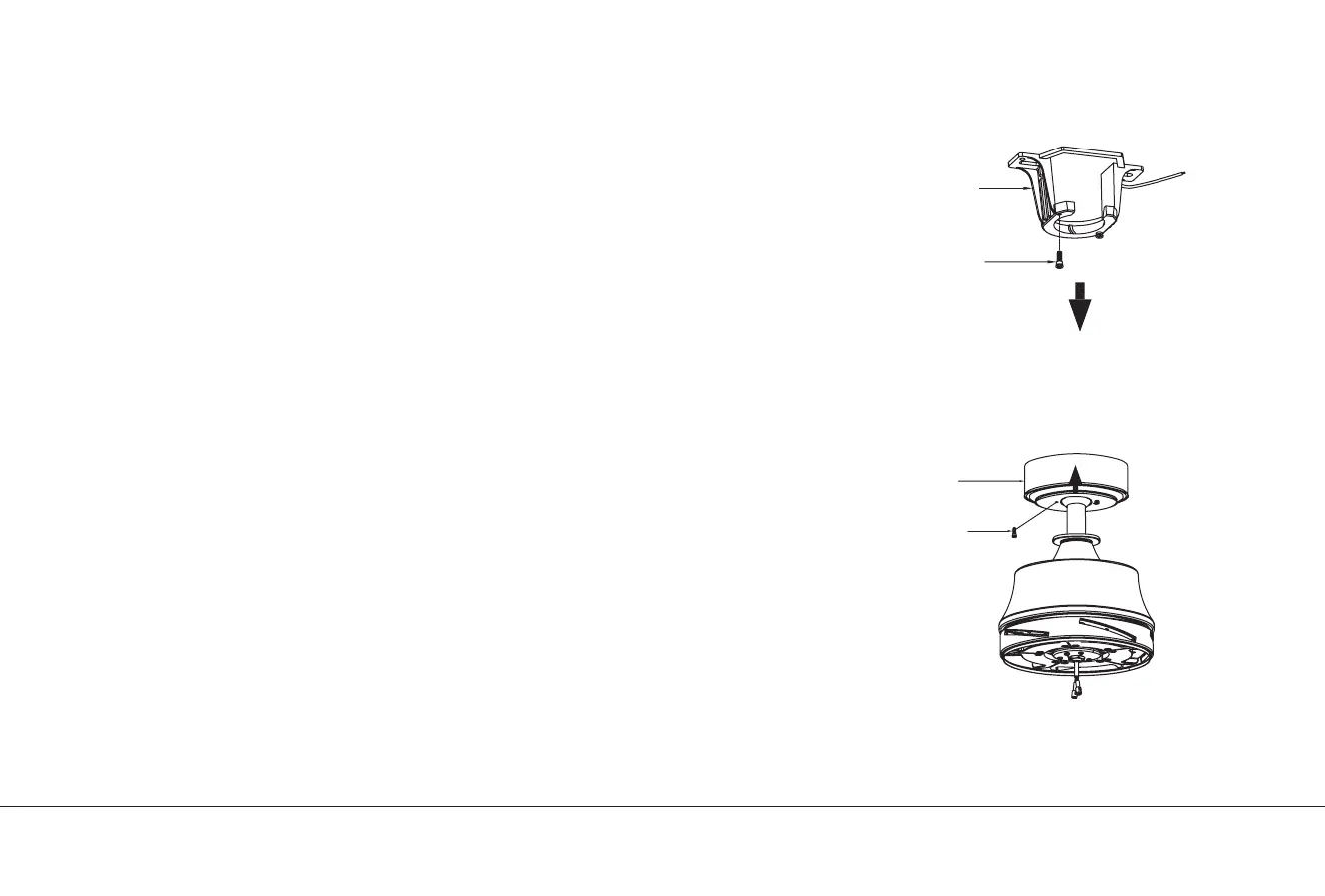

Step 1. Remove one of the two shoulder screws in the mounting bracket. Loosen
the second shoulder screw without fully removing it. (Fig. 15)
Step 2. Assemble canopy by rotating key slot in canopy over shoulder screw in
mounting bracket. Reinstall the shoulder screw that was previously removed,
then retighten two shoulder screws securely. (Fig.16)
Mounting Bracket
Fig. 15
Fig. 16
Shoulder Screw
Canopy
Shoulder Screw
52" Maeve LED | 11
