ELECTRICAL CONNECTIONS (CONTINUED)
Step 2. Motor to Receiver Electrical Connections: (Fig. 16) Connect the
black wire from the fan to the black wire marked “TO MOTOR L” on the
receiver. Connect the white wire from the fan to the white wire marked “TO
MOTOR N” on the receiver. Connect the blue wire from the fan to the blue
wire marked “FOR LIGHT” on the receiver. Secure all the wire connections
with the plastic wire nuts provided.
Step 3. (Fig. 16) Receiver to House Supply Wires Electrical Connections:
Connect the black (hot) wire from the ceiling to the black wire marked “AC
in L” from the receiver. Connect the white (neutral) wire from the ceiling
to the white wire marked “AC in N” from the Receiver. Secure the wire
connections with the plastic wire nuts provided.
Step 4. (Fig. 16) If your outlet box has a ground wire (green or bare copper)
connect it to the fan ground wires; otherwise connect the hanging bracket
ground wire to the mounting bracket. Secure the wire connection with a
plastic nut provided. After connecting the wires, spread them apart so that
the green and white wires are on one side of the outlet box and black and
blue wires are on the other side. Carefully tuck the wire connections up
into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the
Remote Transmitter for optimal signal transmission between the wall
control and the fan’s receiving unit.
Remember to cut o excess lead wire and safety cable from fan body
before wiring in order to install receiver and canopy easily.

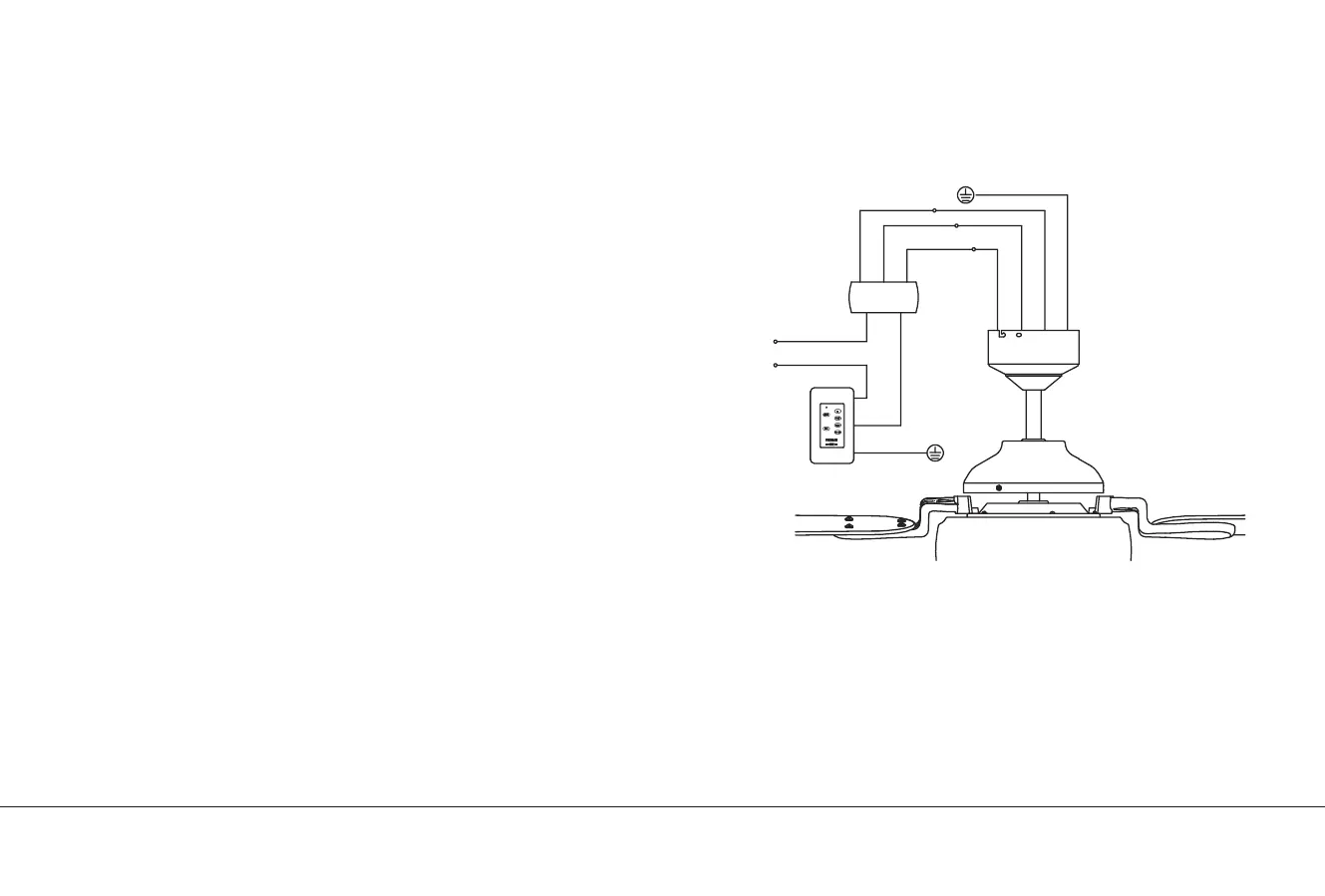

Fig. 16
REMOTE
CONTROL
RECEIVER
GREEN
TO MOTOR N
TO MOTOR L
FOR LIGHT
WHITE
BLACK
BLUE
BLUE
BLACK
WHITE
GREEN
GREEN
AC 120V
AC IN N
AC IN L
AC IN L
TO MOTOR
60" Humble | 13
