56" Guardian | 11
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring. Use the wire
connectors supplied with your fan. Secure the connectors with electrical tape. Make
sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper
wiring.

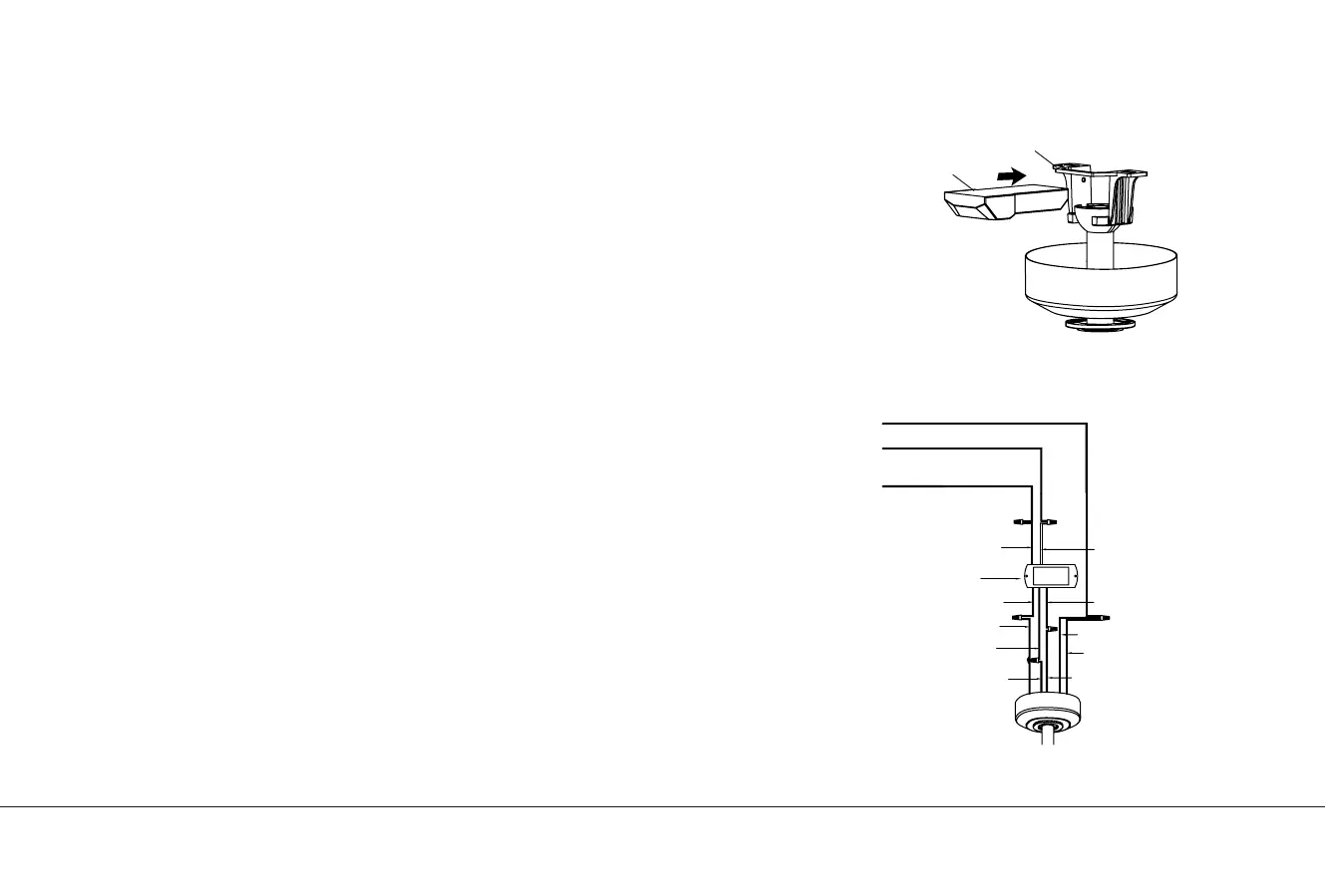

Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of
ceiling. (Fig. 13)
Step 2. Motor to Receiver Electrical Connections: Connect the BLACK wire from the fan
to BLACK wire marked “TO MOTOR L” from the receiver. Connect the WHITE wire from
the fan to the WHITE wire marked “TO MOTOR N” from the receiver. Connect the BLUE
wire from the fan to the BLUE wire marked “FOR LIGHT “ from the receiver. Secure all
the wire connections with the plastic wire connectors provided. ( Fig. 14)
Step 3. Remote Receiver to Outlet Box Electrical Connections: Connect the BLACK (hot)
wire from the ceiling to the BLACK wire marked “AC IN L” from the receiver. Connect
the WHITE (Neutral ) wire from the ceiling to the WHITE wire marked “ AC IN N” from
the receiver. Secure all the wire connections with the plastic wire connectors provided.
( Fig. 14)
Fig. 14
Fig. 13
Mounting Bracket
Receiver
Green or bare copper (ground)
AC IN N (White)
White (“TO MOTOR N”)
Ground wire
White (Neutral)
AC IN L (Black)
Receiver
Black (“TO MOTOR L”)
Black (motor)
Blue (FOR LIGHT)
Blue (for light)
Black (“AC IN L”)
White (“AC IN N”)
Ground wire
