54" Fit | 19
OPERATING INSTRUCTIONS
Select a location to install your CoolTouch
TM
wall plate. You can replace an existing
wall switch, or install the wall plate on ANY flat surface.
Option 1: Install the wall plate using an existing wall switch outlet box.
CAUTION: Switch installation must comply with all local and national electric code.
Make sure the electrical power is TURNED OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and the old switch from the wall outlet box.
Wire nut the BLACK leads (hot) together and push back inside the outlet box. (Fig.27)
Step 2. Install the metal plate and the CoolTouch
TM
wall plate to the existing wall
outlet box with 2 screws provided. lnsert the two plastic plugs into the wall plate.(Fig.28)
Option 2: Install the wall plate on ANY flat surface.
Step 1. Select the desired location and use the CoolTouch
TM
wall plate to mark the
location for the mounting holes.
Step 2. Use the drywall anchors and screws provided to finish the installation.
Step 1. Insert the transmitter into the wall plate by inserting the bottom of the transmitter
first and then pressing the top of the transmitter into the pocket. The transmitter will fully
function from this location or you can remove the transmitter and use it as a hand held
device.(Fig.29)
Step 2. To remove the transmitter from the wall plate, push the release button and the
transmitter will fall into your hand.
INSTALLING THE COOLTOUCH TRANSMITTER WALL PLATE
INSTALLING THE TRANSMITTER
WARNING: All wiring must be in accordance with the National Electrical
Code and local electricalcodes. Electrical installation should be performed
by a qualifed licensed electrician.

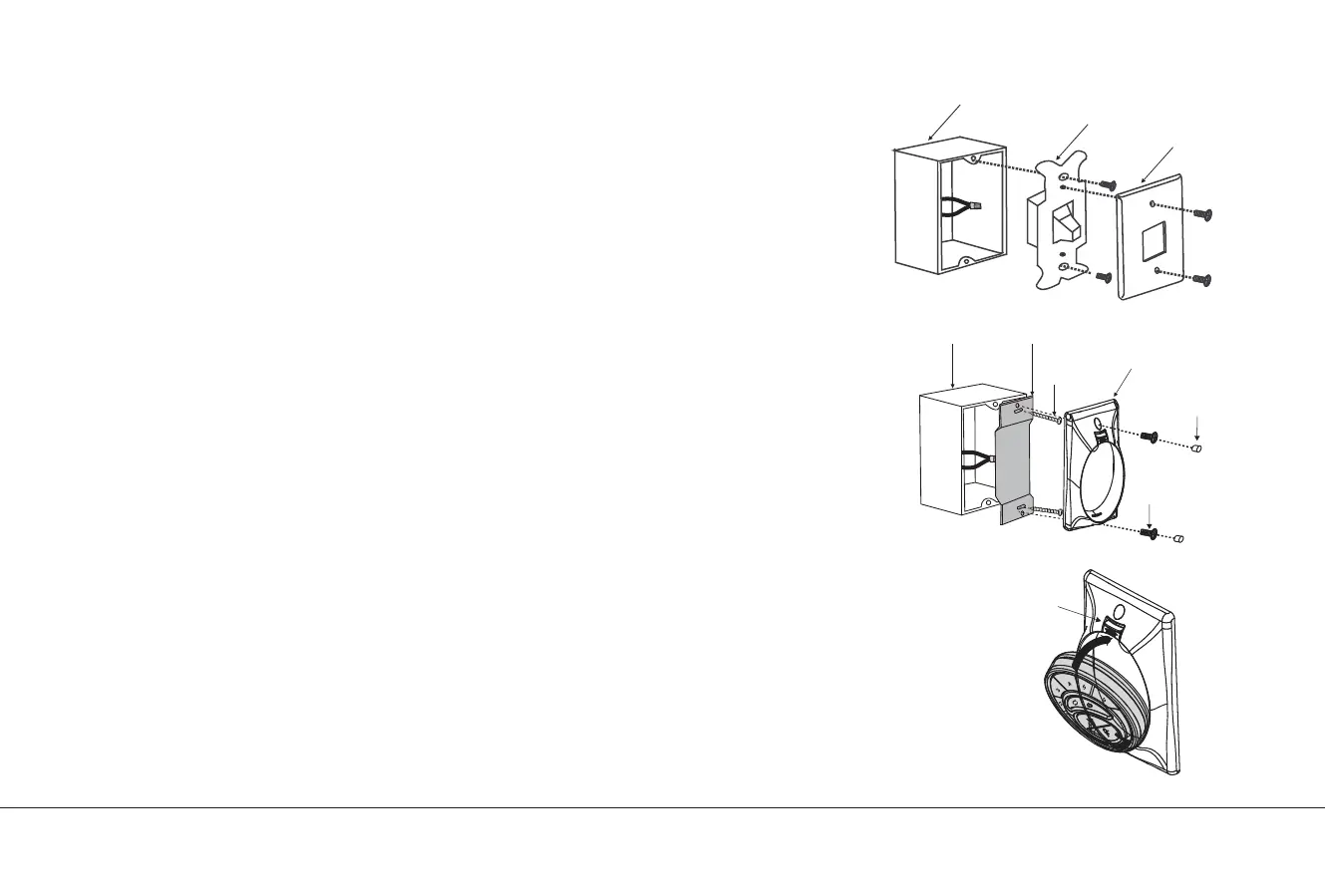

Fig. 27
Fig. 29
Fig. 28
Outlet Box Metal plate
Screws
Screw
CoolTouch
TM
Wall Plate
Plastic Plug
Outlet Box
Switch
Wall Plate
Release
Button
